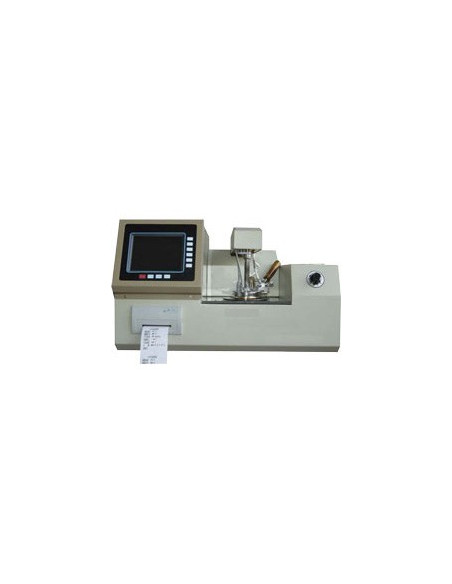

FP-26D Automatic Flash Point Tester (closed cup)

Name: FP-26D Automatic Flash Point Tester (closed cup)
Brand: MRC
SKU: FP-26D

Reference: FP-26D - Manufacturer: MRC

The instrument is designed to determine the “closed cup flash point” of petroleum products, which is expressed as the lowest temperature when a sample is heated in a “closed cup” under the stipulated condition until the mixture of its vapor and air contacts flame and appears flash.

1. Power supply: AC 220V±10%, 50 Hz;
2. Temperature measurement:
(1) Full scale: room temperature～300℃;
(2) Repeatability: ≤2℃;
(3) Reproducibility: ≤4℃;
(4) Resolution: 0.1 ℃;
(5) Accuracy: 0.5%;
3. Basic parameters:
(1) Temperature rising speed: as per GB/T261-2008;
(2) Ignition mode: Electron device for ignition; gas flame for flame application;
4. Working environment:
(1) Ambient temperature: 10～40℃;
(2) Relative humidity: ≤80％;
5. Total power consumption: not more than 300 W;
Referrence standard: 1502791, ASTMD93, IP34

Model	FP-26D
Power supply	AC 220 V±10%, 50 Hz
Temperature measurement
Repeatability	≤ 2°C
Reproducibility	≤ 4°C
Resolution	0.1°C
Precision	0.5%
Basic parameters
Temperature rising speed	as per GB/T261
Ignition mode	gas flame is 3-4mm
Ambient temperature	10~40°C
Relative humidity	≤ 8%
Total power consumption	not more than 300W
