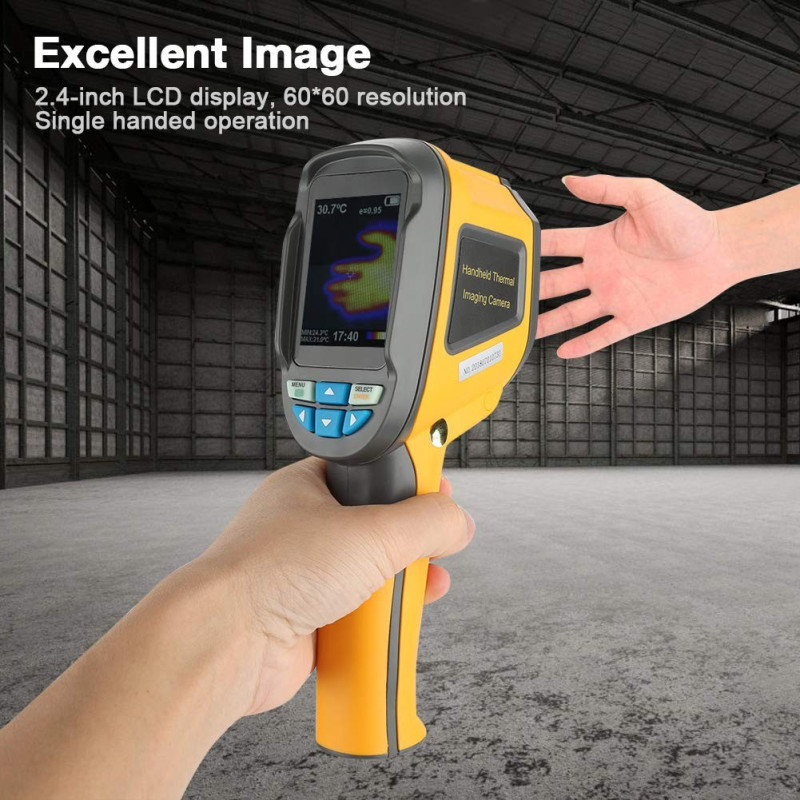

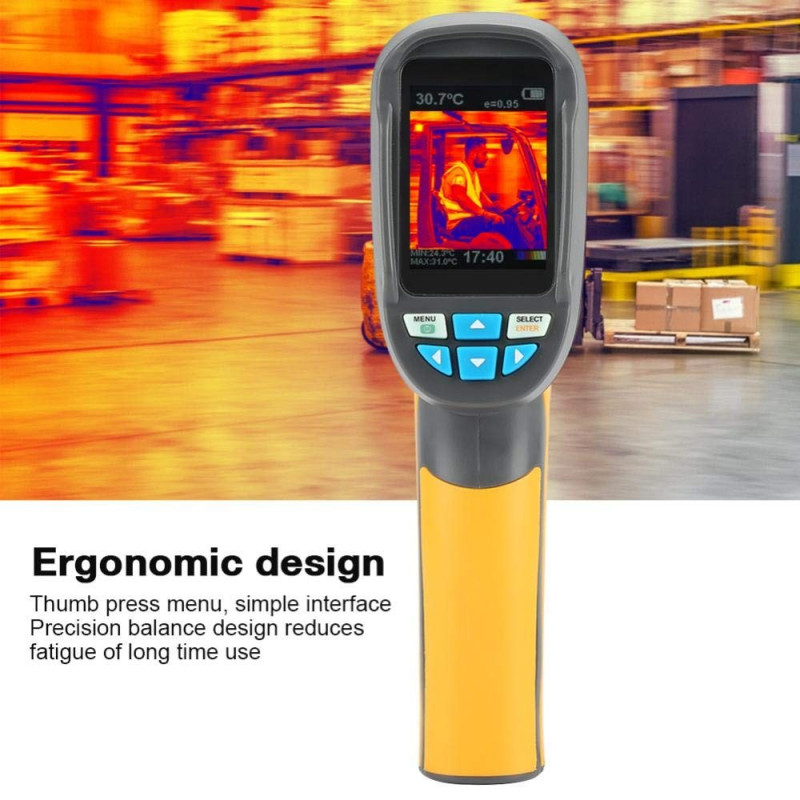

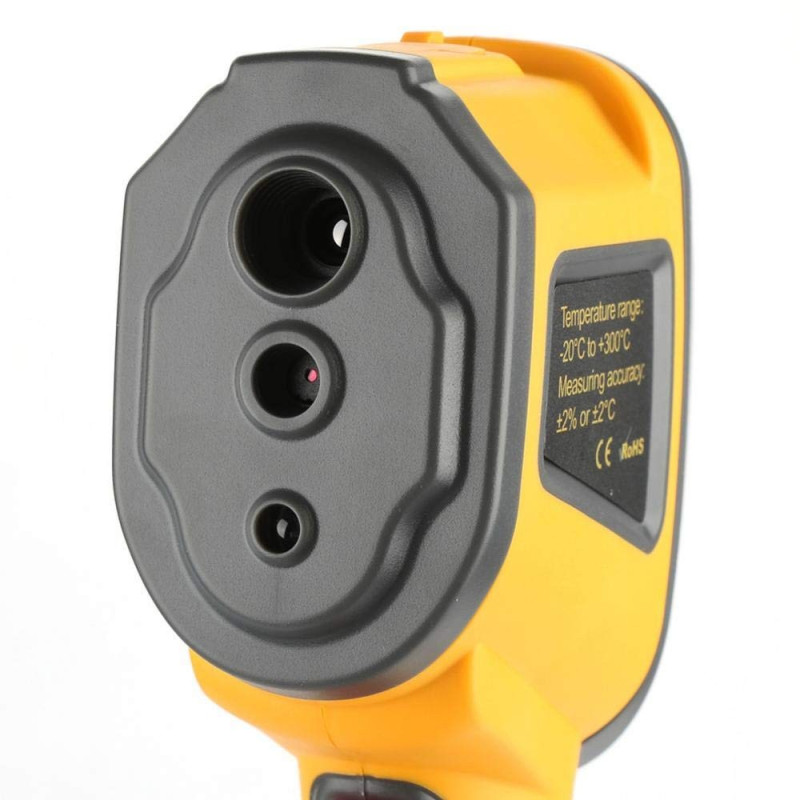

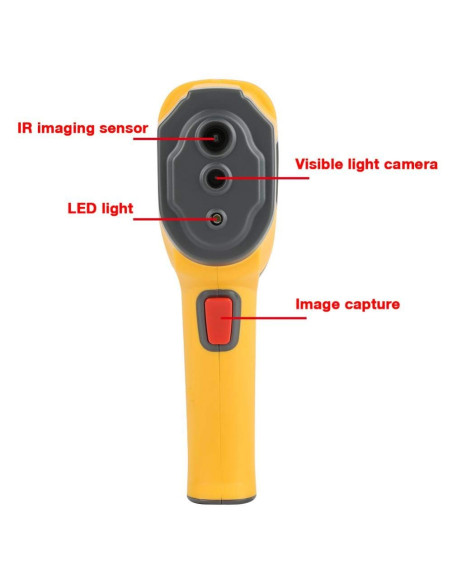

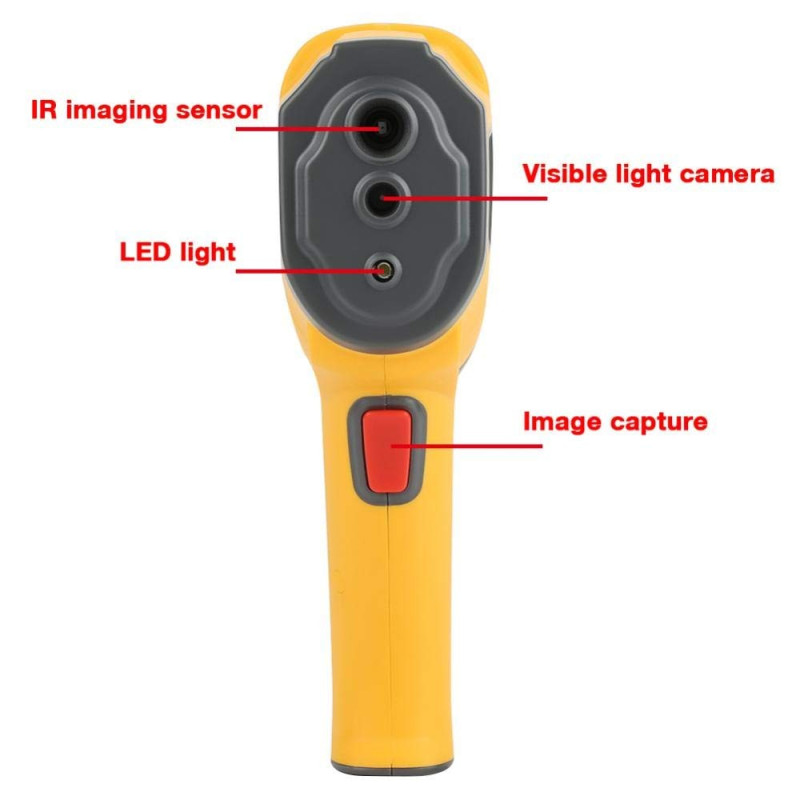

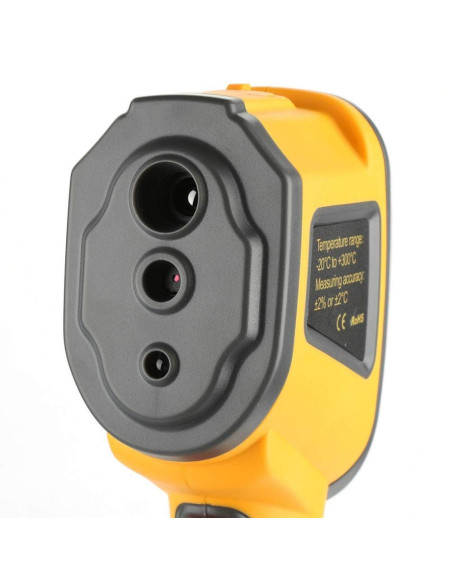

AO-HT-02D CÂMERA TÉRMICA
The thermographic camera AO-HT-175 allows to identify those points whose poor insulation cause heat losses.
They can also be used to detect leaks in pipes, dampness, check heating systems, etc.
This infrared thermal imager can mix visible and infrared images.
Infrared image resolution / visible resolution: total pixel 3600/60 * 60.
This infrared imaging equipment is professional, accurate and efficient.
Widely used for automobile engine overhaul, transformer room line maintenance, air conditioning maintenance, etc.
Infrared Imager can convert thermal image to visible image and help to quickly find the problem.

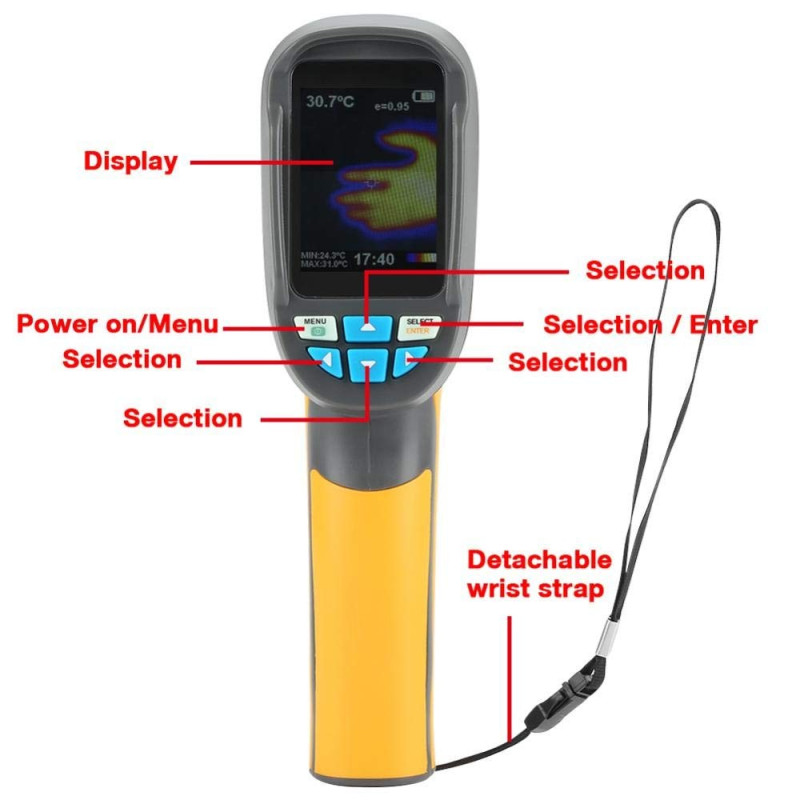

Screen: 2.4 inch color screen
Resolution: 32 * 32
Total Pixel: 1024
FOV / shortest focal length: 33 ° × 33 °
Thermal sensitivity: 0.15 ℃
Measurement mode: Infrared focal plane measurement temperature
Temperature range: -20 ℃ -300 ℃ (-4 ℉ -572 ℉)
Measurement accuracy: ± 2% digital / ± 2 ℃
Wavelength range: 8-14 μm
Image frequency: 6HZ
Emissivity: adjustable from 0.1 to 1.0
Focus mode: fixed
Palette: iron color, rainbow, black and white
Image storage: SD card (4G)
File format: bmp
Setting control: Unit setting / Language / date and time format / Auto power off
Battery type: 4 batteries * AA alkaline batteries
Adapter voltage: DV 5V output
Operating temperature: 0 ℃ -50 ℃
Storage temperature: -40 ℃ -70 ℃
Humidity: <90% RH
Vibration: 2G, IEC60068-2-6
Drop resistance: 2m

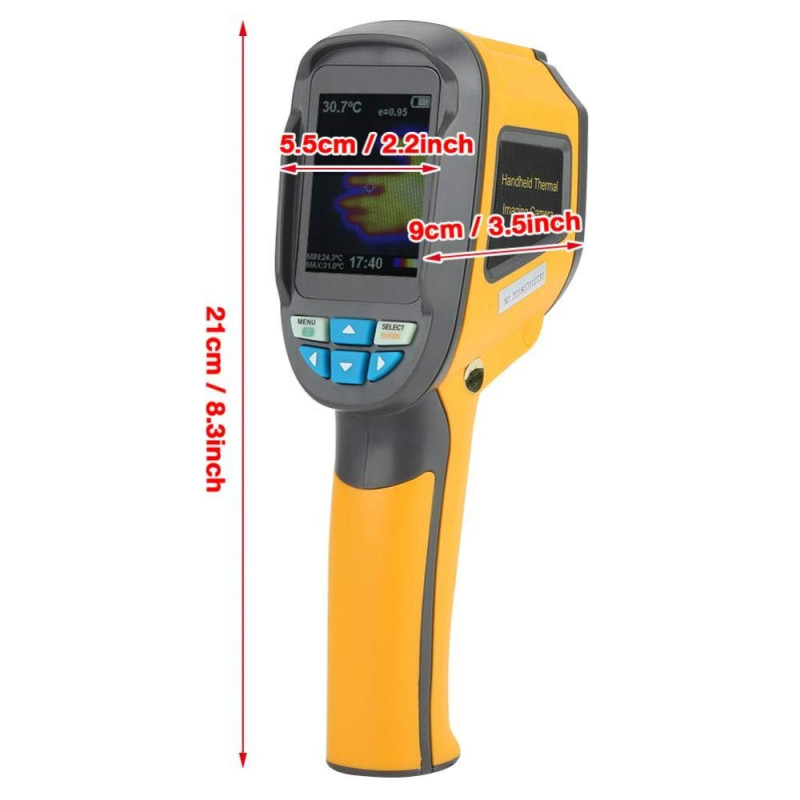

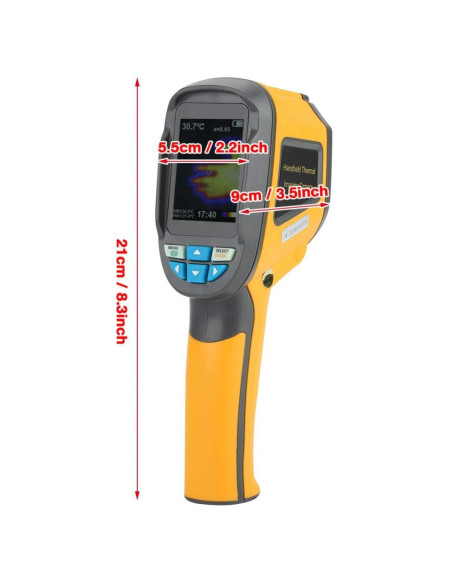

Size: 230 × 80 × 52mm
Weight: 410g
- Type of Instrument
- Infrared camera
- The instrument measures:
- Non-contact temperature
