RTR-500DC - Portable Data Collector

Name: RTR-500DC - Portable Data Collector
Brand: TandD
SKU: RTR-500DC
Price: 299 EUR
Availability: InStock

Reference: RTR-500DC - Manufacturer: TandD

€299.00

Tax excluded Envío: 1 a 3 semanas

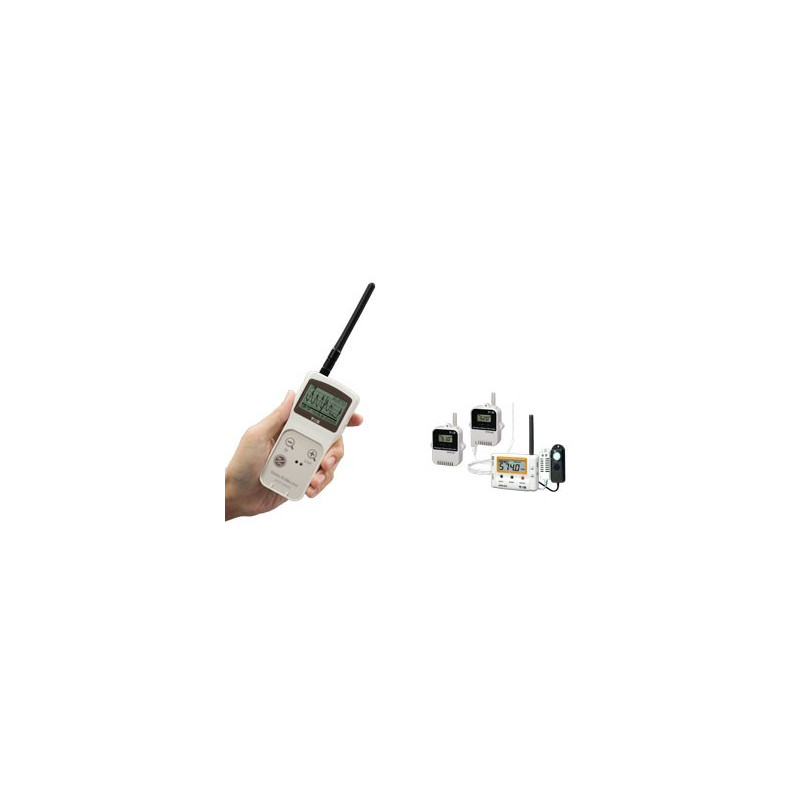

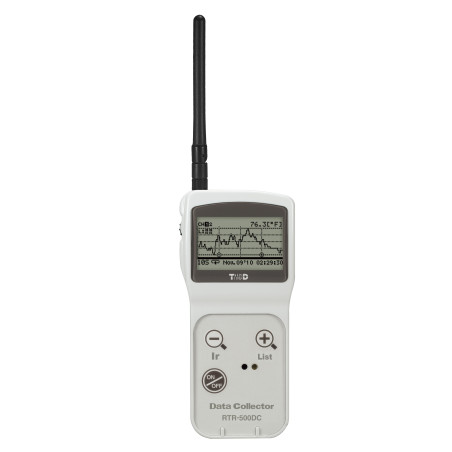

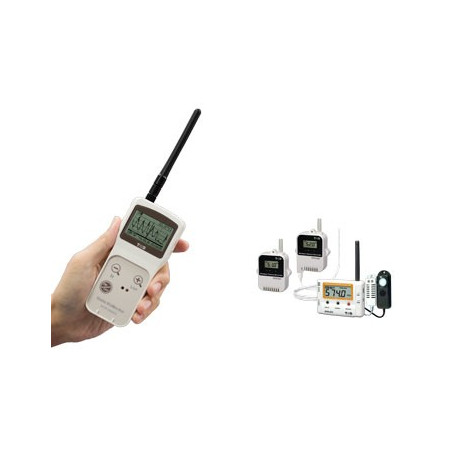

The RTR-500DC is a user-friendly wireless communication Data Collector designed for hand-held portability.
By carrying out wireless communication with Data Loggers, it is possible to start and stop recording and collect data from loggers placed in remote locations without having to manually gather them. The collected data can then be easily displayed in graph form in the LCD display of the RTR-500DC, enabling the immediate on-the-spot checking of data.

Application Examples

For downloading recorded data and monitoring current readings for moving or rotating Remote
Unit(s) on production lines.
For downloading recorded data and monitoring current readings for Remote Unit(s) in cargo compartment(s) using a Base Unit in the truck cabin.

Compatible Devices	Remote Units: RTR-501 / 502 / 503 / 507 / 574 / 576 / 505-TC / 505-Pt / 505-V / 505-mA / 505-P (Including L Type and H Type) Repeater: RTR-500
Maximum Number of Registrations	Remote Units: 32 units *1 x 7 groups Repeaters: 15 units x 7 groups
Storage Capacity	When downloading units at full logging capacity: 15 units of RTR-501 / 502 / 503 / 505 / 507 7 units of RTR-574 10 units of RTR-576 When downloading from units of any type containing small amounts of data, it can store and manage up to 250 download sessions.
Communication Interfaces	< Between Base Unit(s) - (Repeaters) - Remote Unit(s) > • Wireless Communication (short range radio communication) FCC Part15 Section247 / IC RSS-210 (Frequency Range: 902 to 928MHz, RF Power: 7 mW) ETSI EN 300 220 (Frequency Range: 869.7 to 870MHz, RF Power: 5 mW) • Optical Communication (proprietary protocol) (With compatible Remote Units except RTR-574 and RTR-576) • Serial Communication (RS-232C) 2 (With RTR-574 and RTR-576) < Between Base Unit - PC >* • USB Communication • Serial Communication (RS-232C) *3
Wireless Transmission Range	Approx. 150 meters (500 ft) if direct and unobstructed
Communication Time	Data Download Time from Remote Unit (for 16,000 readings) • Via wireless communication: About 2 min. The same amount of time will be necessary for each Repeater. • Via optical communication: About 3 min. • Via serial communication: About 22 sec.
Power	AAA Alkaline Battery (LR03) x 2 AAA Ni-MH batteries, AC adaptor (AD-06A1 or AD-06C1), or USB bus power may also be used.
Battery Life *4	Expected battery life with 2 AAA alkaline batteries: • Monitoring Current Readings and Remote Unit Status: 96 hours of continuous use (For communication without Repeaters at 60 second intervals) • Monitoring Radio Waves: 32 hours of continuous use • Downloading Data via Wireless Communication: 730 consecutive sessions (When downloading RTR-501 at full logging capacity, without Repeaters, with LCD backlight Off )
Dimensions	H 125 mm x W 58 mm x D 26.3 mm (excluding antenna) Antenna Length: 109 mm
Weight	Approx. 127 g (including batteries)
Operating Environment	Temperature: 0 to 50°C Humidity: 90 %RH or less (no condensation)
Accessories	AAA Alkaline Battery (LR03) x 2, USB Mini-B Cable (US-15C), Software (CD-ROM), Manual (Warranty Included)
1: For RTR-505, RTR-574, and RTR-576, registration of one unit will be counted as two units. 2: Optional communication cable TR-6C10 is required for serial communication with RTR-574 and RTR-576. 3: Customers wishing to write their own software, please contact your local distributor for the serial communications protocol specifications. (Note: Optional serial communication cable TR-07C is also required.) 4: Battery life varies depending upon multiple factors including ambient temperature, frequency of communication, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.

Dimensiones

RTR-500DC

1: Conector de antena
2: Dial
3: Pantalla LCD
4: Botón List (lista)
5: Botón Collect (recopilar)
6: Botón ON/OFF (encendido/apagado)
7: Zona de comunicación óptica
8: Zona con hendiduras
9: Antena
10: Puerto de cable de comunicación USB
11: Puerto de cable de comunicación RS-232C
12: Puerto para el adaptador de CA
13: Tapa de las pilas
