RK900-01 Automatic weather station for PV plants
Certification: CE-EMC, CE-LVD, RoHS, ISO9001
Features:
Multi-parameter monitoring
High measurement accuracy
Strong environmental adaptability
Automatic data backup

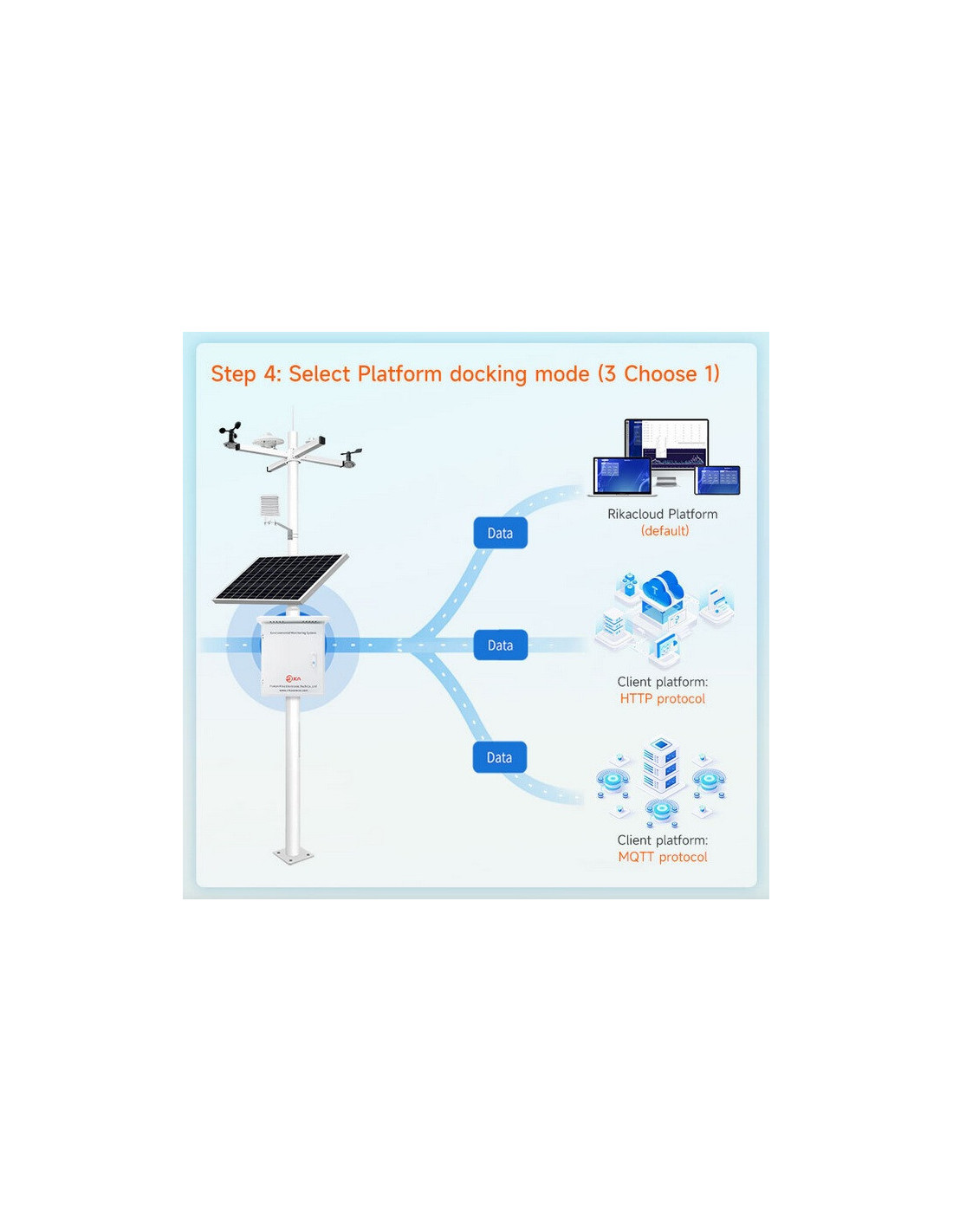

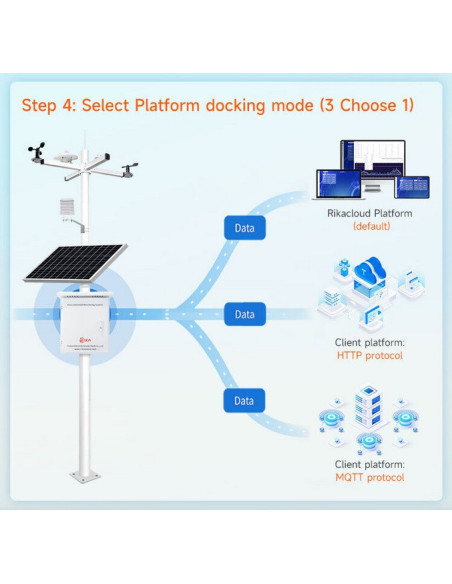

Multiple upload protocols are supported
Recorder supports remote updates

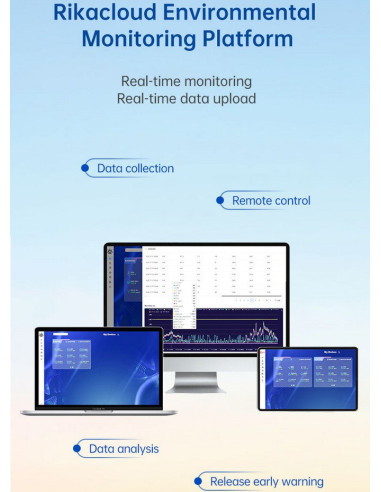

Support for the API interface
Built-in surge protection

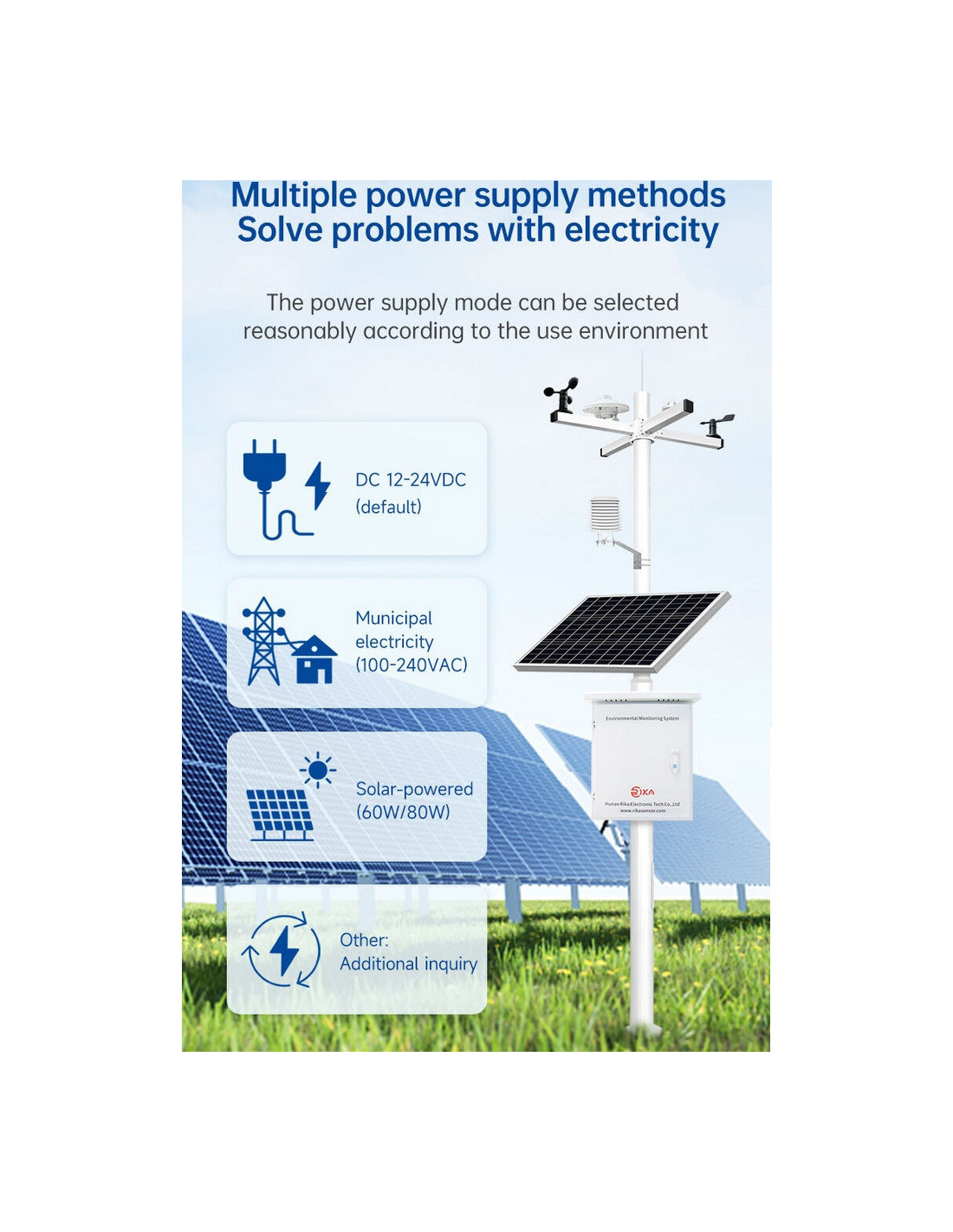

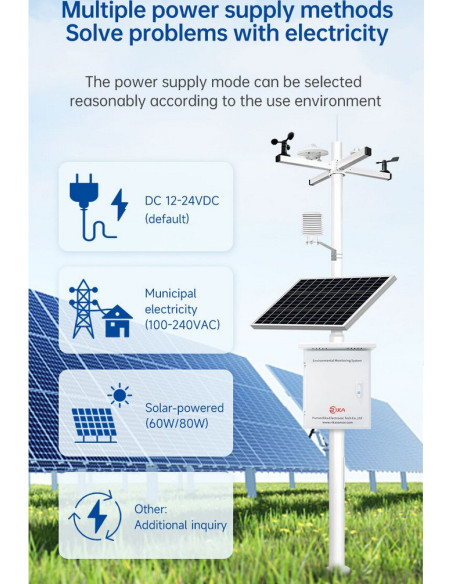

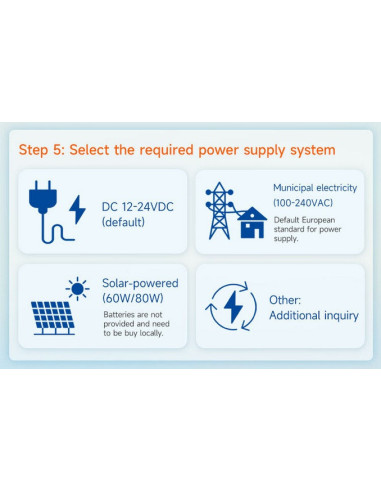

Support multiple power supply modes
Easy to operate

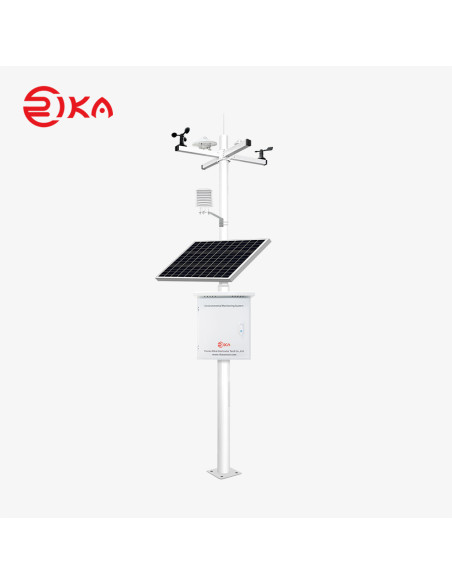

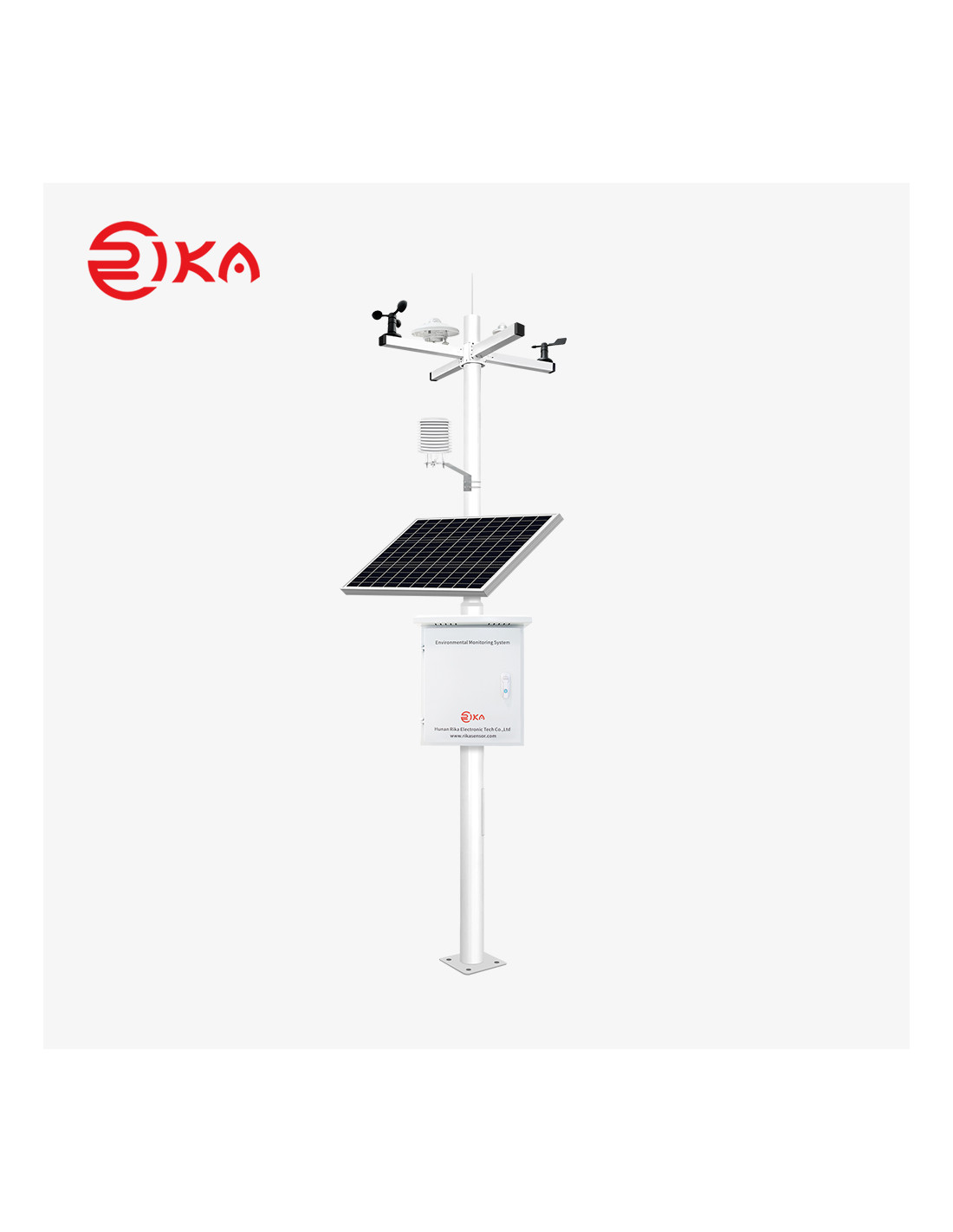

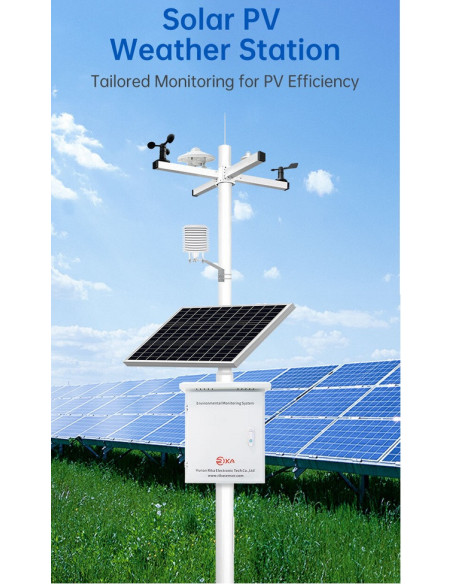

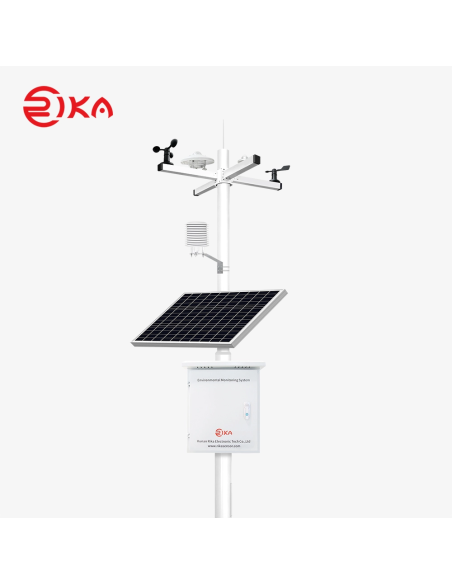

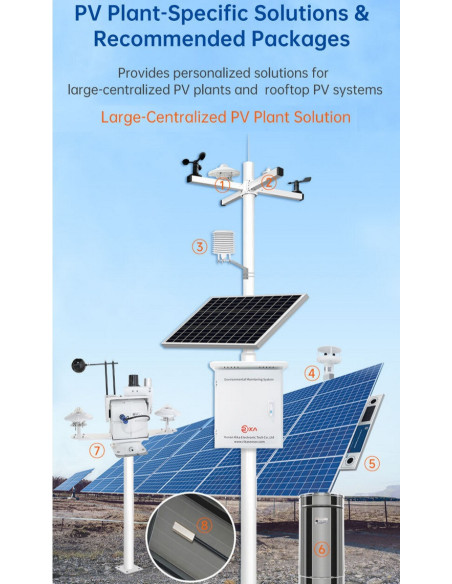

RK900-01 is an automatic weather station for photovoltaic plants designed to monitor in real time the environmental conditions that affect solar installation performance and operational safety. The system integrates high-precision meteorological sensors, a data logger, and IoT communications for continuous data acquisition, analysis, display, storage, and transmission.

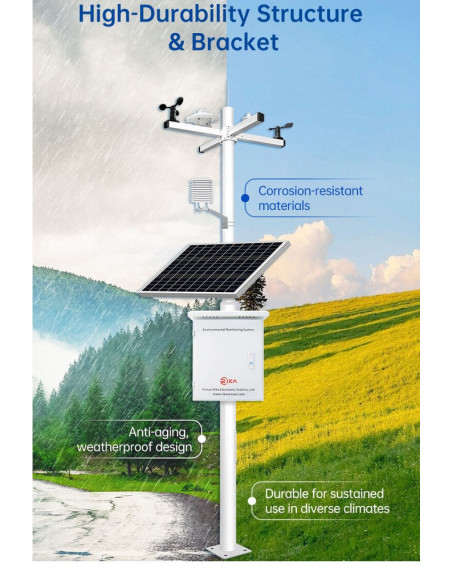

According to the manufacturer, the solution is intended for solar parks and PV applications where critical environmental parameters must be recorded to optimize energy efficiency, supervise field behavior, and maintain reliable operating history. Key features include high accuracy, strong resistance to harsh environments, convenient data download, automatic storage and backup, optional solar power supply, and robust all-metal mounting construction.

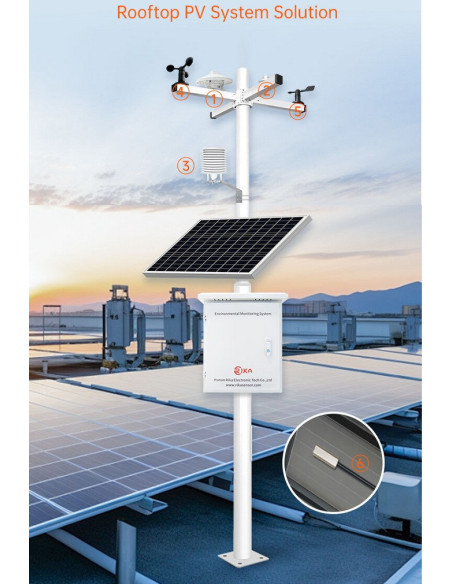

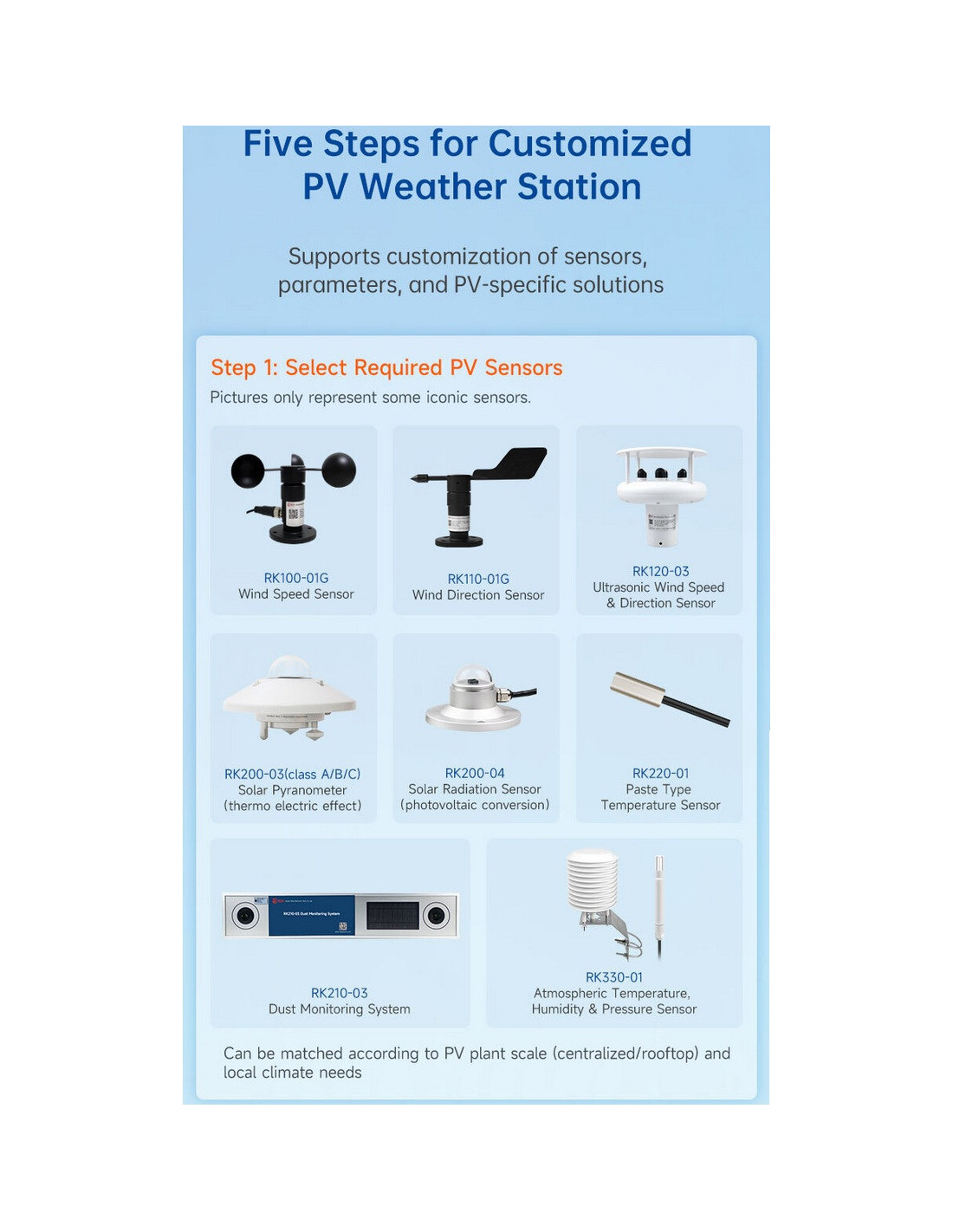

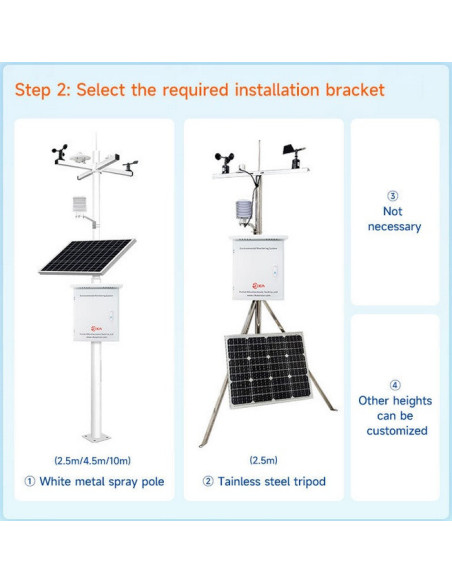

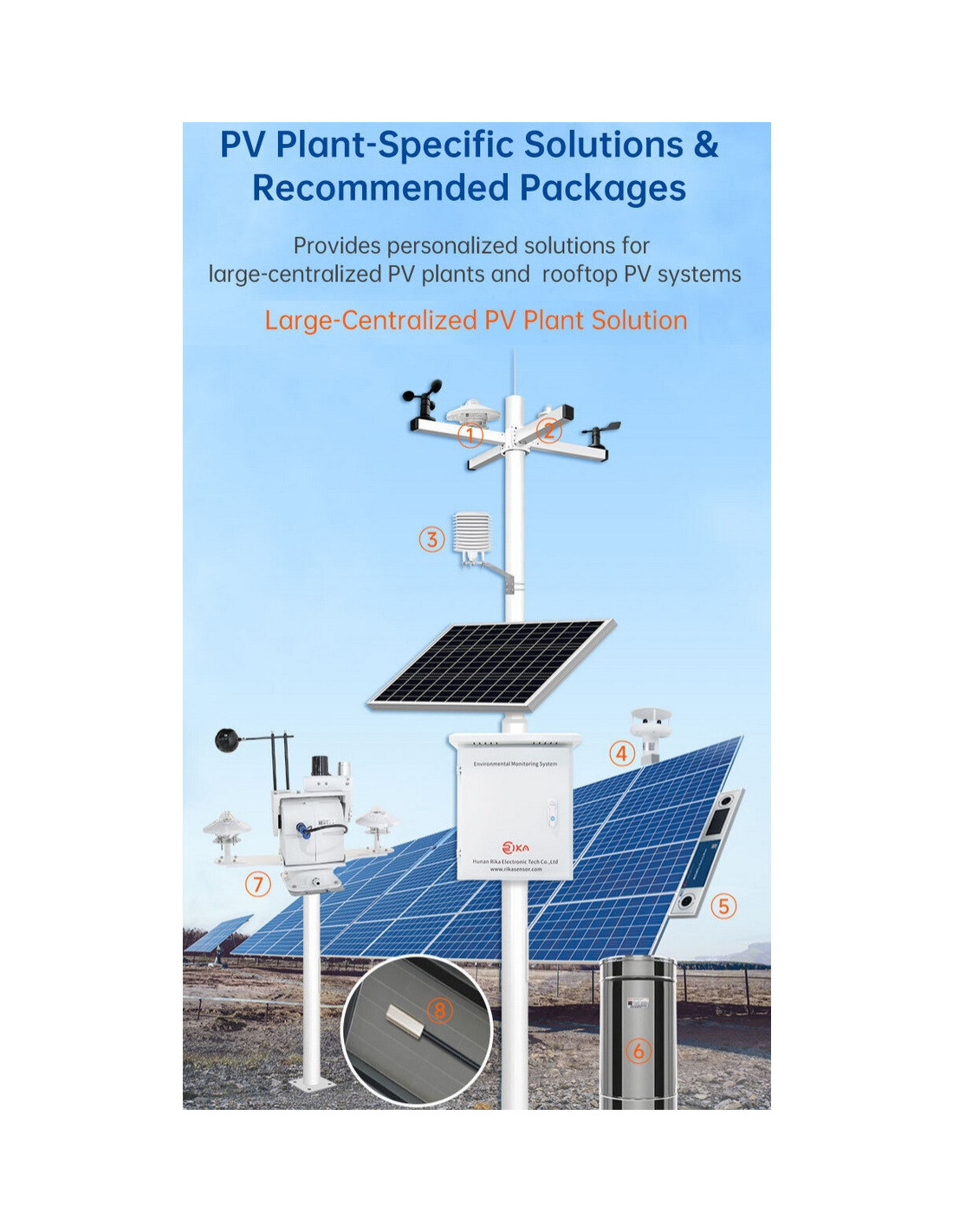

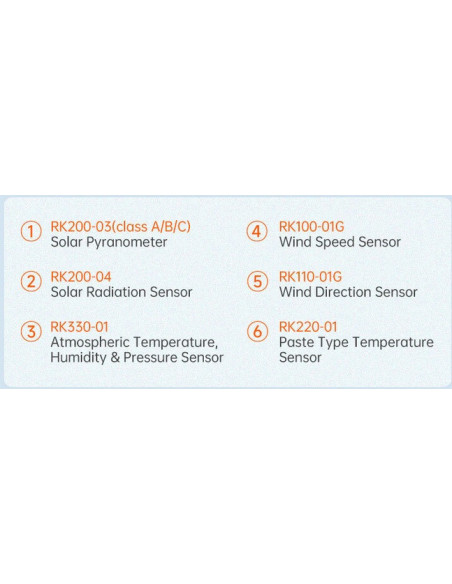

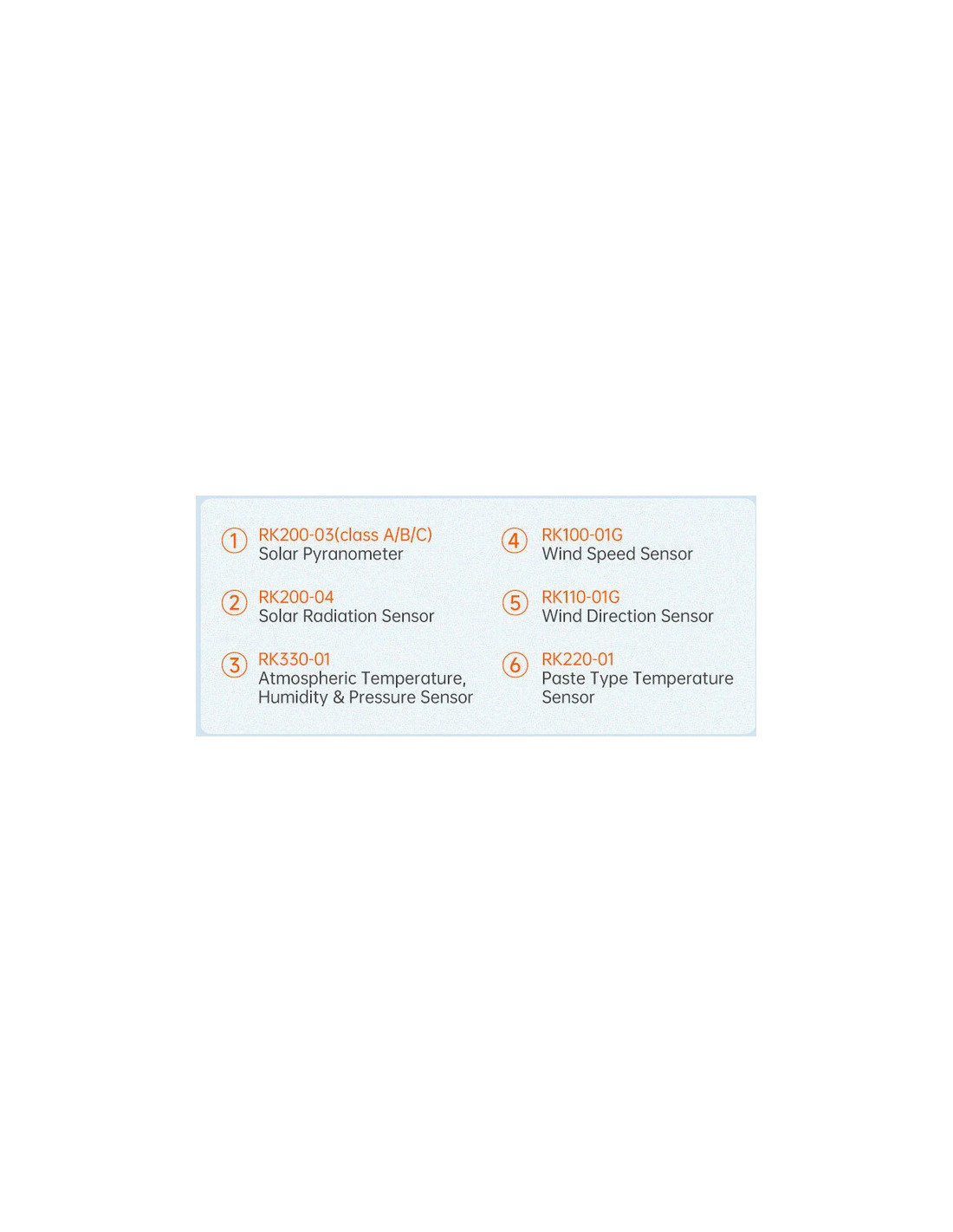

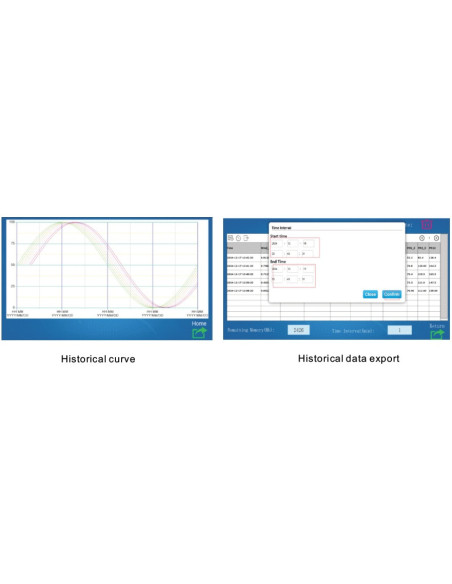

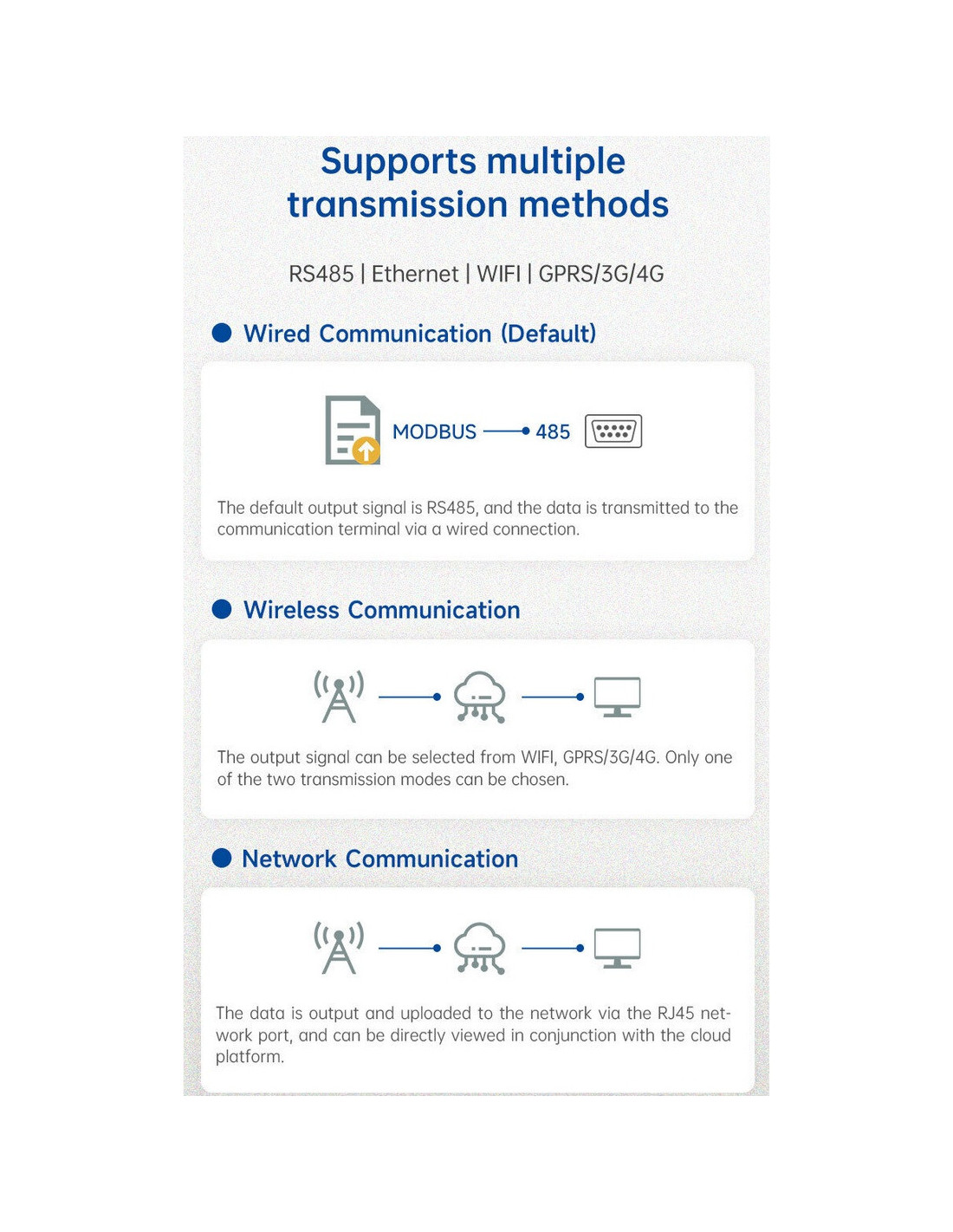

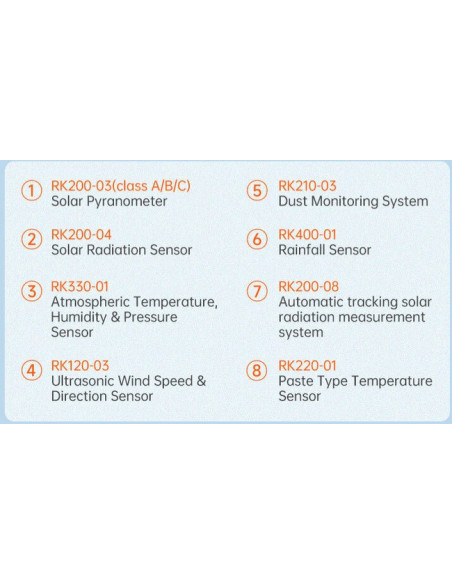

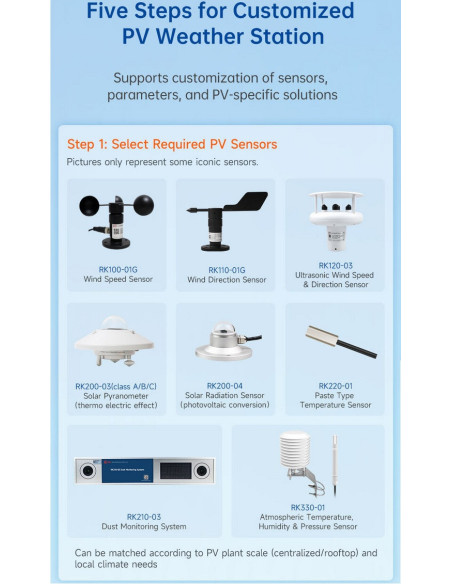

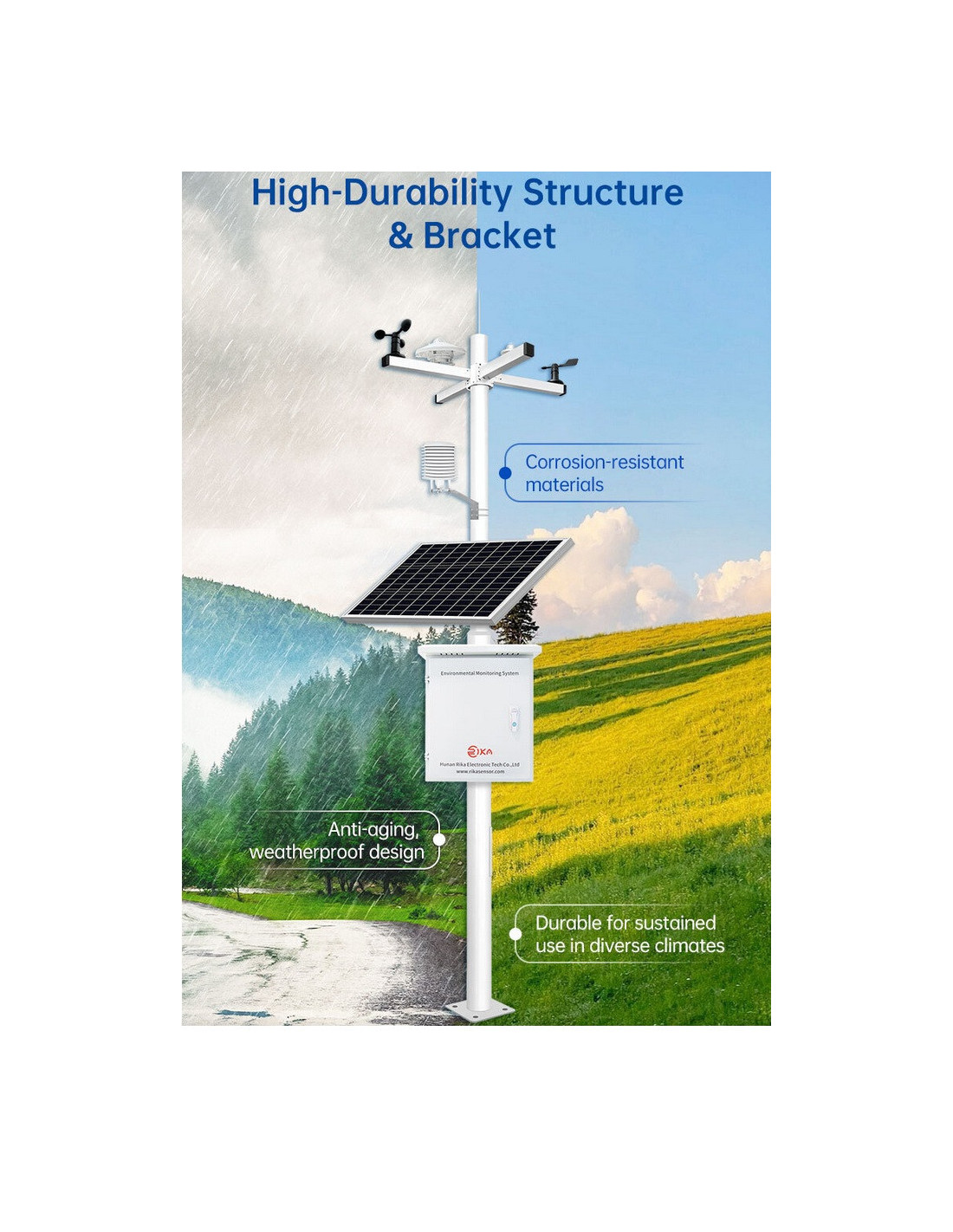

The configuration can include a meteorological data logger with computational analysis, 7-inch LCD screen, and local history download; RS485, 4G, WiFi, or Ethernet communication gateway; sensors and cabling for wind, temperature, humidity, and solar radiation; multilayer radiation shield; protective box for the logger, battery, and electronics; optional solar power system; and vertical mast with lightning protection.
Declared applications: agriculture, solar photovoltaic industry, hydrological monitoring, highways and railways, meteorological research, and outdoor environments.
Main parameters:
- Wind speed: 0-45 m/s; resolution 0.1 m/s; accuracy ±(0.3 ± 0.03v) m/s.
- Wind direction: 0-360°; resolution 1°; accuracy ±3°.
- Air temperature: -40 to +60 °C; resolution 0.1 °C; accuracy ±0.5 °C.
- Air humidity: 0-100 %RH; resolution 0.1 %RH; accuracy ±3 %.
- PV module temperature: -50 to +100 °C; resolution 0.1 °C; accuracy ±0.5 °C.
- GHI/GTI/DNI/DHI: 0-2000 W/m²; 1 W/m² resolution.
- Sunshine duration and daily/monthly/annual accumulated radiation.
- Optional Hall sensors: voltage 0-500 V; current 0-150 A.
Data logger / system:

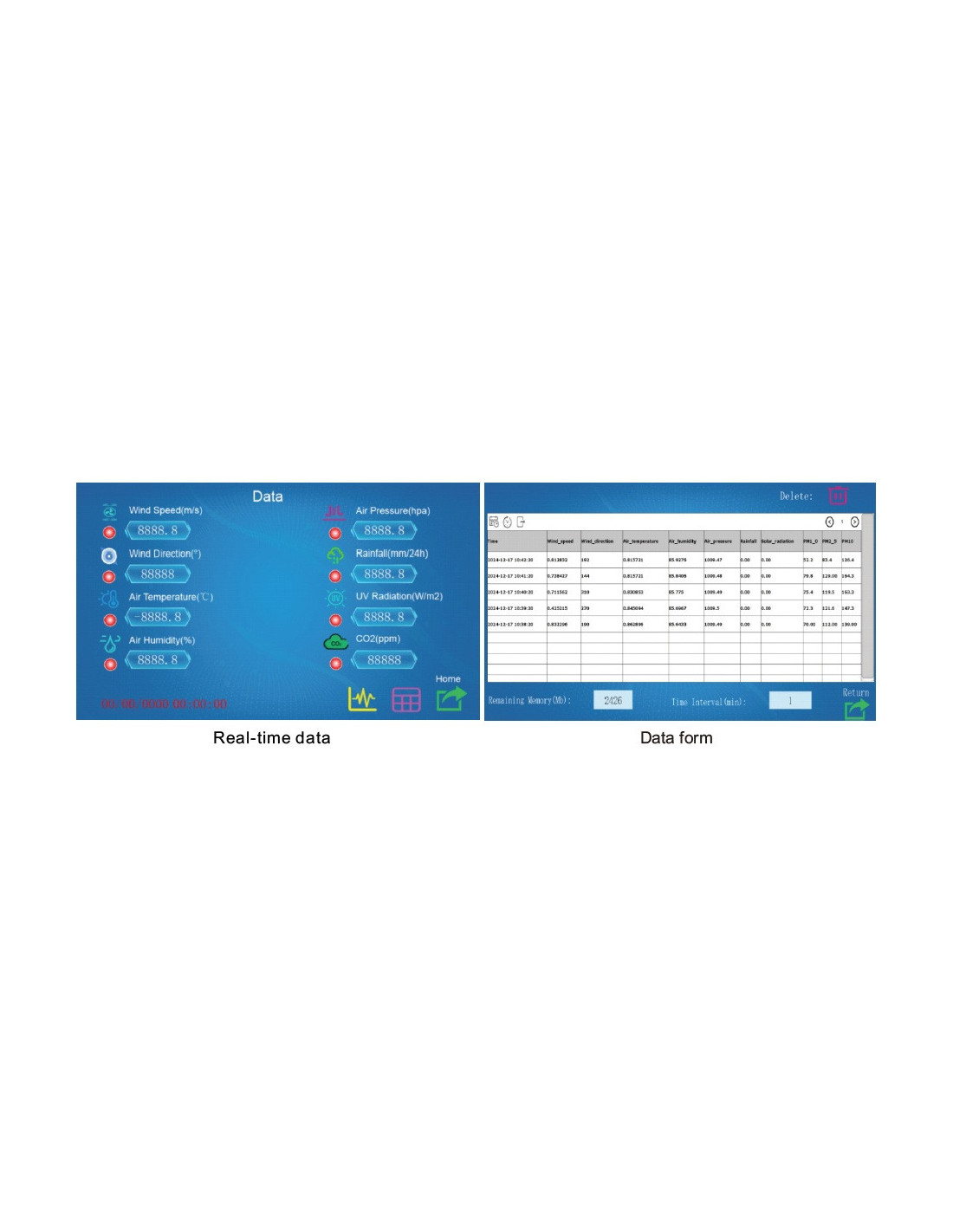

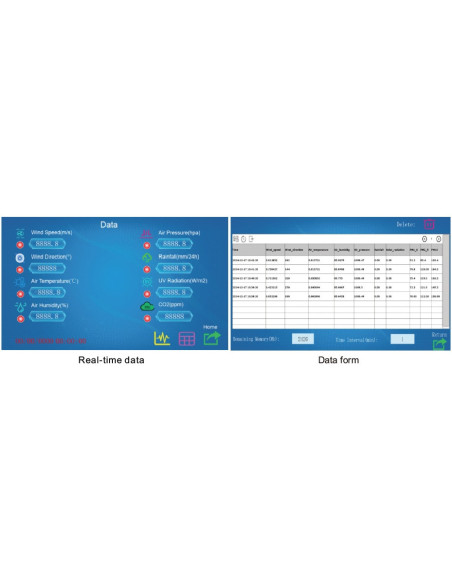

- 7" LCD display.
- 1024 × 600 resolution.
- 1 × RS232 and 2 × RS485.

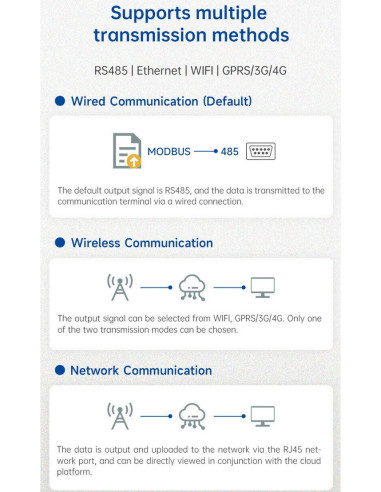

- Standard Ethernet; optional 4G/WiFi.
- 4 GB internal storage.
- Up to 32 measuring parameters.
- Adjustable storage interval from 1 to 240 min.
- USB disk download.
- Customizable relay output.
- Surge protection.
- CE compliance: EN55022 and EN55024.
