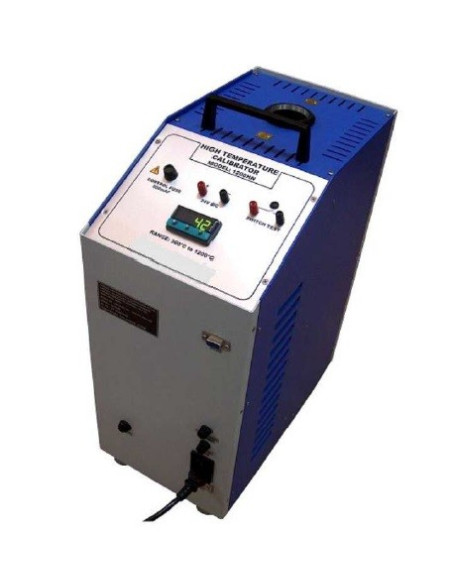

CALI-1200HN Thermocouple Calibration Furnace 300 -1200 Deg C

View larger

CALI-1200HN Thermocouple Calibration Furnace 300 to 1200ºC

Reference CALI-1200HN

Manufacturer: MRC

Condition: New

CALI-1200HN is a type of semi-portable, multi-hole block and dry block
temperature gauge used to calibrate temperature sensors as
Thermocouples of different sizes at the same time at high temperature. This calibrator is suitable for steel, glass, metallurgical processes, cement plants, refineries / Fertilizers, Thermal Power Plants, etc.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
Data sheet
Download

MEASUREMENT AND CALIBRATION INSTRUMENTS	Dry Well Calibrators

CALI-1200HN Download (460.37k)

Calibration furnace for thermocouples
300-1200 Deg C
Temperature range:400 to 1200 deg C
Diameter of thermocouples up to 7.5mm
Temperature stability better than 1 deg C
External:w310xd225xh399
Weight 8.8kg
Power 1100 watt
● Stability: Better than ±0.5°C (below 600°C).
● Accuracy: Better than ±3°C. Resolution: 1°C.
● RS - 232 Interface.
● Multi-Hole 1 Interchangeable (Thermowell) Inserts - to suit.
● High Accuracy.
● Auto - Tune PID Control. Semi Portable
