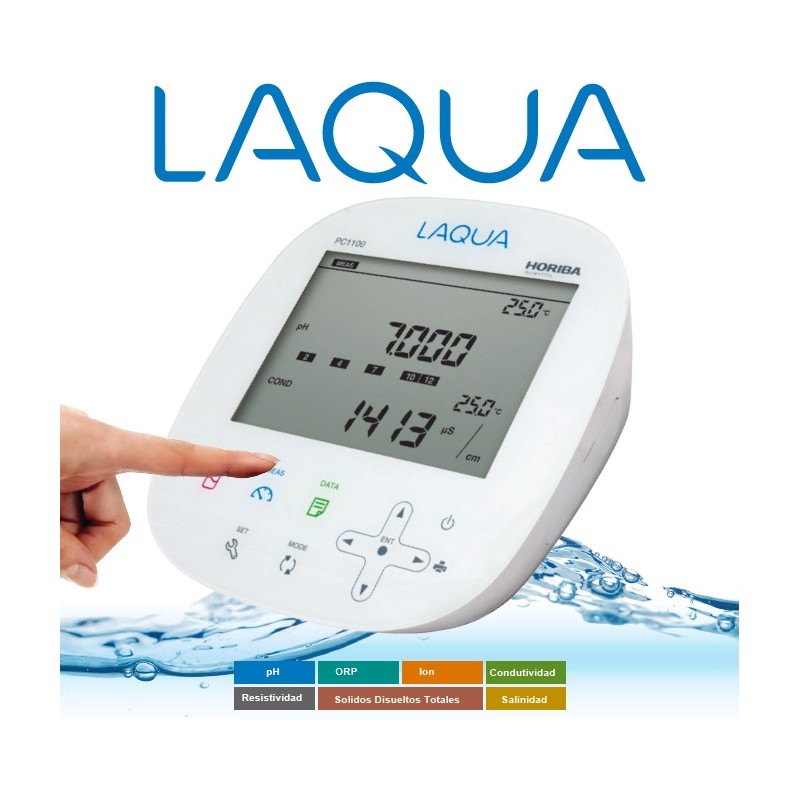

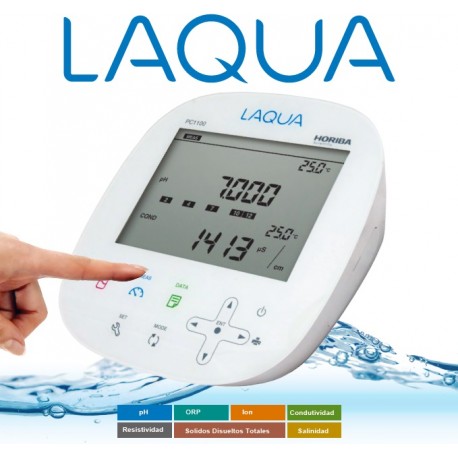

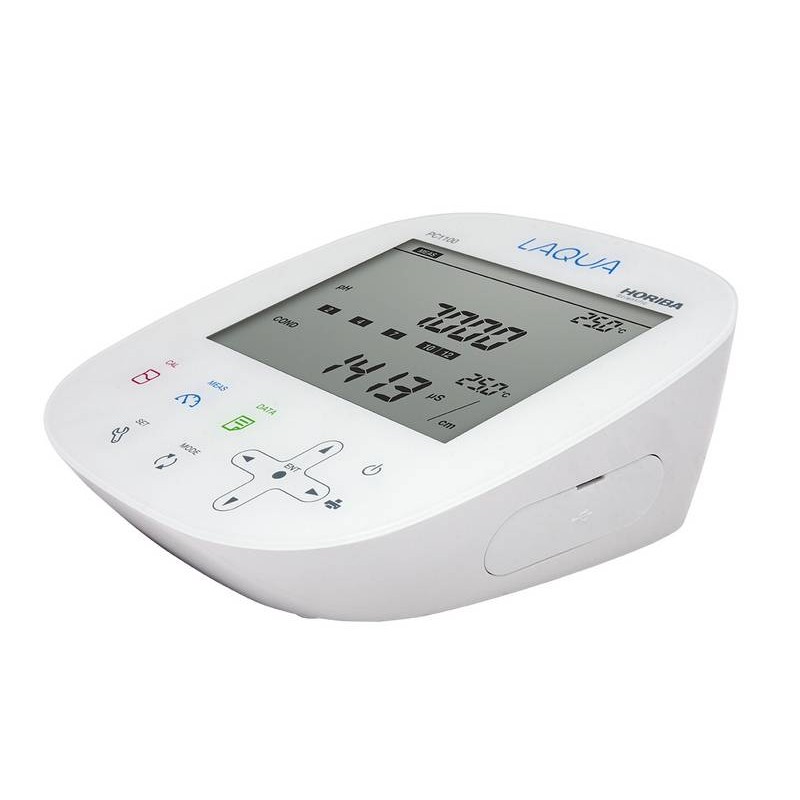

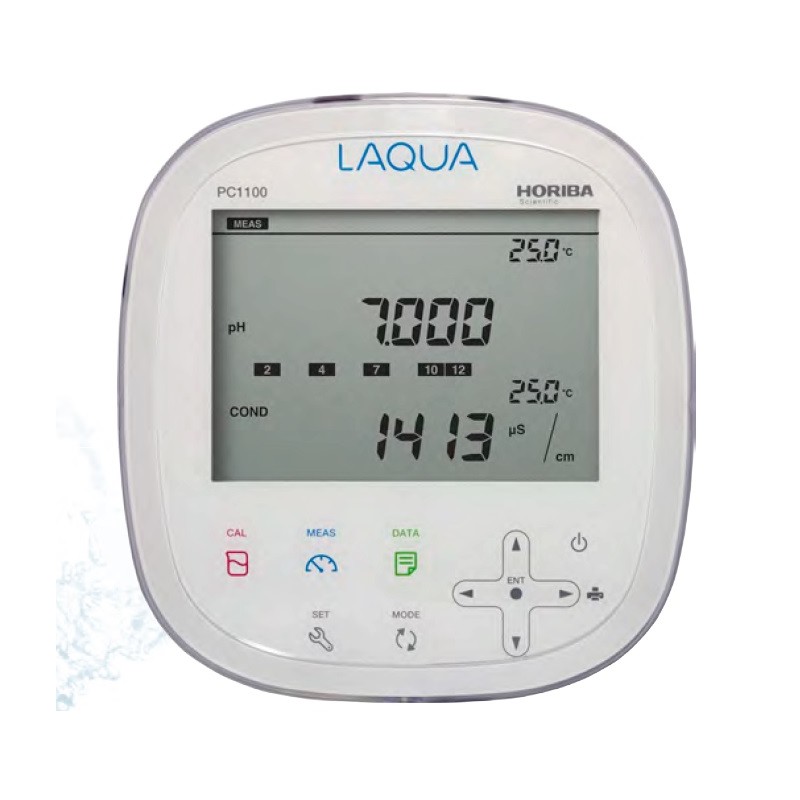

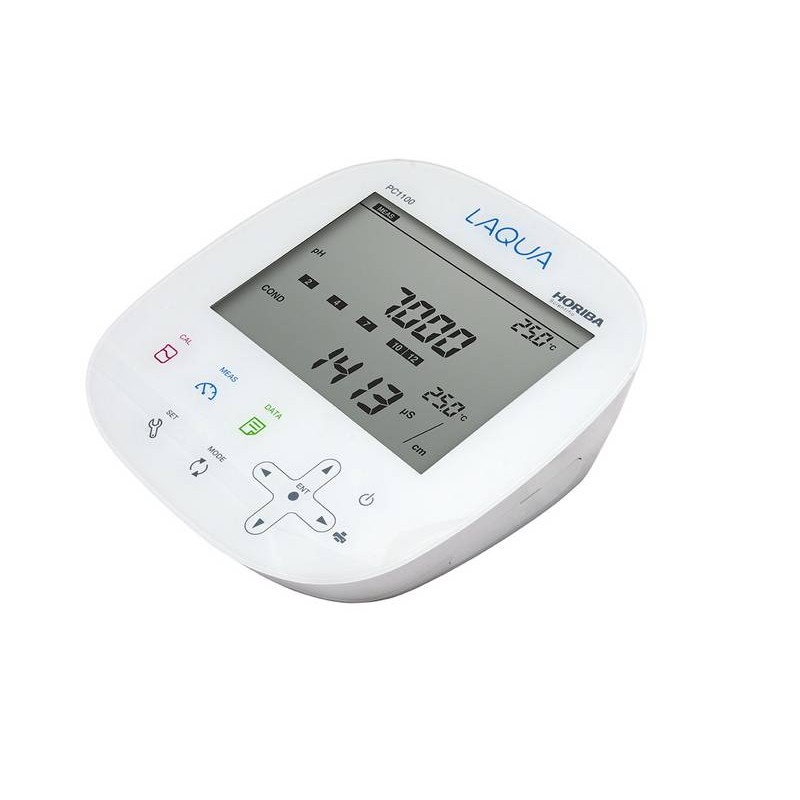

PC1100 LAQUA Colour Touchscreen Benchtop Water Quality Meter
PC1100 pH/mV/EC/TDS/RES/SAL Bench meter date/time, USB, RS232

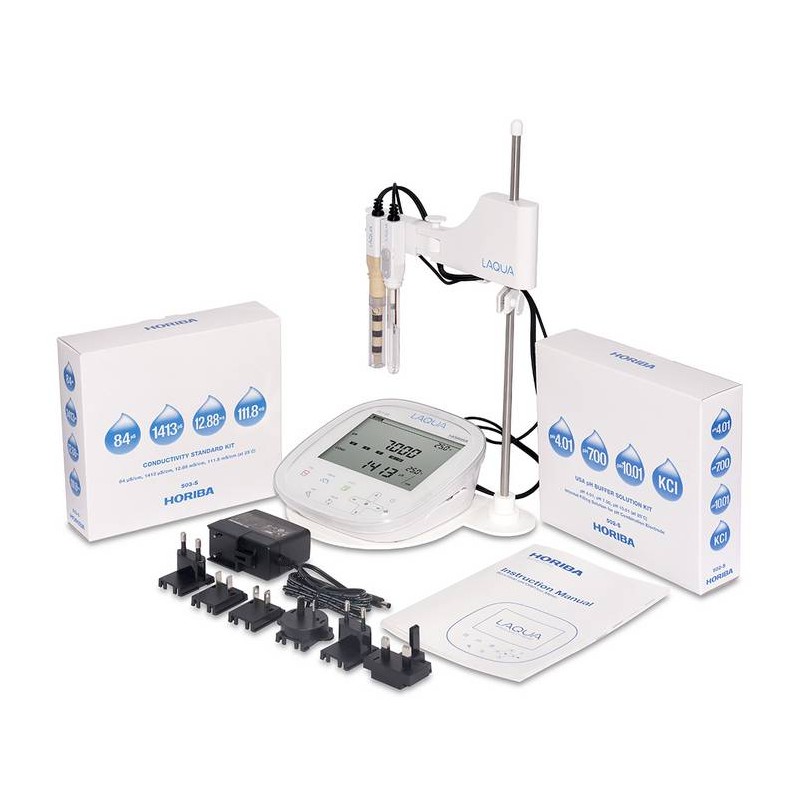

- Contains:
• PC1100 meter
• Electrode stand
• Power adaptor
• Protection cover
- Dual channel / display
- Automatic pH calibration up to 5 points using NIST, USA, or custom pH buffers
- Switchable pH resolution - 0.1, 0.01, 0.001 pH
- Offset and slope display
- Automatic / manual temperature compensation
- Temperature calibration function
- Automatic / manual conductivity calibration up to 4 points
- Adjustable reference temperature and temperature coefficient
- Selectable cell constant and measurement unit
- Resistivity, total dissolved solids (TDS), and salinity conversions from conductivity
- Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two salinity calibration curves: NaCl, Seawater
- Auto log data
- Built-in memory can store up to 999 data
- Real-time clock
- Date / time stamp
- Auto shut-off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Calibration alarm (programmable: 1 to 400 days)
- Custom black and white static LCD
- RS232C and USB output for connecting the meter to a compatible printer or computer
- Meter password setting
- 2 years meter warranty
|
Model |
LAQUA PC1100 Dual Channel pH/ORP/EC/Res/TDS/Sal/Temp (°C) |
|---|---|
|
pH Range |
-2.000 to 20.000 pH |
|
Resolution |
0.1 / 0.01 / 0.001 pH |
|
Accuracy |
± 0.003 pH |
|
Calibration Points |
Up to 5 |
|
Buffer Options |
USA / NIST / Custom |
|
ORP Range |
± 2000 mV |
|
Resolution |
0.1 mV |
|
Accuracy |
± 0.2 mV |
|
Conductivity (EC) Range |
0.000 µS/cm to 20.00 mS/cm (k=0.1) 0.00 µS/cm to 200.0 mS/cm (k=1) 0.0 µS/cm to 2.000 S/cm (k=10) |
|
Resolution |
0.05% of full scale |
|
Accuracy |
± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm |
|
Reference Temperature |
15 to 30 °C (Adjustable) |
|
Temperature Coefficient |
0.00 to 10.00 % (Adjustable) |
|
Cell Constant |
0.1 / 1.0 / 10.0 (Selectable) |
|
Measurement Unit |
μS/cm, mS/cm, S/m (Auto-ranging / Manual) |
|
Calibration Points |
Up to 4 (Auto / Manual) |
|
TDS Range |
0.00 mg/L to 100 g/L |
|
Resolution |
0.01 mg/L |
|
Accuracy |
± 0.1% of full scale |
|
Calibration Curves |
EN27888 / 442 / Linear (0.40 to 1.00) / NaCl |
|
Resistivity Range |
0.0 Ω•cm to 2.000 MΩ•cm (k=10) 0.000 kΩ•cm to 20.00 MΩ•cm (k=1) 0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1) |
|
Resolution |
0.05% of full scale |
|
Accuracy |
± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm |
|
Salinity Range |
0.00 to 100.00 ppt / 0.000 to 10.000 % |
|
Resolution |
0.01 ppt / 0.001 % |
|
Accuracy |
± 0.2% of full scale |
|
Calibration Curves |
NaCl / Seawater |
|
Temperature Range |
-30.0 to 130.0 °C |
|
Resolution |
0.1 °C |
|
Accuracy |
± 0.4 °C |
|
Calibration Option |
Yes |
|
Memory Data |
999 |
|
Auto Log Data |
Yes |
|
Real-time Clock |
Yes |
|
Date / Time Stamp |
Yes |
|
Auto-Shut Off |
Yes (Programmable: 1 to 30 minutes) |
|
Auto-Hold / Auto-Stable |
Yes |
|
Offset / Slope Display |
Yes (Independent acid and alkaline slopes depending on calibration) |
|
Electrode Status |
On screen display |
|
Diagnostic Messages |
Yes |
|
Calibration Alarm |
Yes (Programmable: 1 to 400 days) |
|
Display |
Custom black and white static LCD, Dual Channel |
|
Inputs |
Dual BNC, dual phono, DC sockets |
|
Output |
RS232C, USB |
|
Power Requirement |
AC adaptor, 100-240V, 50/60Hz |
|
Weight |
500g |
|
Dimensions |
170(L) x 174(D) x 73(H) mm |
- Number of Channels
- 2 channels
- With Display
- LCD
- Communications
- RS232C, USB
- Memory Capacity
- 999
- The Sensor measures:
- pH/ORP/EC/R/TDS/Sal./Temp
- Power Supply:
- AC adaptor 100 240V, 50/60 Hz
