ZM/O Acessórios Meteorológicos

Reference:

Manufacturer: Fuehler Systeme

Condition: New

- Braçadeira cruzada
- Crosspiece
- Placa Base

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

130,00 €

Imposto Excluido

Quantidade

Acessórios Opcionais

Adicionar à Lista de desejos

Geral
Especificações
MATRIZ PEDIDOS
Data sheet
Download
Accessories

Acessórios Sensores:	Vários
Acessórios de Montagem:	Flanges e suportes

ZM/O Opções de Montagem Download (151.32k)

- Velocidade do vento...

FS6003 Estação Meteorológica Compacta, Saída Digital (Modbus RTU)
1 295,00 €

Add to cart

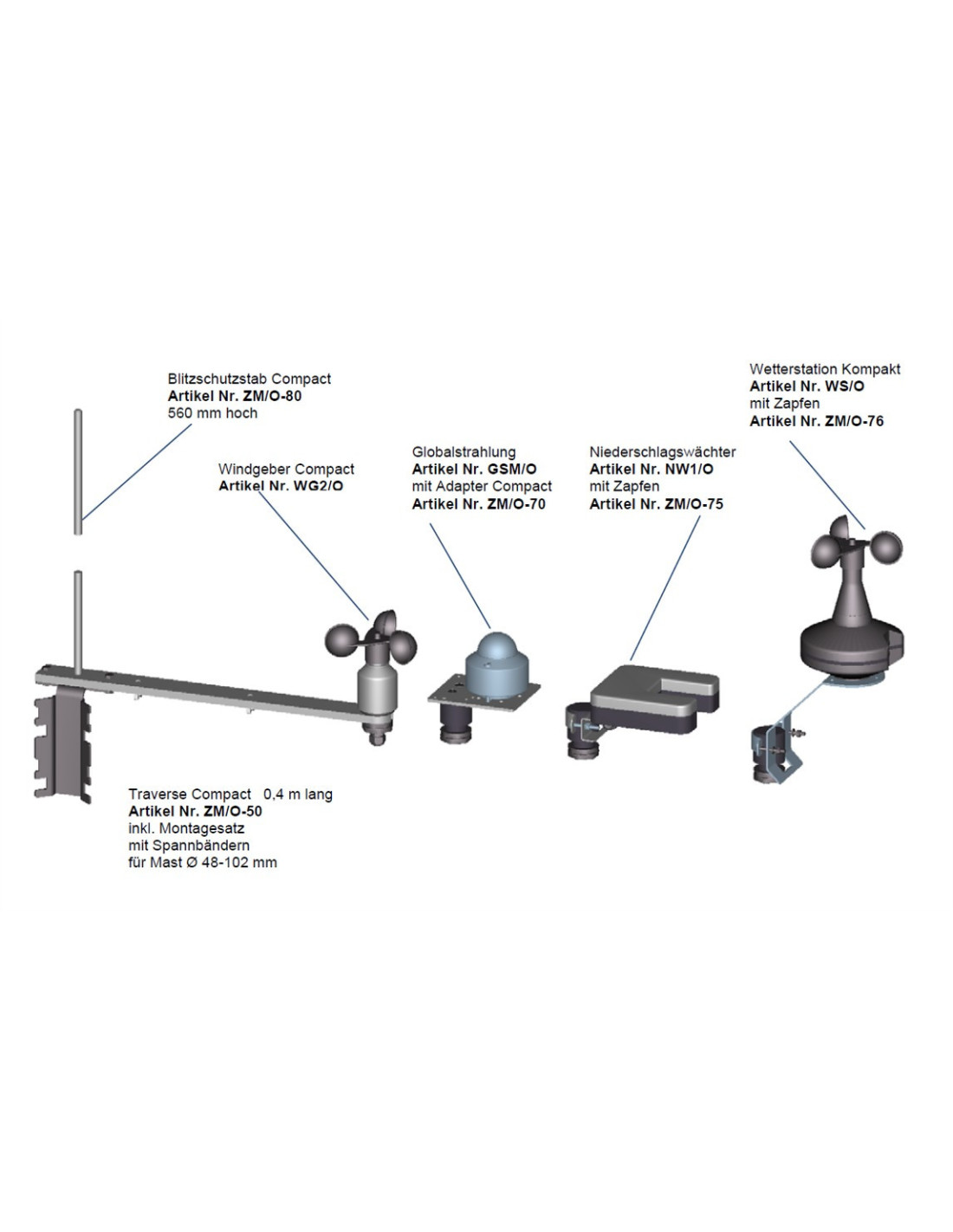

Porta-ferramentas: para a instalação no campo de instrumentos de medição meteorológica. Consiste em tubo de mastro, cruz de montagem, pinos de aterramento para instalação no solo ou plugues de fundação, bem como um grampo e braçadeira de aterramento.
Mastro telescópico: para instalação em campo de instrumentos de medição meteorológica. Mastro com permanência, placa base e adaptador. A placa de base tem um receptáculo de mastro inclinado. Crosspiece para transmissores de vento clássicos: para montar o transmissor de velocidade do vento e o transmissor de direção do vento juntos em um mastro. A travessia é conectada ao plugue de acordo com as combinações do transmissor.

Article No. ZM/O-30
Description	Traverse for 2 Wind Transmitter (Classic-Line) for joint installation of wind speed and wind direction sensor on a mast top
Material	aluminum, anodised
Pipe dimension	1 1/2 inches according to DIN 2448 (Ø 48.3 x 2.6 mm)
Sensor distance	Horizontal 0.6 m, Vertical 0.2 m
Mounting	bore Ø 71 x 74 mm
Dimensions	height 0.8 m
Weight	3000 g

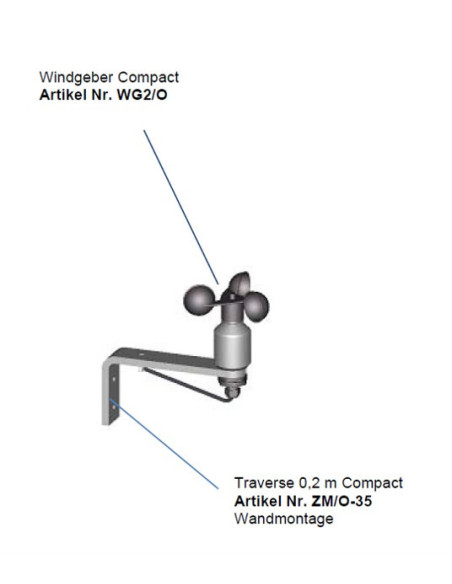

Article No. ZM/O-35
Description	Traverse for 1 wind generator (Compact-Line) for mounting wind speed or wind direction sensors on a facade
Material	aluminum
Assembly	screw fastening
Encoder distance	0.2 m
Weight	300 g

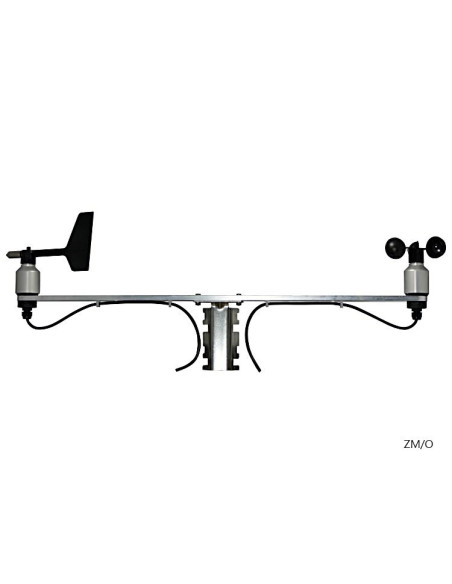

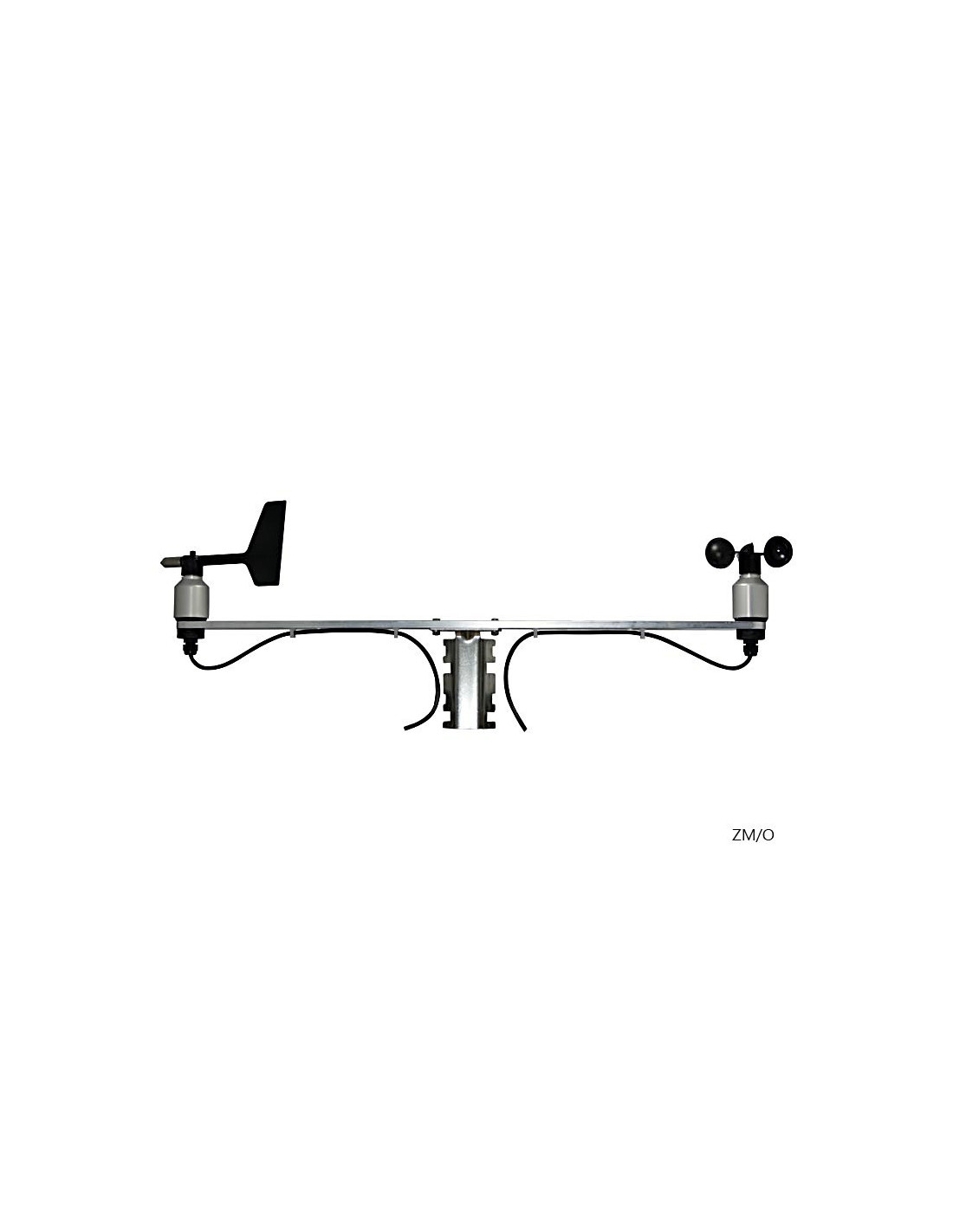

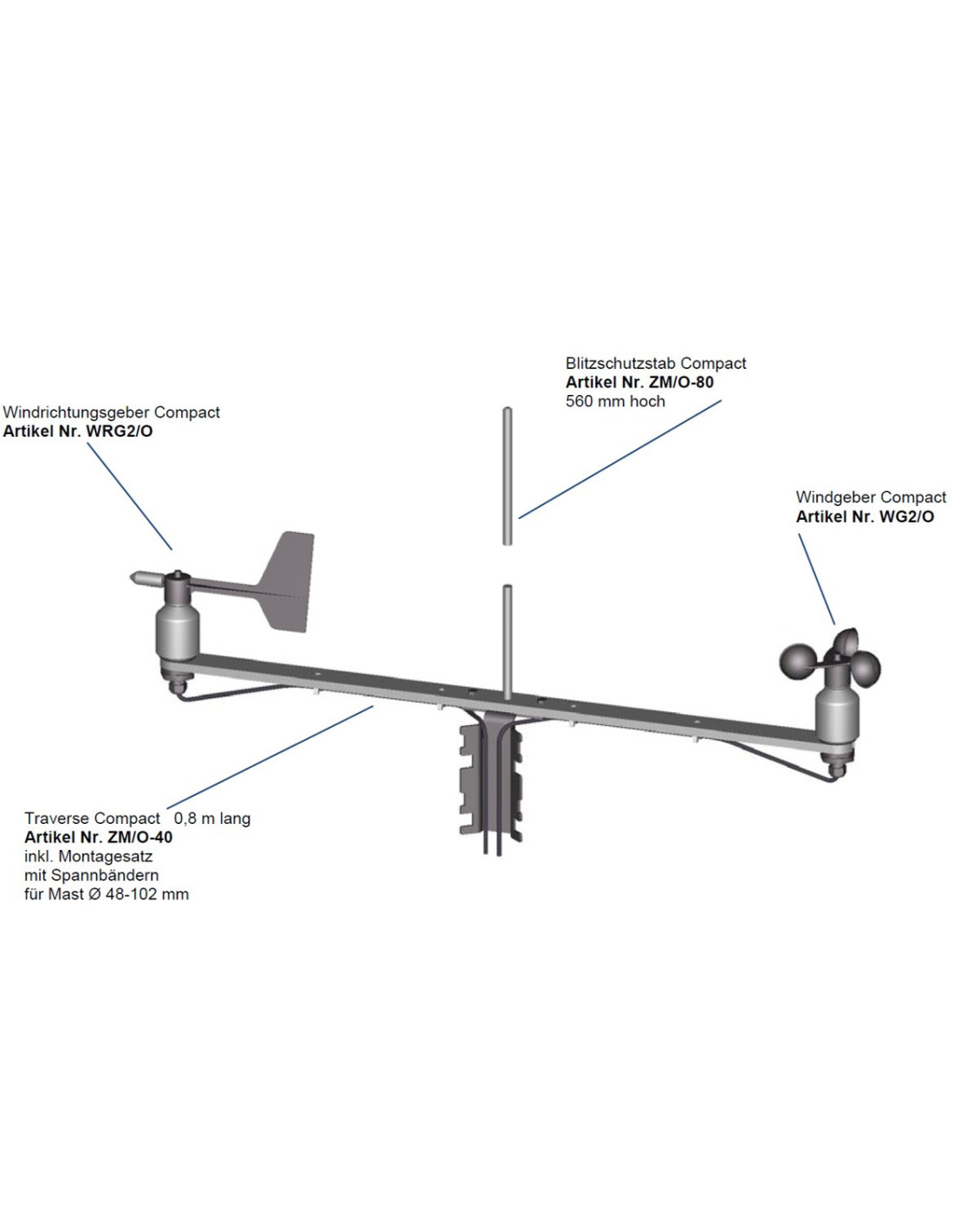

Article No. ZM/O-40
Description	Traverse for 2 Wind Transmitter (Compact-Line) for joint installation of wind speed and wind direction sensor on a mast
Material	Traverse made of aluminum, mounting kit made of stainless steel V2A
Mounting	Mast with clamping range Ø 48-102 mm
Sensor distance	0.8 m, 0.4 m from the mast
Weight	300 g

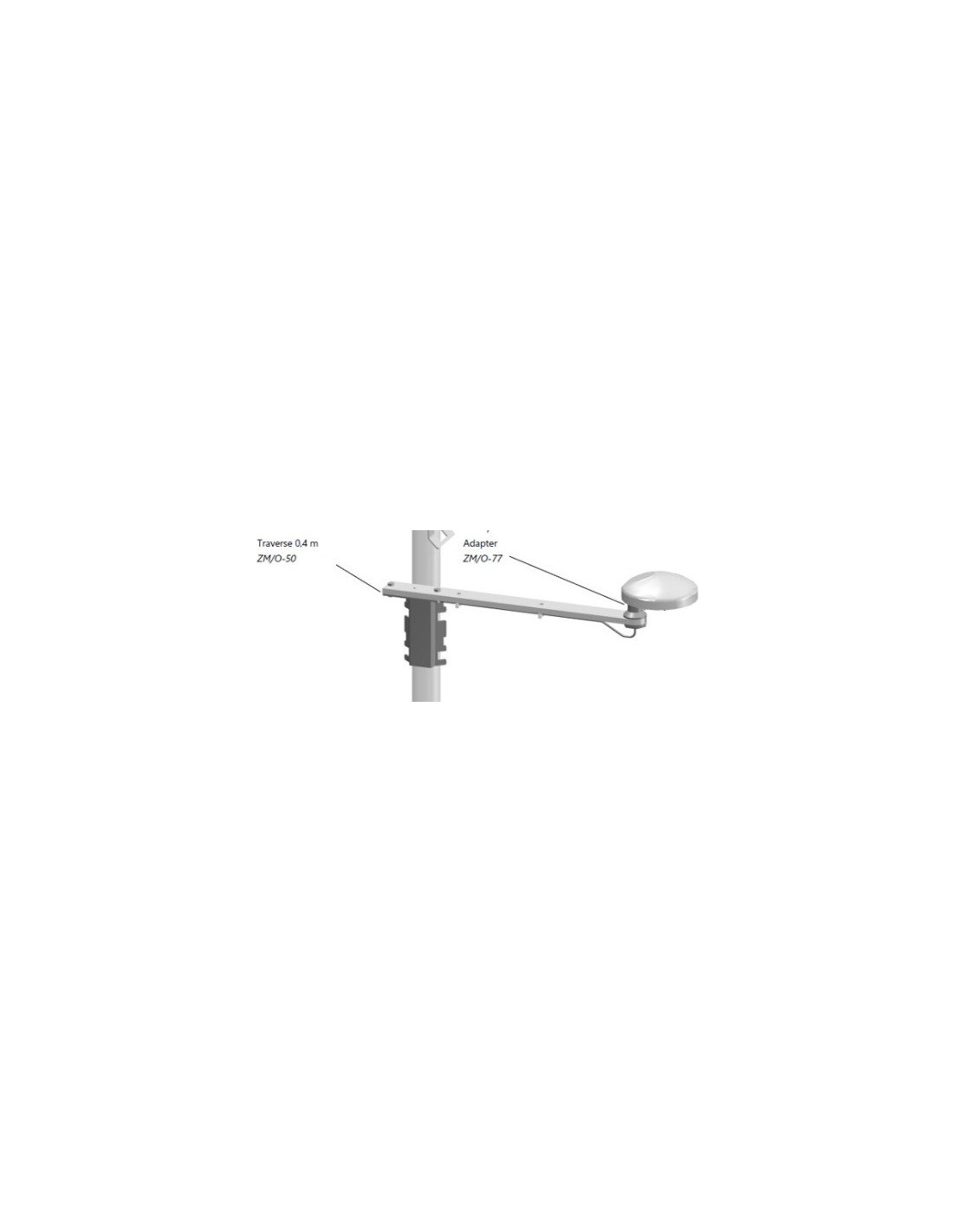

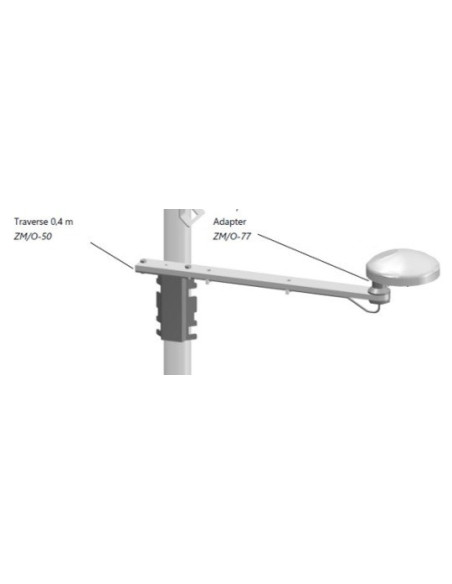

Article No. ZM/O-50
Description	Traverse short for 1 wind sensor (Compact-Line) for mounting wind speed or wind direction sensor on a mast
Material	Traverse made of aluminum, mounting kit made of stainless steel V2A
Mounting	Mast with clamping range Ø 48-102 mm
Sensor distance	0.4 m from the mast
Weight	300 g

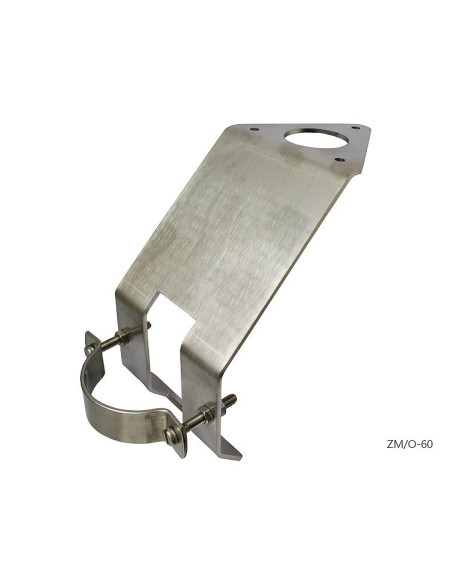

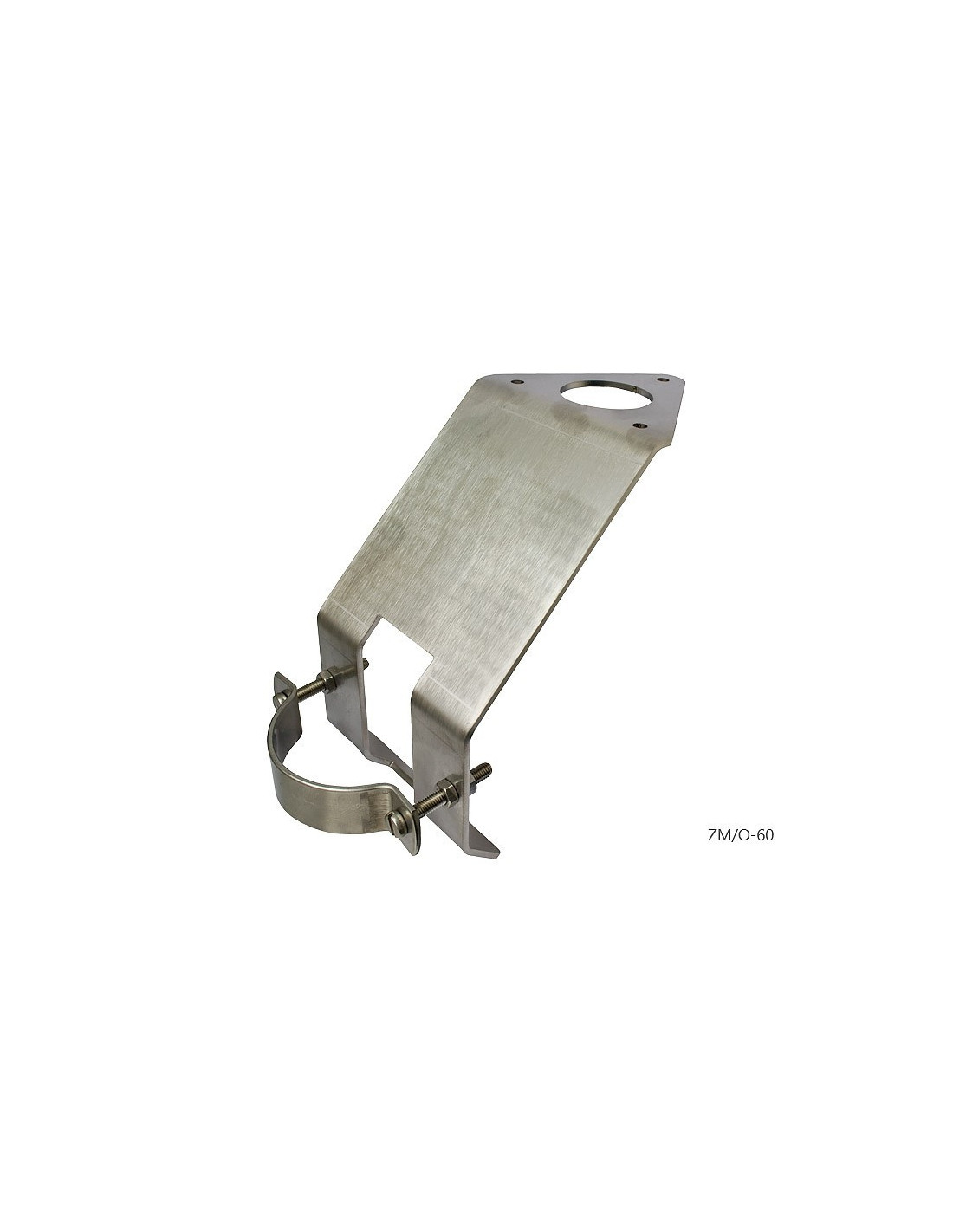

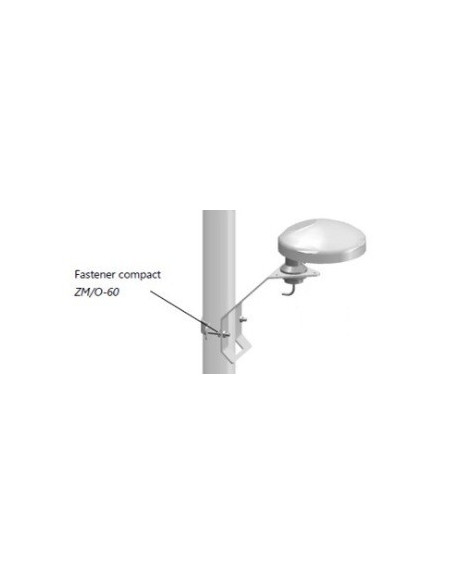

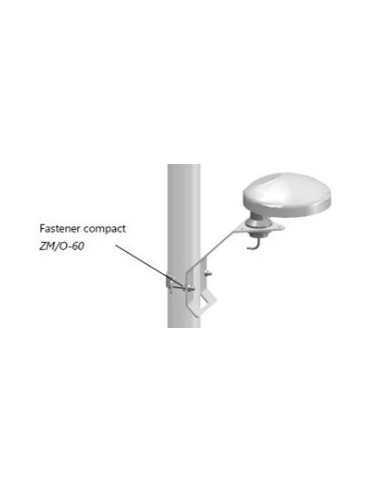

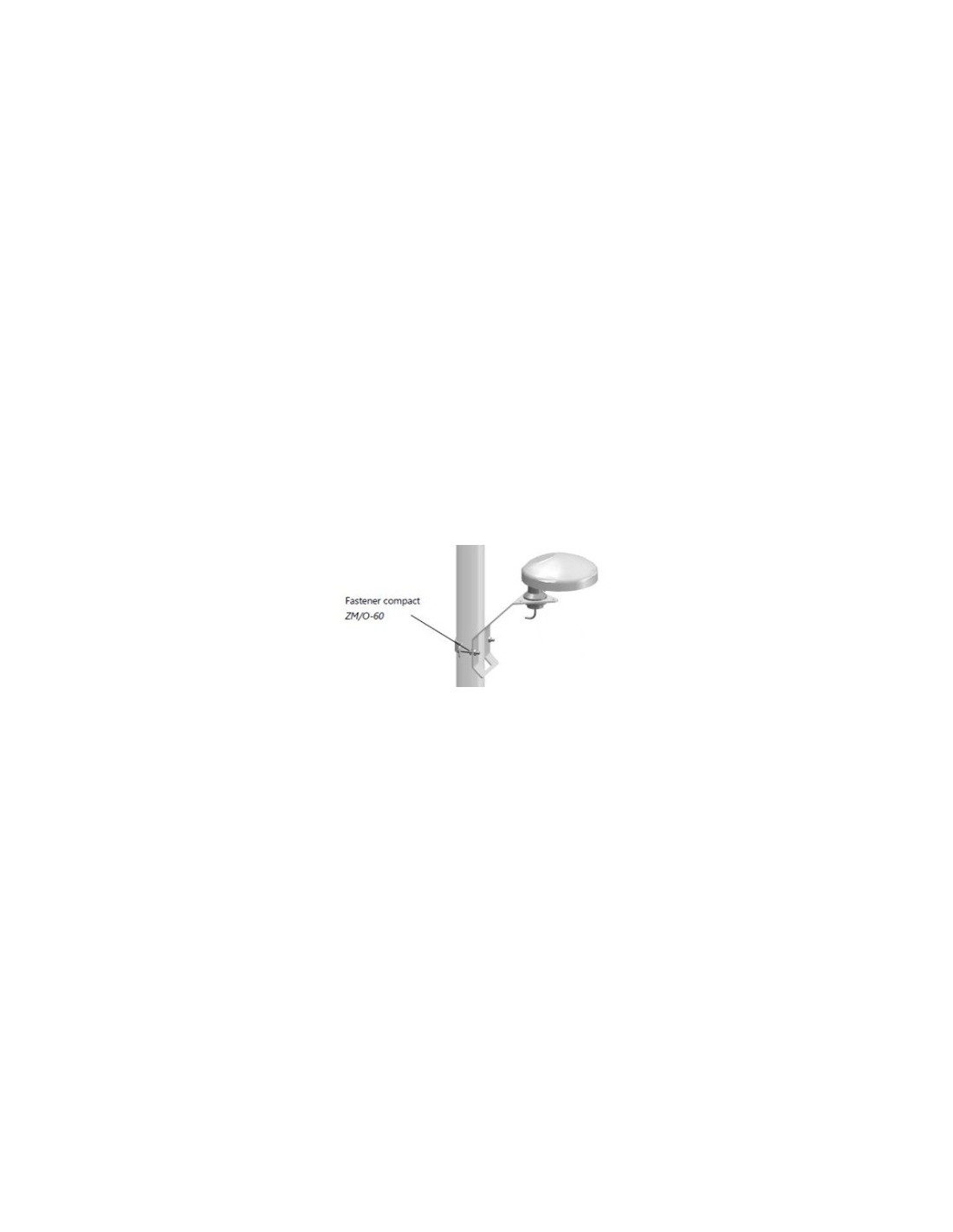

Article No. ZM/O-60
Description	Holder for 1 wind sensor (Compact-Line) for mounting wind speed or wind direction sensors on a surface, pole or pipe
Material	stainless steel V2A
Dimension	80 x 150 mm, hole for pipe diameter Ø 34 mm
Mounting	Mast with clamping range Ø 35-50 mm or wall surface
Weight	350 g

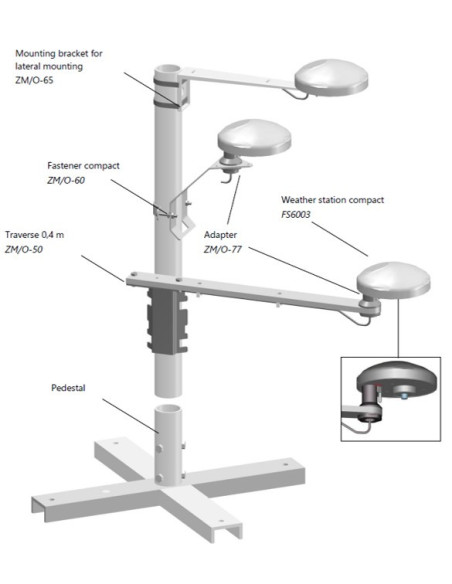

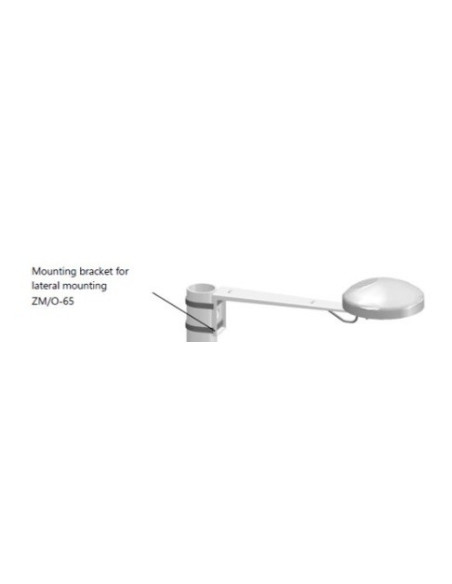

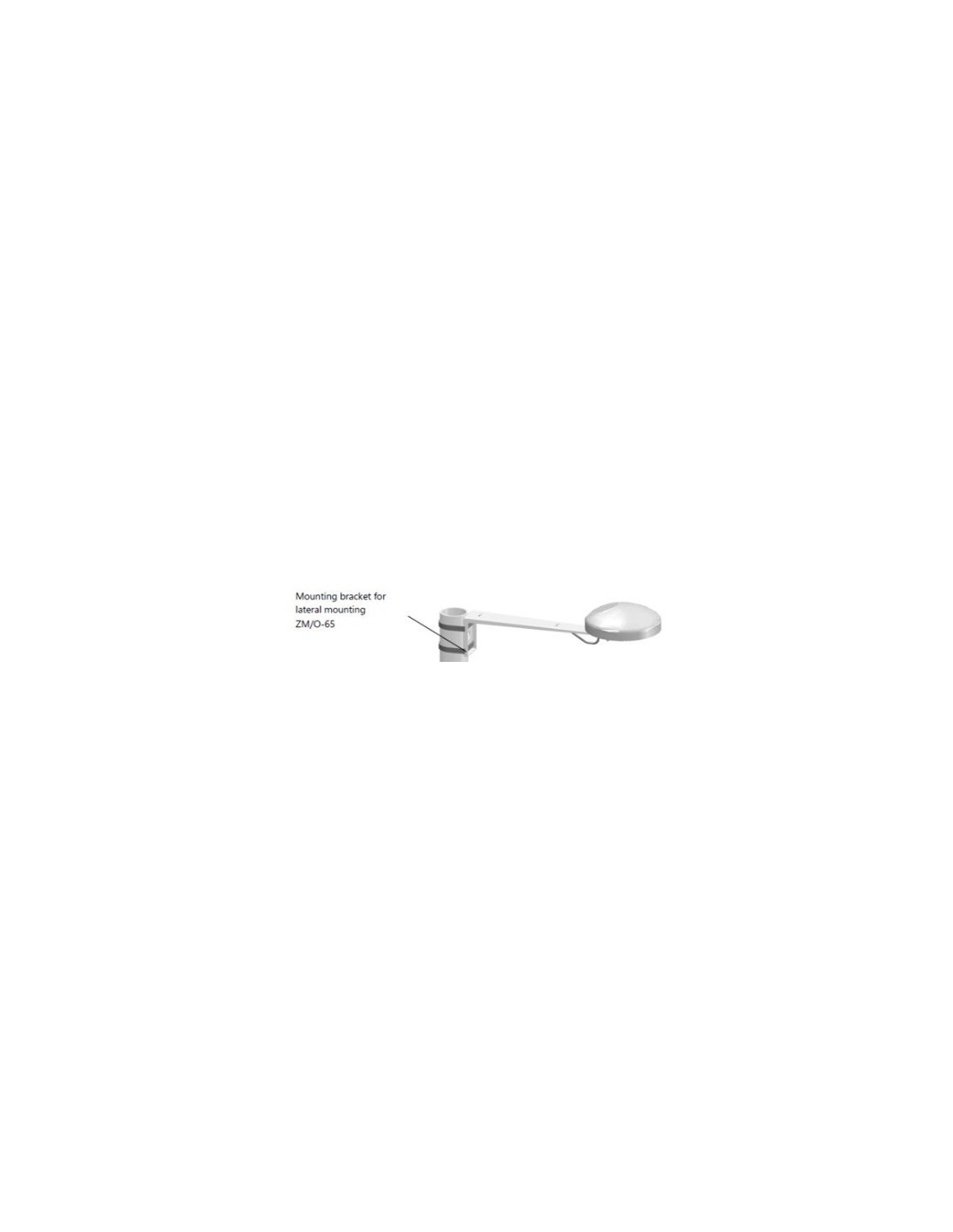

Article No. ZM/O-65
Description	Mounting bracket for lateral fixing of the weather station FS6003 on a vertical surface, 250 x 42 mm

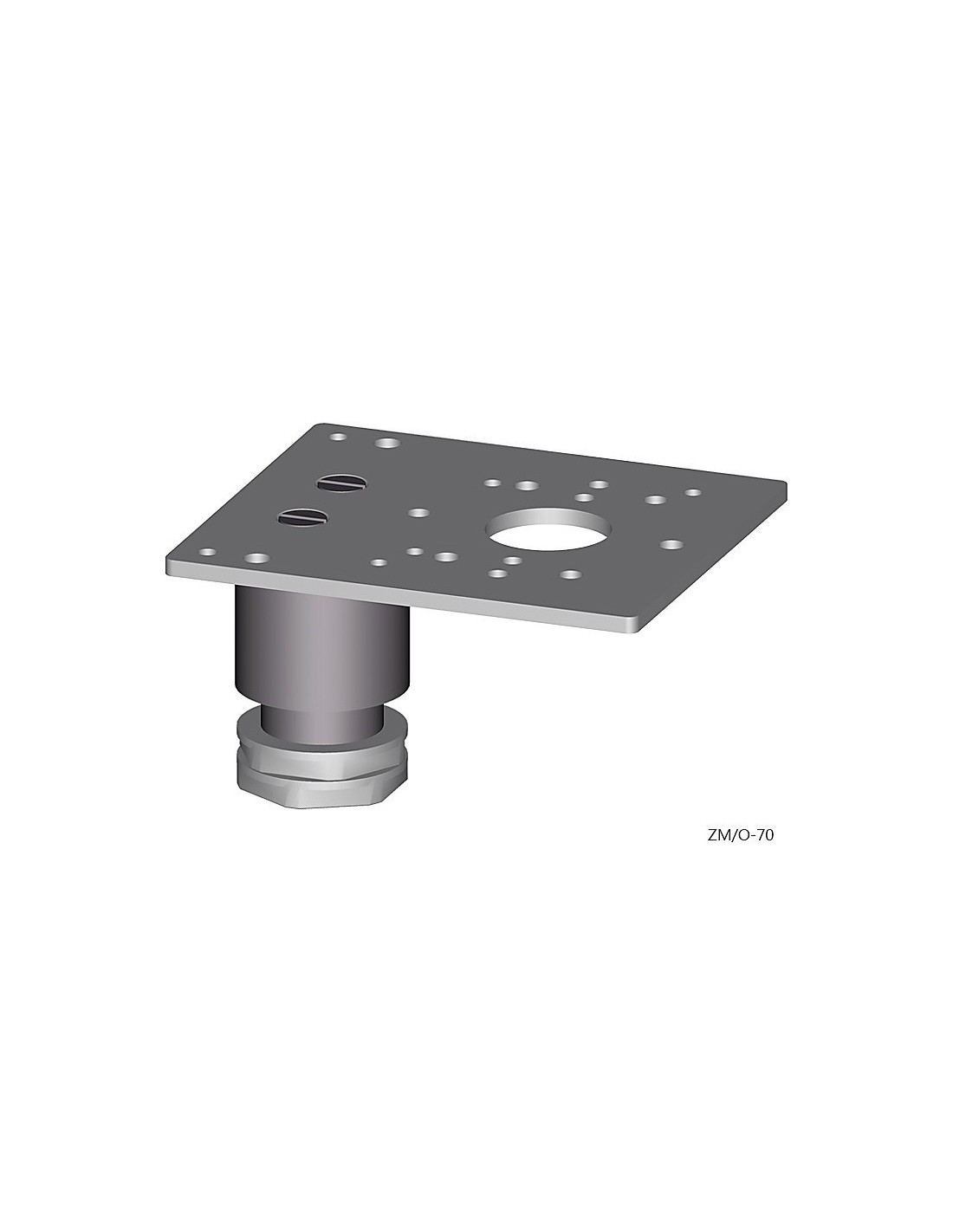

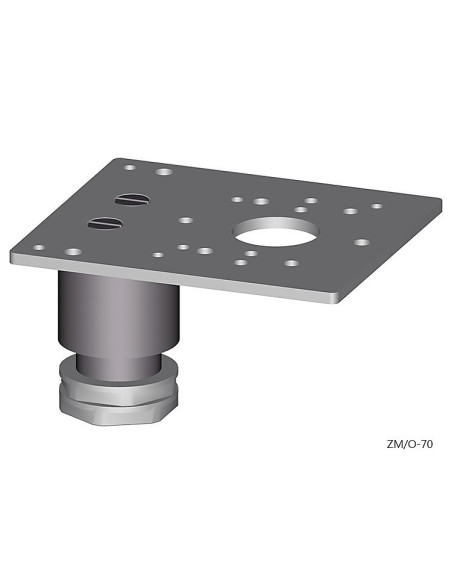

Article No. ZM/O-70
Description	Base plate with adapter for attaching pyranometer to a crossbeam
Material	aluminum, anodised
Dimension	100 x 115 x 65 mm
Weight	500 g
Article No. ZM/O-75
Description	Spigot complete for transducer adaptation on traverses Compact
Material	POM
Dimensions	40 x 65 mm
Weight	100 g
Article No. ZM/O-76
Description	Adapter/pin complete for transducer adaptation on traverses Compact
Material	aluminum
Dimension	40 x 75 mm
Weight	250 g
Article No. ZM/O-80
Description	Lightning rod for additional attachment to a mast, pipe or crossbar to protect the wind transmitter from destruction by lightning strikes
Material	stainless steel
Dimension	height 560 mm
Weight	340 g
Article No. ZM/O-90
Description	Connection cable for FS6002, 10 m FRNC 16 x 0.25 mm², open ends on the receiving side, shielded, halogen-free, UV-resistant
Article No. ZM/O-91
Description	Connection cable for FS6003, 10 m, 7-pin, open ends on the receiving side, shielded, halogen-free, UV-resistant
