RX2100-WL Estación GSM HOBO MicroRX para Nivel de Agua (Modelos RX2103 y RX2104)

MODELOS DISPONIBLES:

- RX2101 HOBO MircroRX Station con batería
- RX2102 Estación HOBO MircroRX con panel solar de 1,7 W

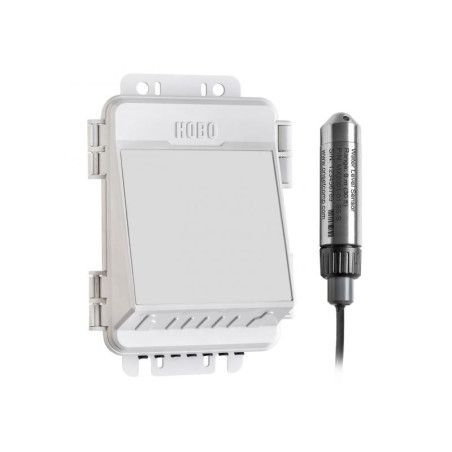

- RX2103 HOBO MircroRX Estación de nivel de agua con batería

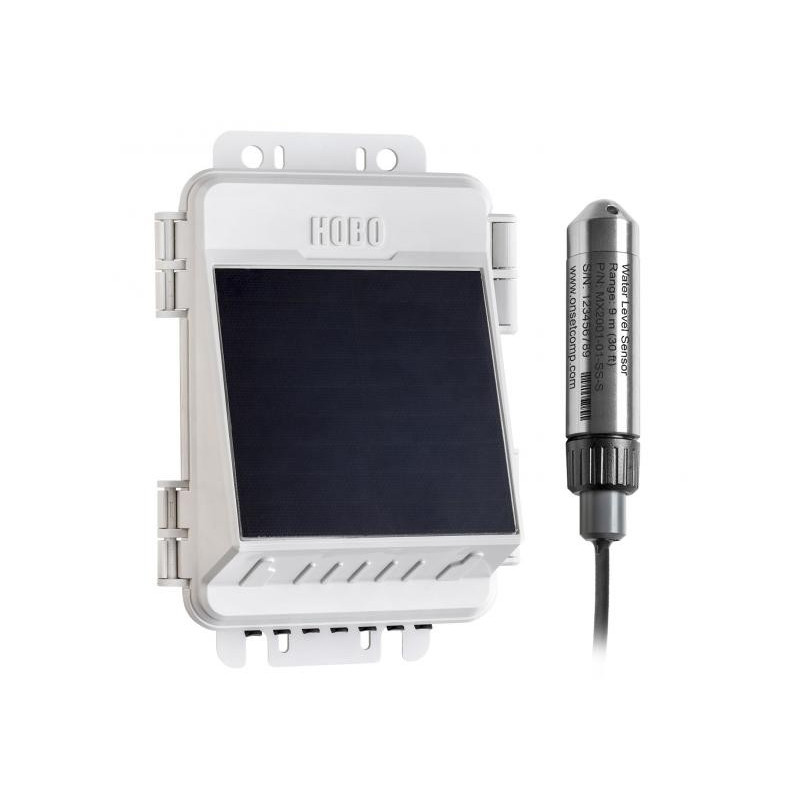

- RX2104 Estación de nivel de agua HOBO MircroRX con panel solar de 1,7 W

LONGITUD DEL CABLE (SELECCIONAR DE LA LISTA):
- CABLE-RWL-5.0 Cable sensor para HOBO RX2100-WL, 5 metros
- CABLE-RWL-015 Cable sensor para HOBO RX2100-WL, 15 metros
- CABLE-RWL-030 Cable sensor para HOBO RX2100-WL, 30 metros

Los nuevos cálculos de flujo de agua y lluvia acumulada, que se realizan directamente en la estación en el momento de la medición, generan notificaciones inmediatas de condiciones críticas del nivel del agua.

La estación compacta y duradera, junto con el sensor de nivel de agua sin ventilación, permite la implementación de condiciones difíciles y un monitoreo confiable. El panel solar integrado opcional o la energía de la batería, con una amplia gama de sensores inteligentes plug-and-play, admite un monitoreo ambiental flexible.

Características destacadas:
-    Alarmas del lado de la estación para el flujo de agua y la lluvia acumulada activadas en el momento de la medición
-    Sensor de nivel de agua de cerámica sin ventilación con una selección de cuatro rangos
-    Cables intercambiables de sensor de nivel de agua reforzado con Kevlar
-    Sensor de presión barométrica integrado.

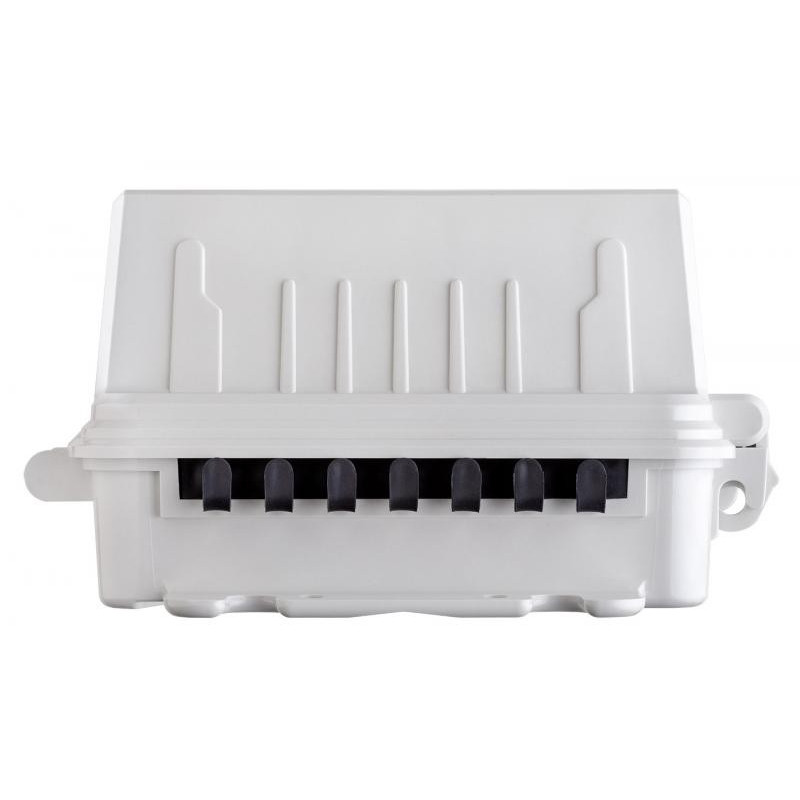

-    Caja compacta IP66 / NEMA 4X

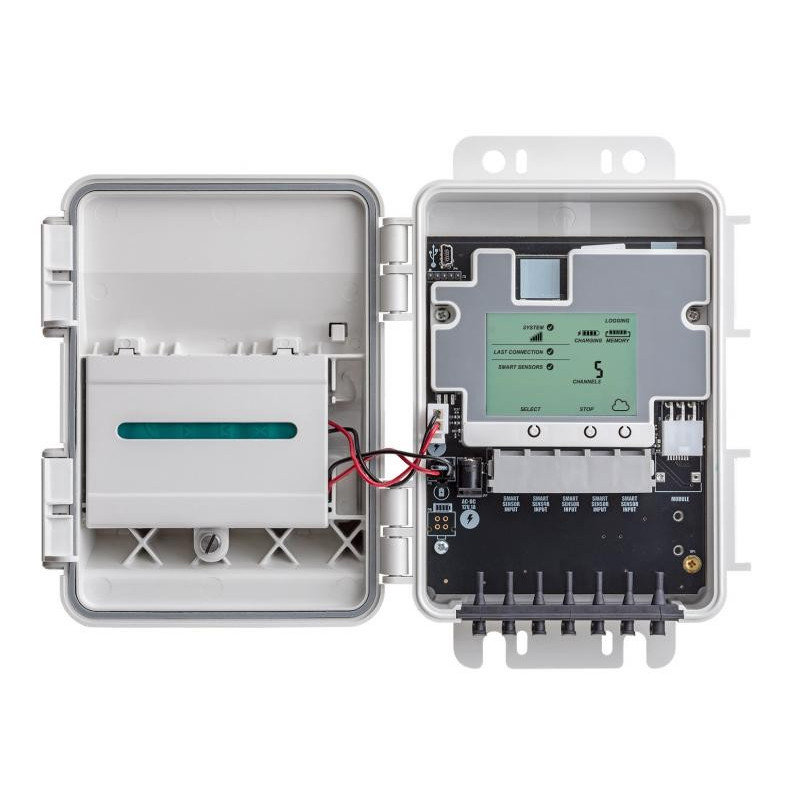

-    El LCD incorporado confirma la configuración y operación correctas
-    Dos opciones de energía:
-    Panel solar integrado de 1.7 W con batería recargable
-    Se pueden agregar paneles solares externos de 5 W y 15 W (solo RX2104)
-    Baterías de litio AA reemplazables por el usuario
-    Entradas para cinco sensores plug-and-play
-    Tarifas de conexión de hasta 10 minutos a través de planes de datos celulares 4G
-    Monitoreo basado en la nube y acceso a datos a través de HOBOlink
-    Disponible con extremos de sensor de acero inoxidable o titanio
-    Certificado de calibración trazable NIST de 3 puntos incluido para el sensor de presión de agua

¿En qué entorno opera este registrador de datos?

Este registrador de datos funciona en un entorno submarino.
¿Qué medidas admite este registrador de datos?

El registrador de datos RX2100-WL admite las siguientes mediciones: presión absoluta, presión barométrica, evapotranspiración, humedad de la hoja, intensidad de luz, PAR, entrada de pulso, lluvia, humedad relativa, humedad del suelo, temperatura, flujo de agua, nivel de agua y viento

Rango Operativo:
RX2103: -40 ° to 60 ° C (-40 ° to 140 ° F)
RX2104: -20 ° to 60 ° C (-4 ° to 140 ° F)

Smart Sensor Connectors: 5

Smart Sensor Network Cable Length: 100 m (328 ft) maximum

Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)

Logging Rate: 1 minute to 18 hours

Time Accuracy:
± 8 seconds per month in 0 ° to 40 ° C (32 ° F to 104 ° F) range;
± 30 seconds per month in -40 ° to 60 ° C (-40 ° to 140 ° F) range

Battery Type / Power Source:
RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)
RX2104: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel

Vida de la Batería

RX2103 Battery Life:
Battery life with daily connections: RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging: RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

RX2104 Battery Life: Typical 3–5 years when operated in the temperature range -20 ° to 40 ° C (-4 ° to 104 ° F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:
10 minute connections year round for latitudes less than ± 40 °
10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:
10 minute connections year round, in full sun
Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and 1 minute logging: RX2104: 2 months

Memoria

16 MB, 1 million measurements, continuous logging: Alarm Notification Latency

Logging interval plus 2–4 minutes, typical: Enclosure Access

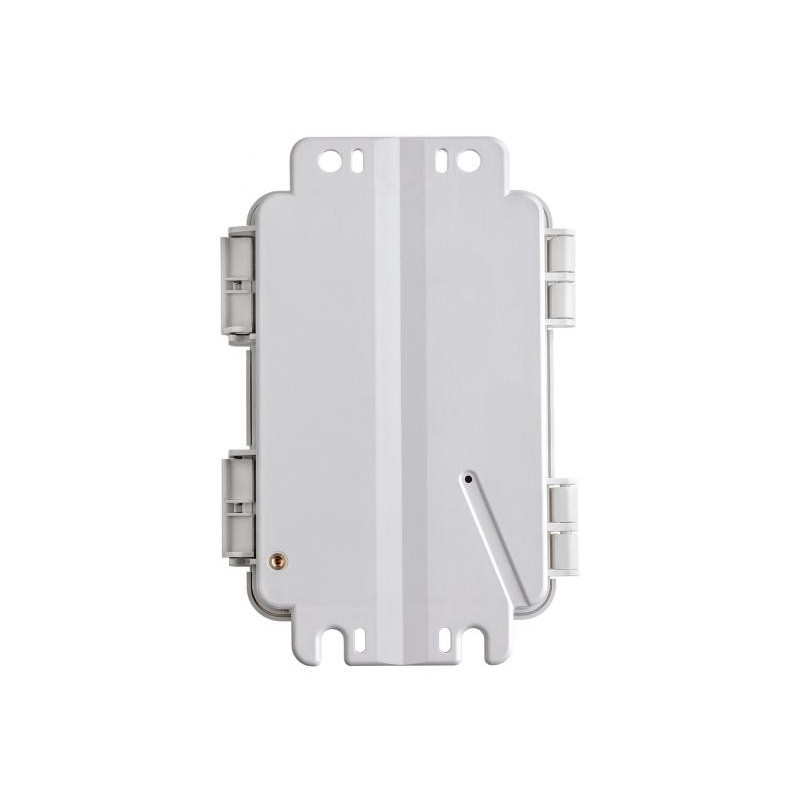

Hinged door secured by two latches with eyelets for use with user-supplied padlocks

LCD: LCD is visible from 0 ° to 50 ° C (32 ° to 122 ° F); the LCD may react slowly or go blank in temperatures outside this range

Materiales

Outer enclosure: Polycarbonate / PBT blend with brass inserts; Interior: Polycarbonate / PBT; Gasket: Silicone foam; Cable channel: Santoprene ™ TPE; U-Bolts (not included): Steel with zinc dichromate finish

Dimensiones: 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)

Peso: 678 g (23.9 oz)

Mounting: Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) Mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws

Environmental Rating: Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio

GSM / GPRS / EDGE: Quad band 850/900/1800/1900 MHz
UMTS / HSPA +: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz

Antenna: 4G LTE

CE Marked: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

FCC Logo Australia / New Zealand General Compliance mark


FCC ID QIPPLS62-W, IC ID: 7830A-PLS62W


Water Level Sensor: Pressure (Absolute) And Water Level Measurements MX2001-01-S and MX2001-01-Ti-S:

Operation Range: 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 207 kPa (10 to 30 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth

Water Level Accuracy *:
Typical error: ± 0.05% FS, 0.5 cm (0.015 ft) water
Maximum error: ± 0.1% FS, 1.0 cm (0.03 ft) water

Raw Pressure Accuracy **: ± 0.3% FS, 0.62 kPa (0.09 psi) maximum error

Resolution: <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature


Presión (Absoluta) y Medidas de Nivel de Agua MX2001-02-S:

Rango Operativo:
0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 400 kPa (10 to 58 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 500 kPa (72.5 psia) or 40.8 m (134 ft) depth

Water Level Accuracy *:
Typical error: ± 0.05% FS, 1.5 cm (0.05 ft) water
Maximum error: ± 0.1% FS, 3.0 cm (0.01 ft) water

Raw Pressure Accuracy **:
± 0.3% FS, 1.20 kPa (0.17 psi) maximum error

Resolution: <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature

Presión (Absoluta)  y Medidas de Nivel de Agua MX2001-03-S:

Rango Operativo:
0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 145 kPa (10 to 21 psia), 0 ° to 40 ° C (32 ° to 104 ° F)

Burst Pressure: 310 kPa (45 psia) or 18 m (60 ft) depth

Water Level Accuracy *:
Typical error: ± 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: ± 0.15% FS, 0.6 cm (0.02 ft) water

Raw Pressure Accuracy **: ± 0.3% FS, 0.43 kPa (0.63 psi) maximum error

Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water

Pressure Response Time (90%) ***: <1 second at a stable temperature


Barometric Pressure (RX2103 and RX2104 station):

Operation Range: 66 to 107 kPa (9.57 to 15.52 psia)

Temperature Calibrated Range: -20 to 50 ° C (-4 to 122 ° C)

Accuracy: ± 0.2 kPa (± 0.029 psi) over full temperature range at fixed pressure; maximum error ± 0.5% FS

Water Level Accuracy *:
Typical error: ± 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: ± 0.15% FS, 0.6 cm (0.02 ft) water

Resolution: <0.01 kPa (0.0015 psi)

Response Time: <1 second at a stable temperature

Stability (Drift): <0.01 kPa (0.0015 psi) per year



Temperature (Water Level Sensors MX2001-0x-S and MX2001-0x-Ti-S):

Operation Range: -20 ° to 50 ° C (-4 ° to 122 ° F)

Accuracy: ± 0.44 ° C from 0 ° to 50 ° C (± 0.79 ° F from 32 ° to 122 ° F)

Resolution: 0.1 ° C to 25 ° C (0.18 ° F to 77 ° F)

Response Time (90%): 5 minutes in water (typical)

Stability (Drift): 0.1 ° C (0.18 ° F) per year

* Water Level Accuracy: With accurate reference water level measurement, known water density, and a stable temperature environment. System Water Level Accuracy equals the sum of the Barometric Water Level Accuracy plus the selected Water Level Accuracy sensor.

** Raw Pressure Accuracy: Absolute pressure sensor accuracy includes all sensor drift, temperature, and hysteresis-induced errors.

*** Changes in Temperature: Allow 20 minutes in water to achieve full temperature compensation of the pressure sensor. There can be up to 0.5% of additional error due to rapid temperature changes.

Measurement accuracy also depends on temperature response time.

- Estación MicroRX HOBO RX2100
- Bolsita de grasa
- Bridas
- Tornillos y arandelas
- Seis baterías de litio AA (estación alimentada por batería RX2103)
- Paquete de baterías (estación de energía solar RX2104)
