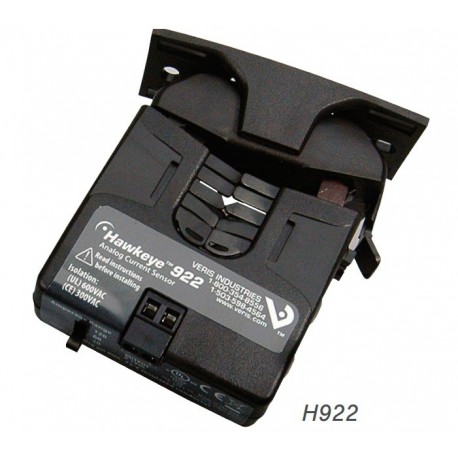

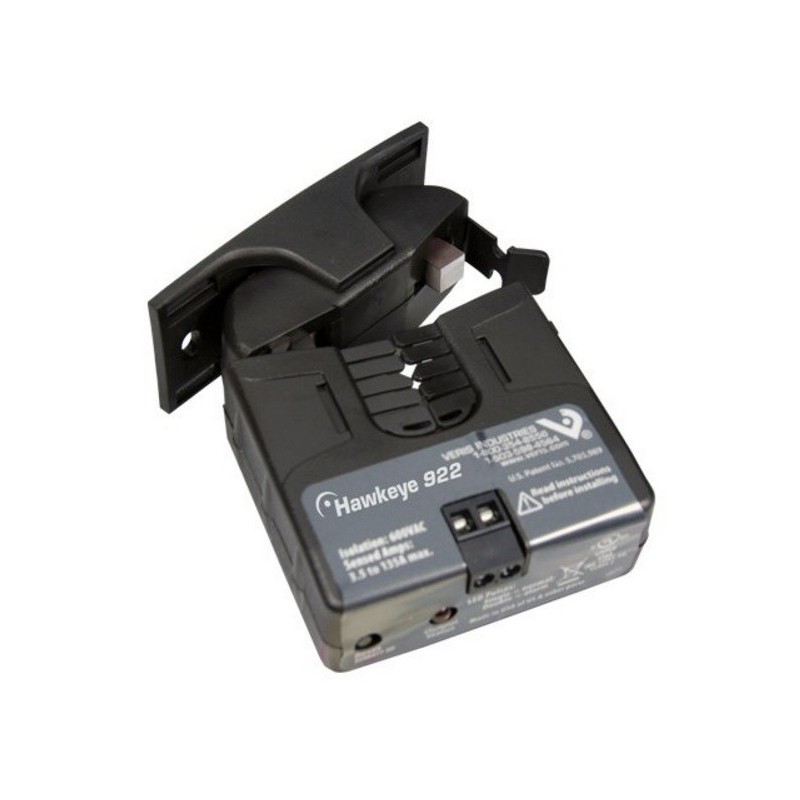

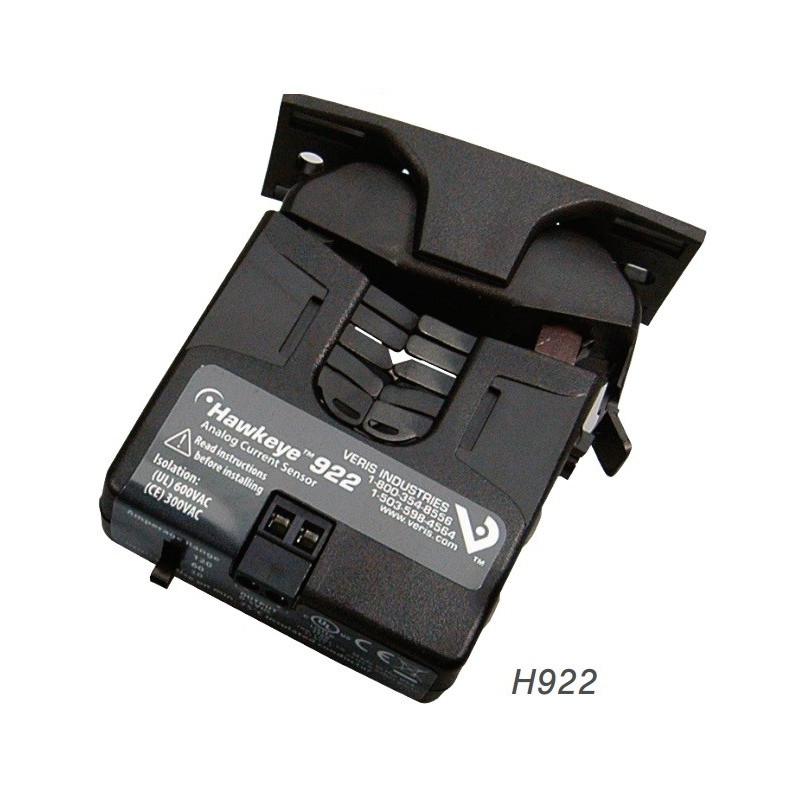

H922 Open Core AC Current Transducer (0-5VDC output)
Split Core Veris AC Current Transducer (0-5VDC output).
Sensor with induced power from monitored conductor.
- Sensor Power Induced from monitored conductor
- Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)
- Frequency 50/60Hz nominal
- Temperature Range -15° to 60°C (5° to 140°F)
- Humidity Range 10-90% RH, non-condensing
- Accuracy ±2% F.S. from 10% to 100% (selected range)
- Response Time 2 sec.
- Terminal Block Maximum Wire Size 14 AWG
- Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)
- Agency Approvals UL 508 open device listing CE:EN61010-1:2001-2, CAT III, deg. 2, basic insulation
