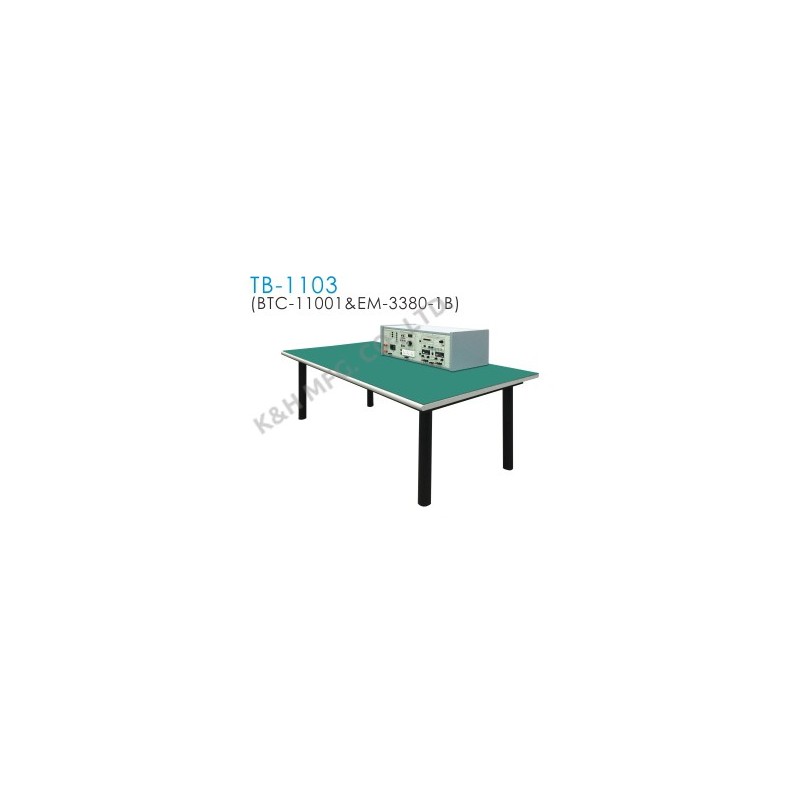

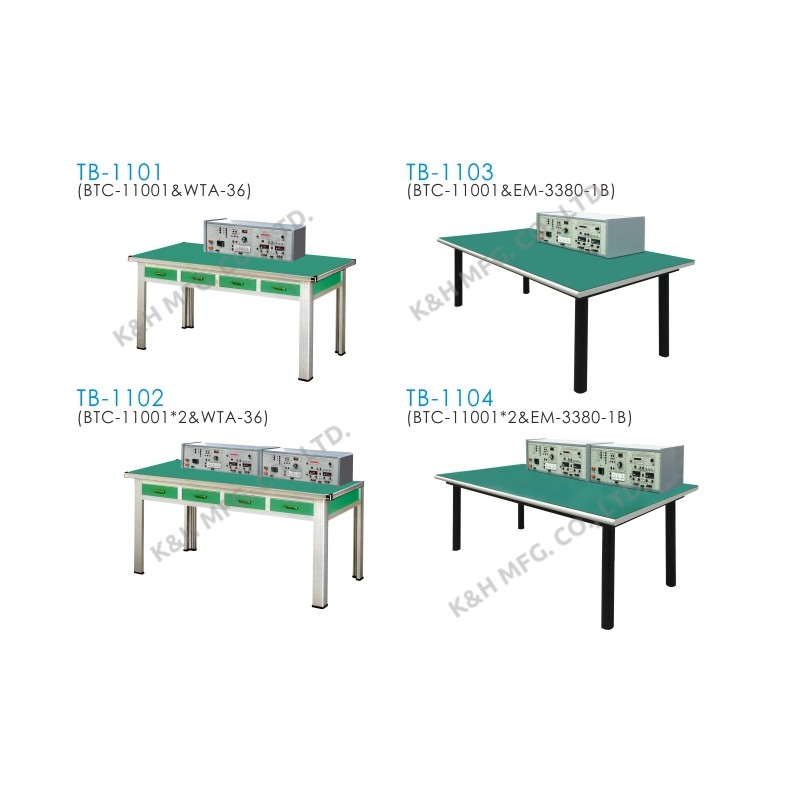

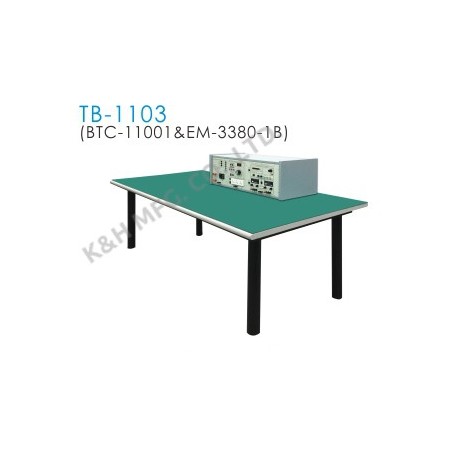

TB-1103 Training Bench (BTC-11001 Bench Top Console + EM-3380-1B Working Table)

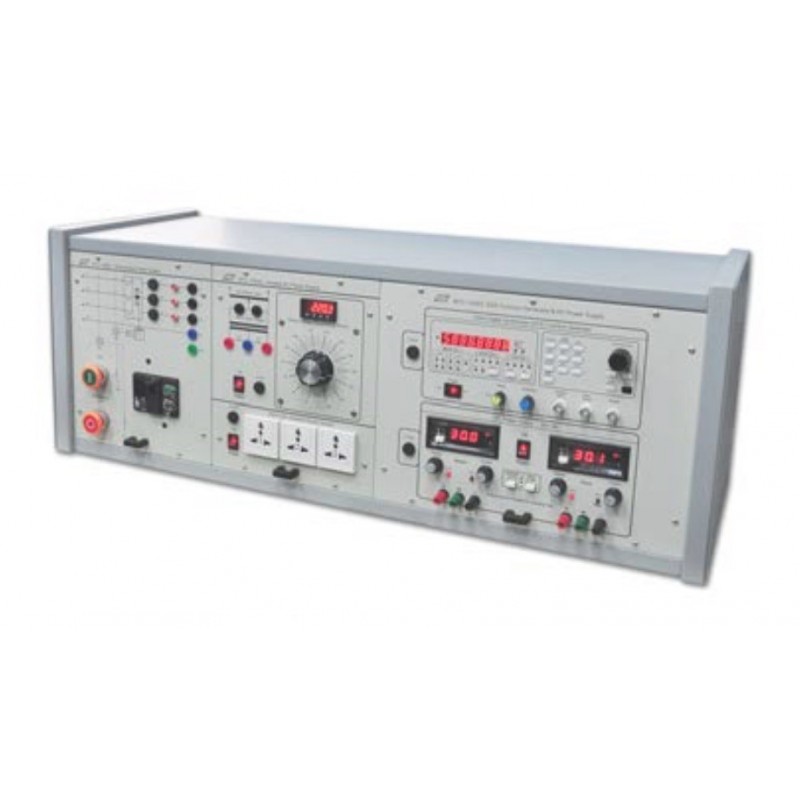

* BTC-11001 Bench Top Console
(BTC-10001 + BTC-10002 + BTC-10003)

• BTC-10001 Three-phase power supply.

(1) Overcurrent / Leakage protection switch
(2) Start and Emergency button
(3) Input Voltage : 3Ø 220V
(4) Rating Output : 3Ø 220V/10A
(5) Fuse protection set
(6) Output : 4mm safety sockets

• BTC-10002 Variable AC Power Supply

(1) Input Voltage : 1Ø 220V
(2) Output Voltage : 1Ø 0~260V/2A
(3) Fuse protection set
(4) Output : 4mm safety sockets

• BTC-10003 Function Generator Direct Digital Synthesizer (DDS) and DC power supply

+Direct Digital Synthesizer (DDS) Function Generator

(1) - Waveform : Sine, Triangle ,Square, Ramp, Ramn,
Noise, Arb, SEQ
     - Frequency : Sine, Square, Ramp, Arb : 10mHz~5MHz Triangle : 10mHz~2MHz

(2) Setting : Keyboard & Encoder

(3) Display : 8-digit 7-segment

(4) Amplitude : 10mHz~100KHz (20Vpp)
                       100KHz~1MHz (15Vpp)
                       1MHz~5MHz (12Vpp)

(5) Square Duty Cycle : 10%~90%

(6) Modulation Mode : AM, FM Source : EXT / INT

(7) SWEEP :
- Waveform : Sine , Square , Triangle , Ramp Frequency : 10mHz~2MHz
- Mode : Linear / Log
- Source : EXT / INT
- Internal Sweep Period : 1μs~500s (10 Section)

(8) Arbitrary :
- Vertical Resolution : 10Bit
- Wave Length : 1024 points
- Range : Start / End Point Setting
- Sample Rate : 10mHz~100MHz (10 Section)

(9) Sequencer Setting Mode :
Waveform, Frequency, Amplitude, Duration Max Sets : 128

(10) Output Impedance : 50Ω(Typical)

(11) Counter
Function : Frequency, Period, Positive / Negtive Pulse Width, Encoder Frequency Counter : 1Hz~100MHz (8DIG) ECL Level
Period, Pulse Counter : 10nS~100Sec (Hi/Low/Period) ECL Level Encoder Counter : A/B Phase : Max Rate 1MHz (8DIG) TTL Level

+ DC Power supply

(1) Dual Output : 0~±30V / 3A (2) Constant Voltage

(3) Constant Current

(4) Tracking Operation:
Tracking error, ≤0.3% +5mV @maximum rating

(5) Protection:
Current limits, For outputs overrate or outputs shortage

(6) Digital Meter:
3 digits display, each one can be selected to monitor output voltage and output current

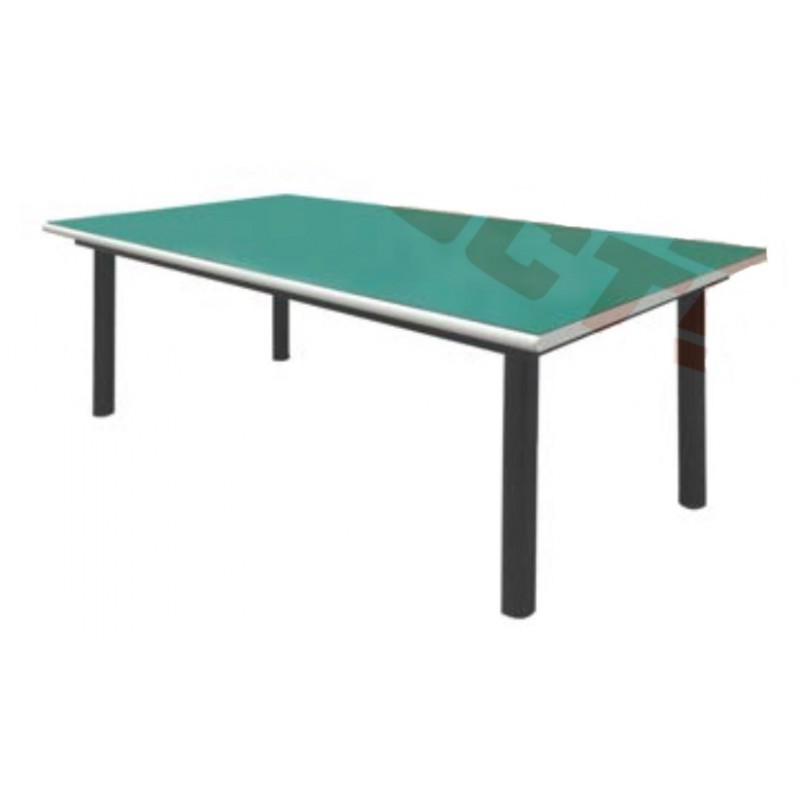

* EM-3380-1B Working Table

1. Dimension: 1800(W) x 900(D) x 780(H) mm, ±5%
2. Table pad : Size same as tabletop; 5m/m rubber pad

** Optional:

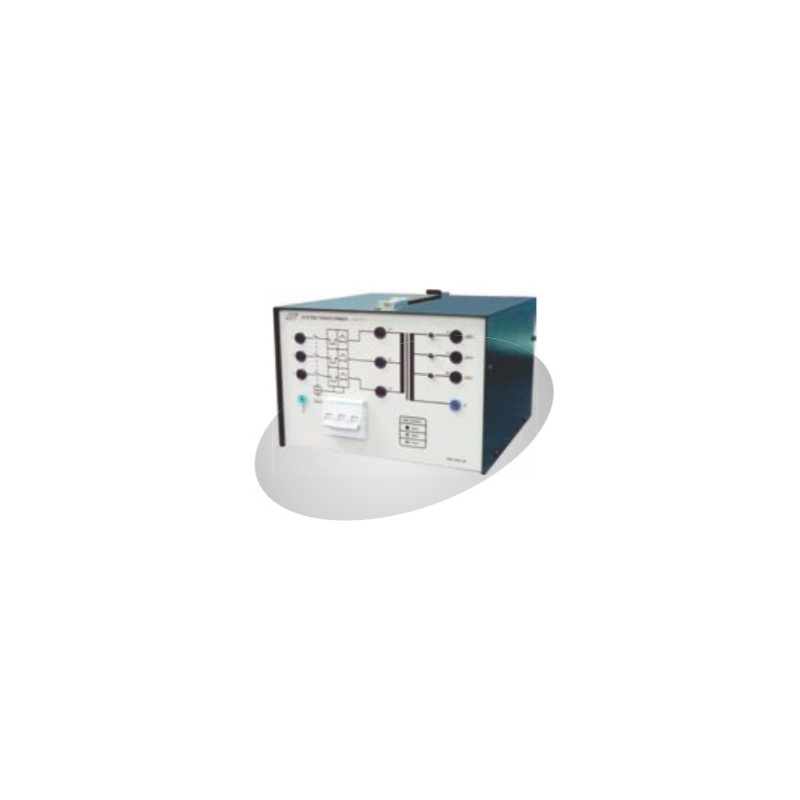

• EM-3340-3B System Transformer
