Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Scientech2711 Lamp Dimmer

Reference: Scientech2711 - Manufacturer: SCIENTECH TECHNOLOGIES

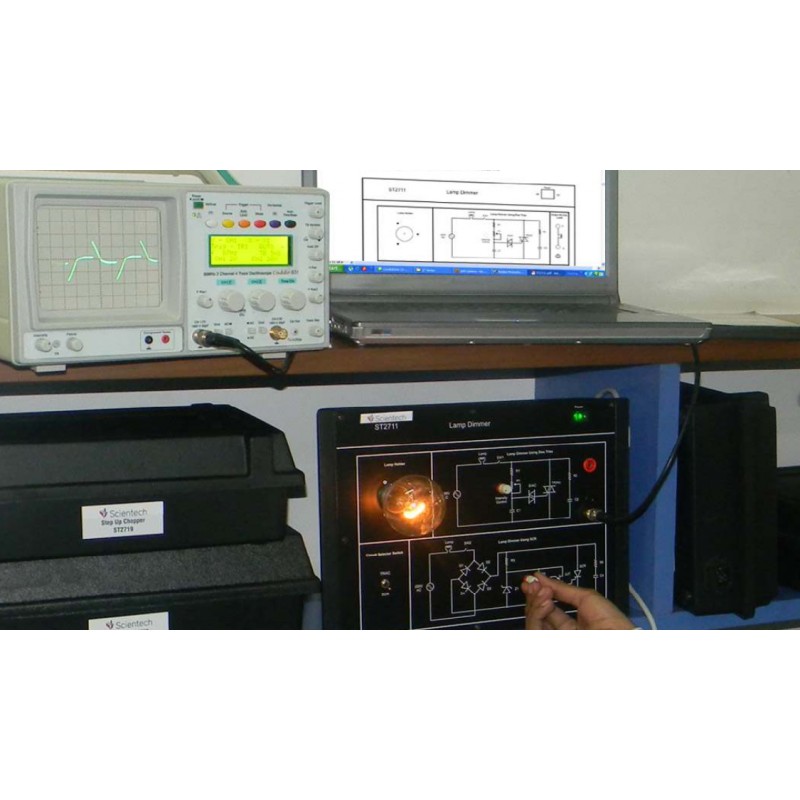

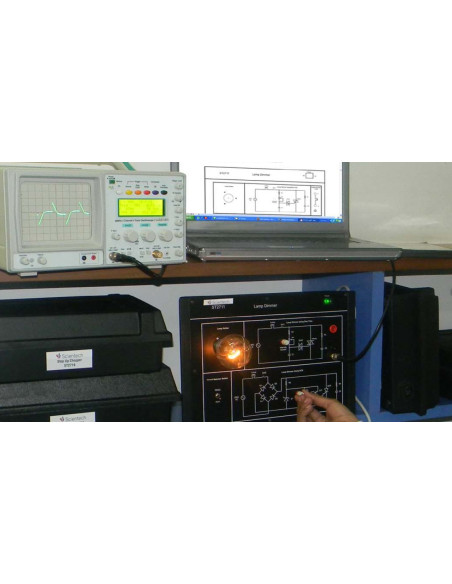

Scientech 2711 is a comprehensive learning platform which is very useful for Students to understand the application of Thyristor in intensity control.

Two firing methods are provided with this platform internal power attenuattor is included for observation of high voltage signals on the Oscilloscope. This platform is provided with internal AC/DC power supplies & exhaustive learning material.

Built in Power Supply
Easy to operate and understand
On board two firing circuits
Gradual firing angle control up to 180 degree
In-built Power Isolation Circuit
Switch for selection of firing circuit

Study lamp dimmer using DIAC & TRIAC firing scheme
Study lamp dimmer using UJT firing scheme

Category: Platforms

Download (279.16KB)
