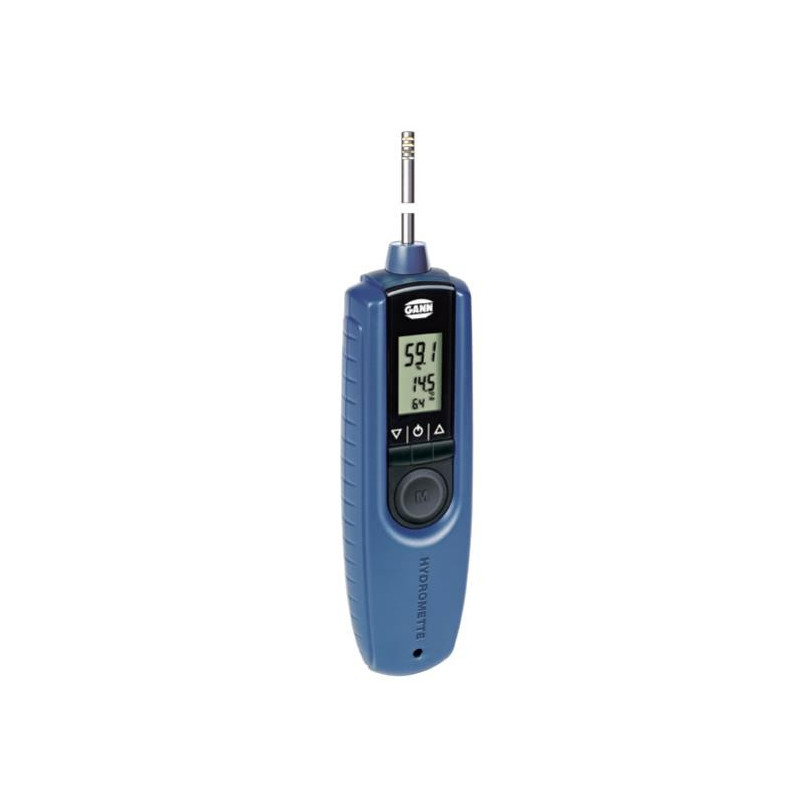

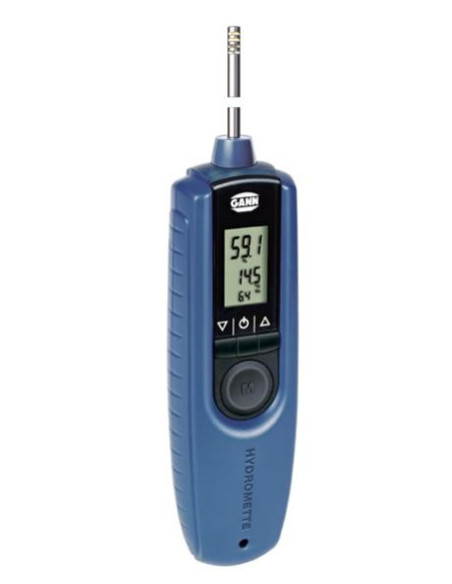

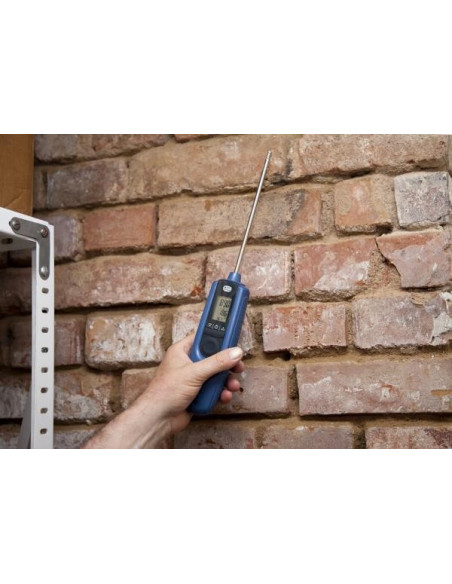

COMPACT RH-T 165 Thermohygrometer for Temperature and Humidity Relative Accurate

The BL Compact RH-T 165 is an accurate thermo-hydrometer designed for fast measurements of the relative humidity and air-temperature.
By means of programmed sorption isotherms weight/mass percent can be determined for diverse building and insulating materials as well as for hard and soft wood.

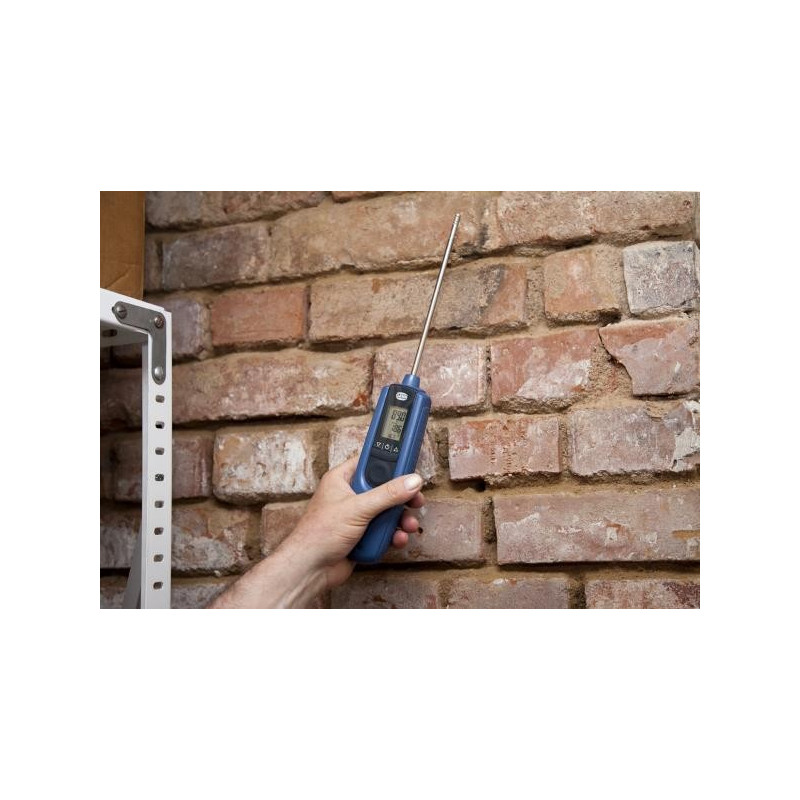

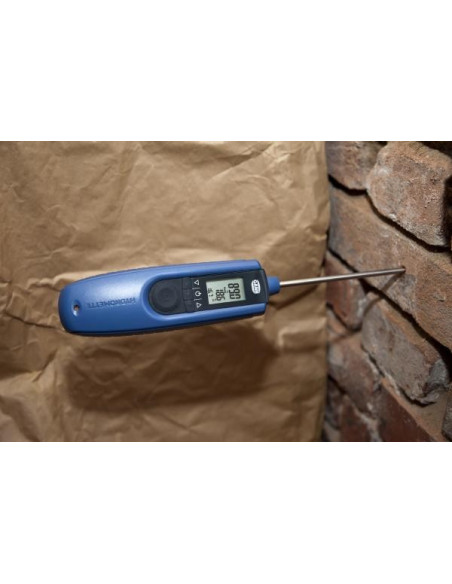

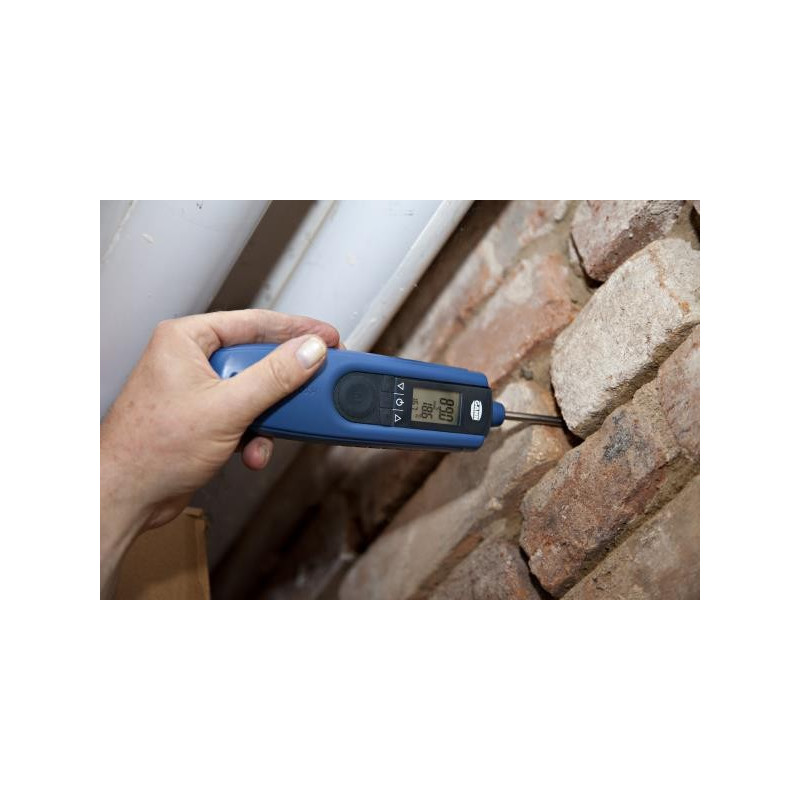

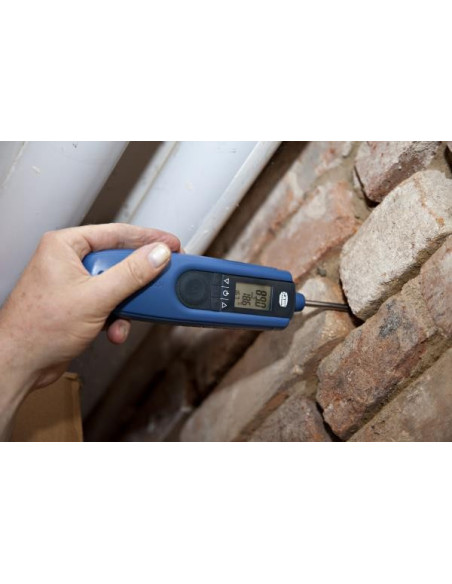

Due to its thin sensor tube the measure meter is suitable for a large area of applications. These include, for instance, analyses, expertise, the dehumidification industry and the structural duhumidification. Also the checking of whether building materials are ready for finishing for floor and wood covering can be counted among the areas of applications.

Three different measured values, which are clearly displayed, can be indicated simultaneously, e.g. the combination of relative humidity, air-temperature and dew point.

The device is delivered fully equipped with battery and plastic box.

Air-humidity:
5 - 95 % r.H.

Temperature:
-20° - +80°C

• Handy pocket-sized high-speed measure meter for fast single and series measurements
• Simultaneous indication of up to three measured values via a 3-line LCD, resolution: 0.1 % or 0.1° C
• Automatic calculation of dew point, the equilibrium moisture content of wood (EMC) *, the indication of moisture content in g/m³, enthalpy in kj/K, wet-bulb temperature in °C and water activity (aw value)
• Sorption isotherms for hard and soft wood as well as for 10 different types of building material
• Min / Max and Hold functions for measured values
• Storage of the latest 5 readings
• Automatic cut-off of the device

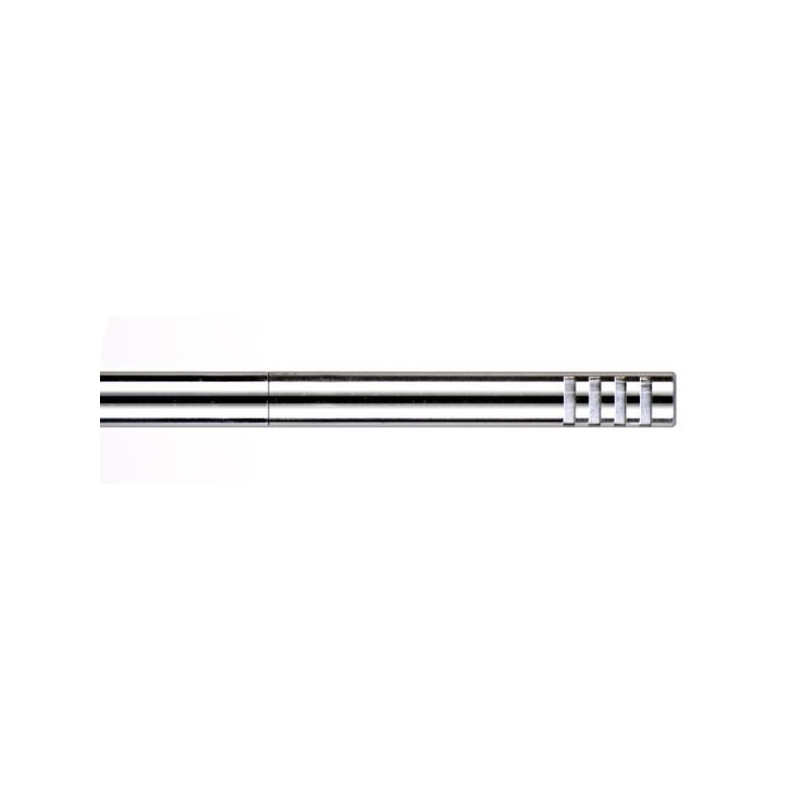

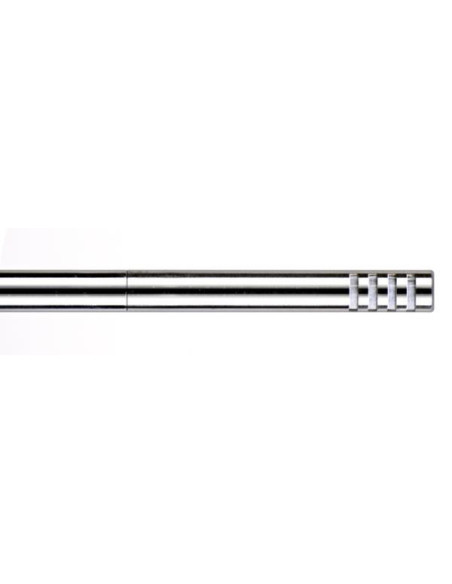

• Length of sensor tube: 160 x Ø 5,5 mm
• Power supply: 9 V dry cell or Ni-Cd accumulator (optional accessory)
• Size: 175 [L] x 50 [W] x 30 mm [H], weight approx. 160 g

• Total length: approx. 355 mm
