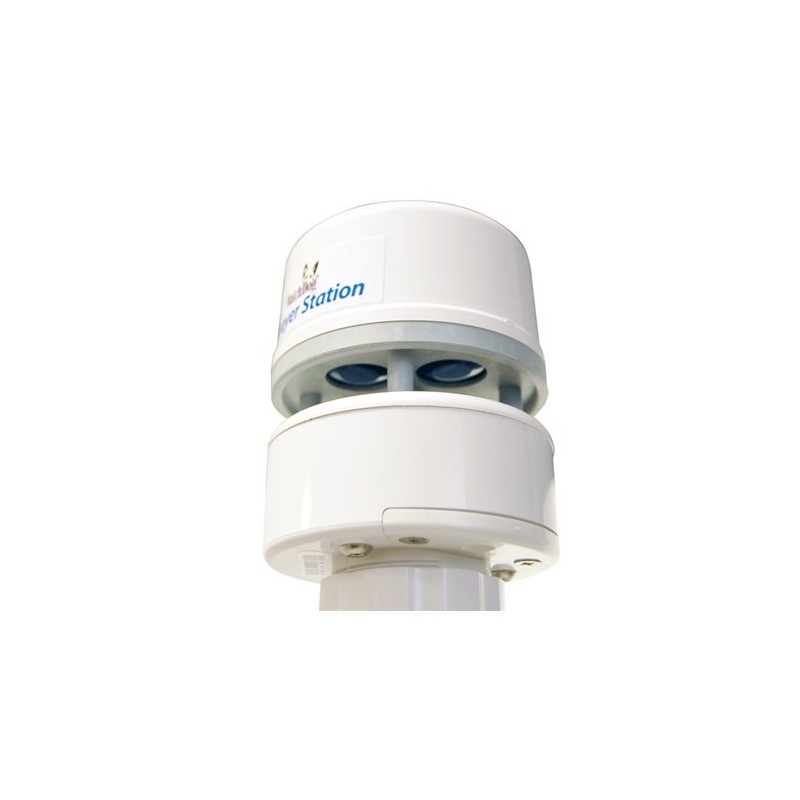

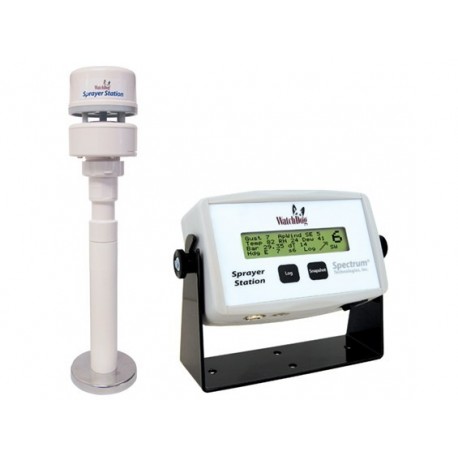

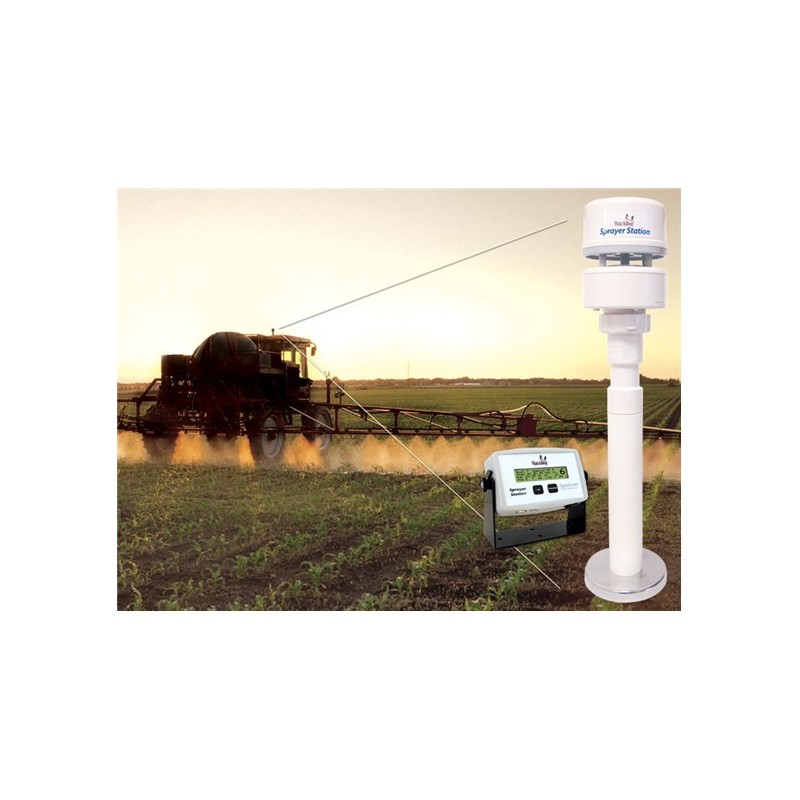

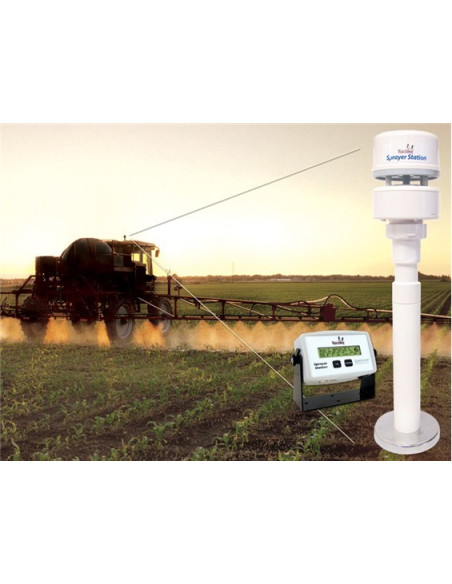

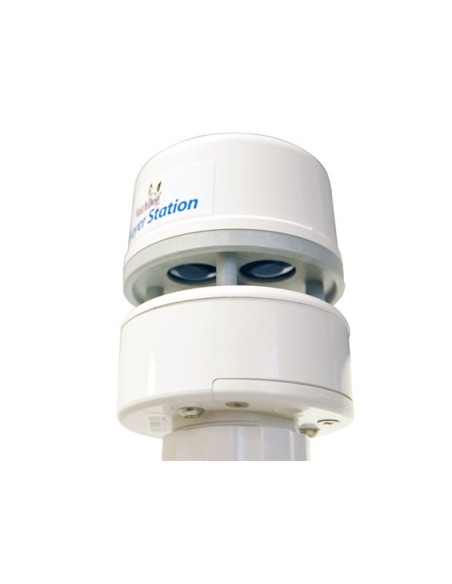

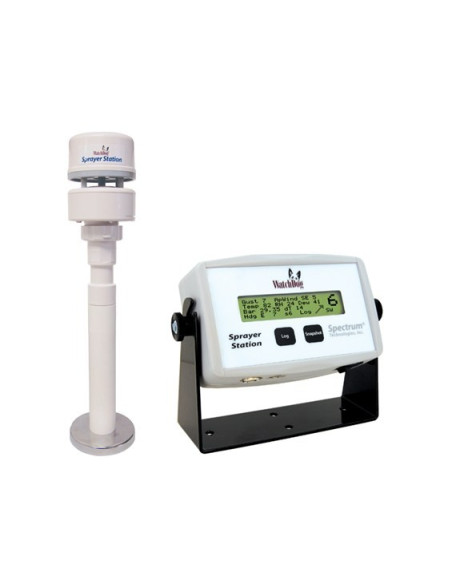

3349SSCH WatchDog Sprayer Station

Reduce pesticide drift complaints...and monitor your current conditions
Pesticide drift is increasingly important to commercial applicators.  Now you can monitor wind speed and direction and data log weather conditions with the ultrasonic WatchDog® Sprayer Station.  Accurate data helps pesticide applicators make important decisions regarding weather conditions that affect safety, drift, and proper pesticide application.  User controlled data logging of weather conditions provides evidence of suitable conditions for pesticide application.


• Smaller than a can of soda, this all-in-one weather station measures air temperature, humidity, dew point, wind chill, barometric pressure and apparent wind speed and direction
• Station uses an internal compass and GPS to adjust the wind sensor values by subtracting the vehicle speed and direction to compute the true wind speed and direction
• Field replaceable humidity sensor
• Handles adverse conditions with a UV-stabilized, compact housing that is fully waterproof and resistant to chemicals
• Reliability is enhanced by eliminating moving parts: the traditional wind vane and cups have been replaced with ultrasonic transducers
• Continuously log your weather parameters at a user-selectable rate or hit the snapshot button to capture current conditions

WatchDog Sprayer System Sensors:

• Apparent Wind Speed and Direction
• GPS: Course and Speed
• True Wind Speed and Direction (computed)
• Air Temperature
• Relative Humidity
• Dew Point (computed)
• Barometric Pressure

Wind Resolution - Speed:  0.1 mph (0.2 km/h); Direction 1°
Wind Speed Range:  0 to 90 mph (0 to 145 km/h)
Wind Speed Accuracy:  <12 mph (19 km/h): ± 1.1 mph (1.7 km/h) + 10%; >12 mph (19 km/h): ± 2.3 mph (3.7 km/h) or ± 5%
Wind Direction Accuracy:  4 to 11 mph (6 to 18 km/h): ±5°; >12 mph (19 km/h): ±2°
Wind Accuracy Temperature Range:  32° to 131°F (0° to 55°C)
Operating Temperature: -40° to 131°F (-40° to 55°C)
Temperature Accuracy:  ±1.8°F (±1°C) with wind above 4.6 mph (7.4 km/h)
Relative Humidity Range:  10 to 95%
Relative Humidity Accuracy: ±4% with wind above 4.6 mph (7.4 km/h)
Barometric Pressure Range:  24 to 33 in-Hg (800 to 1100 hPa)
Barometric Pressure Accuracy:  ± 0.029 in-Hg (± 1 hPa)
Power Supply Voltage:  9 to 40 VDC; Current: <70 mA

Console Specifications:

Supply Voltage                                            10-16VDC (nominal 12VDC)

Supply Current                                             2 mA
