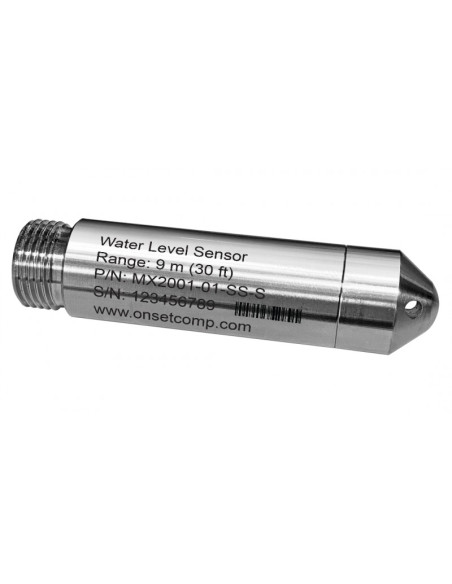

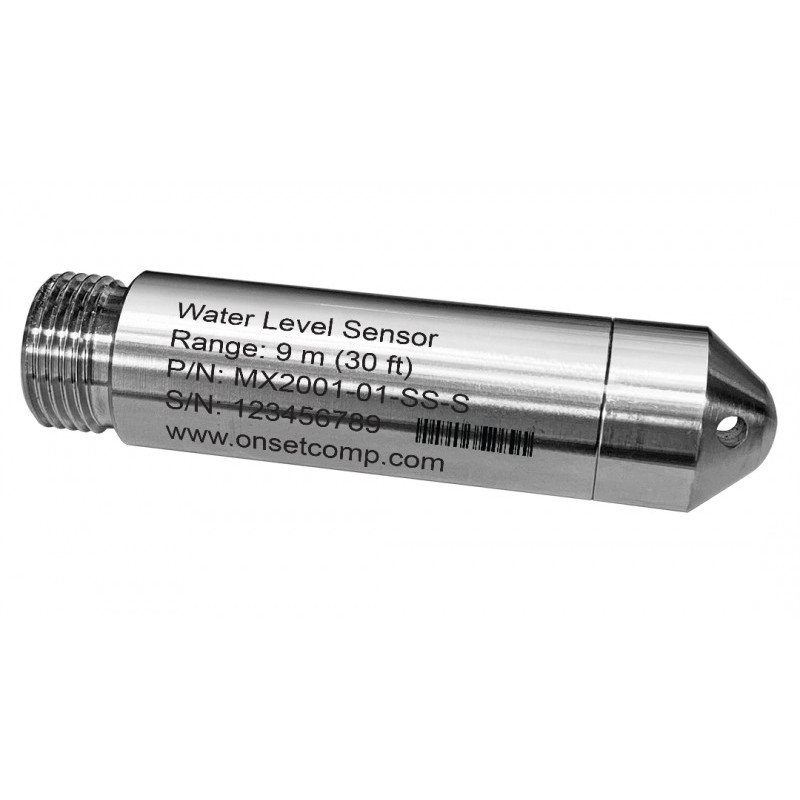

Water Level Sensor, Ref.: MX2001-04-SS-S

Reference

Manufacturer: Onset

Condition: New

Sensor Heads for Bluetooth Data Logger for Fresh Water (Water Level and Temperature) MX200 water level, water pressure and temperature.
They require cable and a data logger.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

415,00 €

tax excl.

Select Sensor

Add to wishlist

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Accessories

The Sensor measures:	Water Level, Pressure, Temperature

- Our MX2001-S Water Level Sensor is used with HOBO Bluetooth Low Energy Water Level Data Loggers (MX2001), the HOBO MicroRX Water Level Stations (RX2103 & RX2104), and the HOBO RX3000 Remote Monitoring Station for accurate water pressure, temperature, and water level measurements.

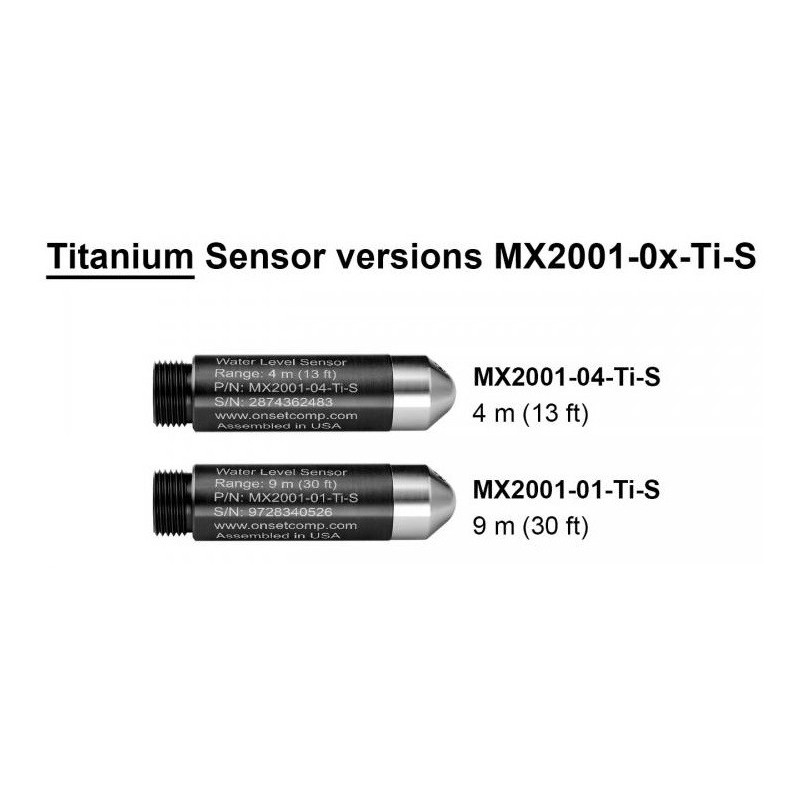

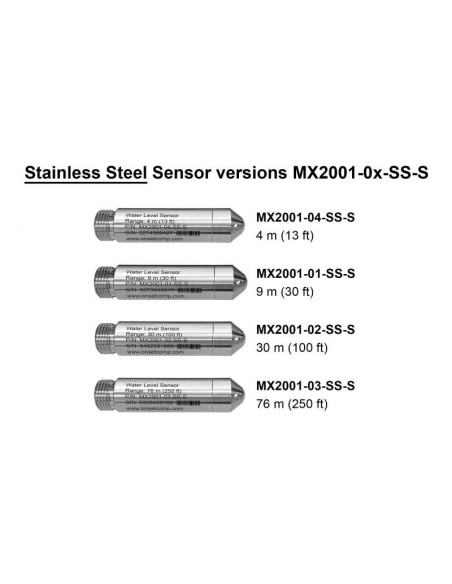

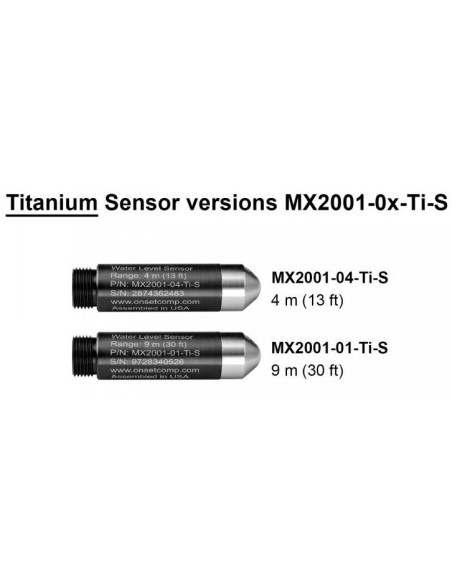

- The MX2001-S sensors are available in four depth ranges, as well as in stainless steel or titanium (titanium recommended for use in saltwater).

Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S
Operation Range	0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F)
Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*	Typical error: 0.05% FS, 0.5 cm (0.015 ft) water Maximum error: 0.1% FS, 1.0 cm (0.03 ft) water
Raw Pressure Accuracy**	0.3% FS, 0.62 kPa (0.09 psi) maximum error
Resolution	<0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
Pressure Response Time (90%)***	<1 second at a stable temperature
Dimensions	2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight	Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water
Wetted Materials	Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing, PVC end cap; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating	IP68
Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S
Operation Range	0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F)
Burst Pressure	500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy*	Typical error: 0.05% FS, 1.5 cm (0.05 ft) water Maximum error: 0.1% FS, 3.0 cm (0.1 ft) water
Raw Pressure Accuracy**	0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution	<0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%)***	<1 second at a stable temperature
Dimensions	2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight	Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water
Wetted Materials	Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating	IP68
Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S
Operation Range	0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F)
Burst Pressure	1,200 kPa (174 psia) or 112 m (368 ft) depth
Water Level Accuracy*	Typical error: 0.05% FS, 3.8 cm (0.125 ft) water Maximum error: 0.1% FS, 7.6 cm (0.25 ft) water
Raw Pressure Accuracy**	0.3% FS, 2.55 kPa (0.37 psi) maximum error
Resolution	<0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water
Pressure Response Time (90%)***	<1 second at a stable temperature
Dimensions	2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight	Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water
Wetted Materials	Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating	IP68
Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S
Operation Range	0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory Calibrated Range	69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F)
Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy*	Typical error: 0.075% FS, 0.3 cm (0.01 ft) water Maximum error: 0.15% FS, 0.6 cm (0.02 ft) water
Raw Pressure Accuracy**	0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution	<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%)***	<1 second at a stable temperature
Dimensions	2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight	Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water
Wetted Materials	Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating	IP68
Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S)
Operation Range	-20 to 50C (-4 to 122F)
Accuracy	0.44C from 0 to 50C (0.79F from 32 to 122F), see Plot A
Resolution	0.1C at 25C (0.18F at 77F), see Plot A
Response Time (90%)	5 minutes in water (typical)
Stability (Drift)	0.1C (0.18F) per year
Dimensions	2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight	Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water
Wetted Materials	Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating	IP68

* Water Level Accuracy: With accurate reference water level measurement, known water density, and a stable temperature environment. System Water Level Accuracy equals the sum of the Barometric Water Level Accuracy plus the selected sensor Water Level Accuracy.

** Raw Pressure Accuracy: Absolute pressure sensor accuracy includes all sensor drift, temperature, and hysteresis-induced errors.

*** Changes in Temperature: Allow 20 minutes in water to achieve full temperature compensation of the pressure sensor. There can be up to 0.5% of additional error due to rapid temperature changes. Measurement accuracy also depends on temperature response time.

Typical error: 0.05% FS, 0.5 cm (0.015 ft) water
Maximum error: 0.1% FS, 1.0 cm (0.03 ft) water
