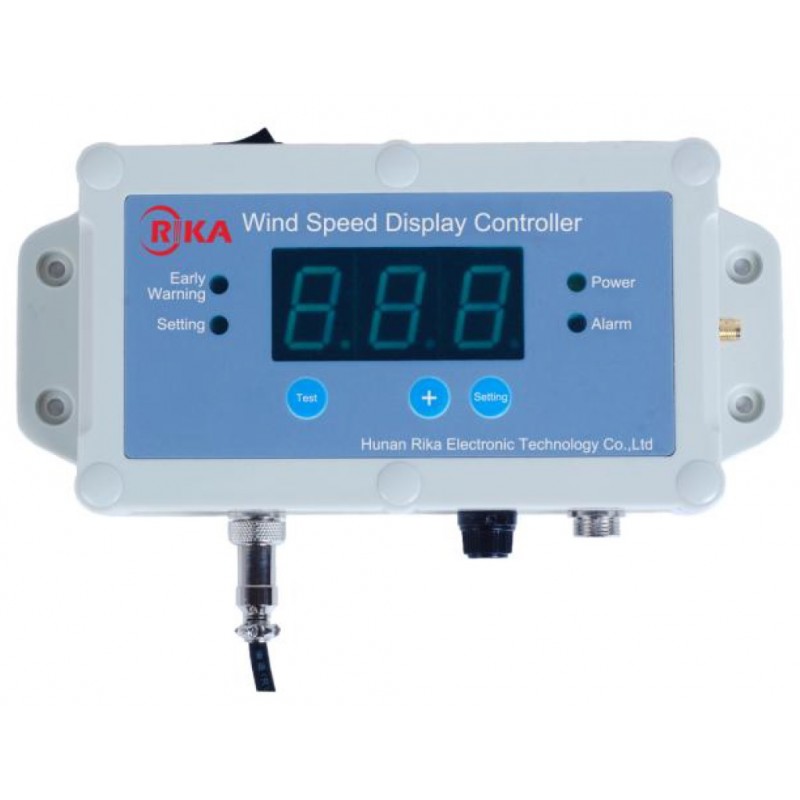

AO-150-01 Wind Speed Display Controller

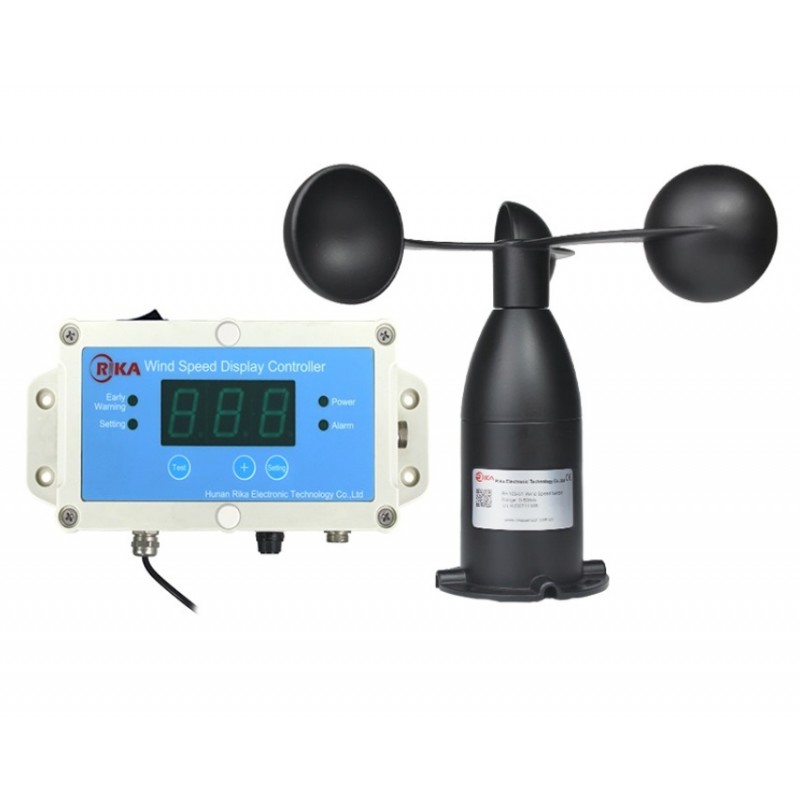

AO-150-01 Wind speed controller with optional anemometer

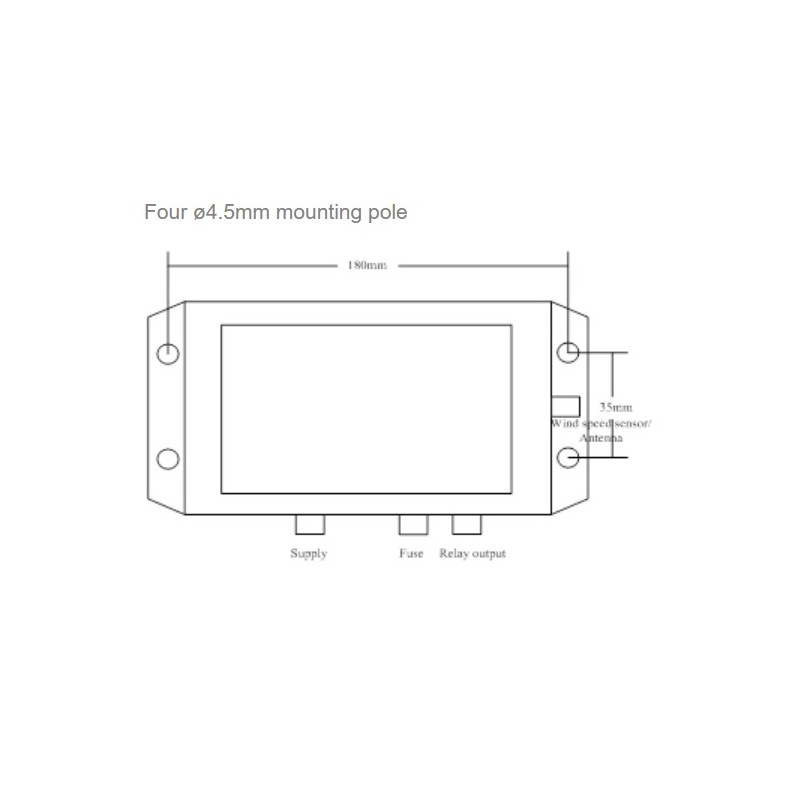

AO-150-01 Wind Speed Display Controller (Dimensions)

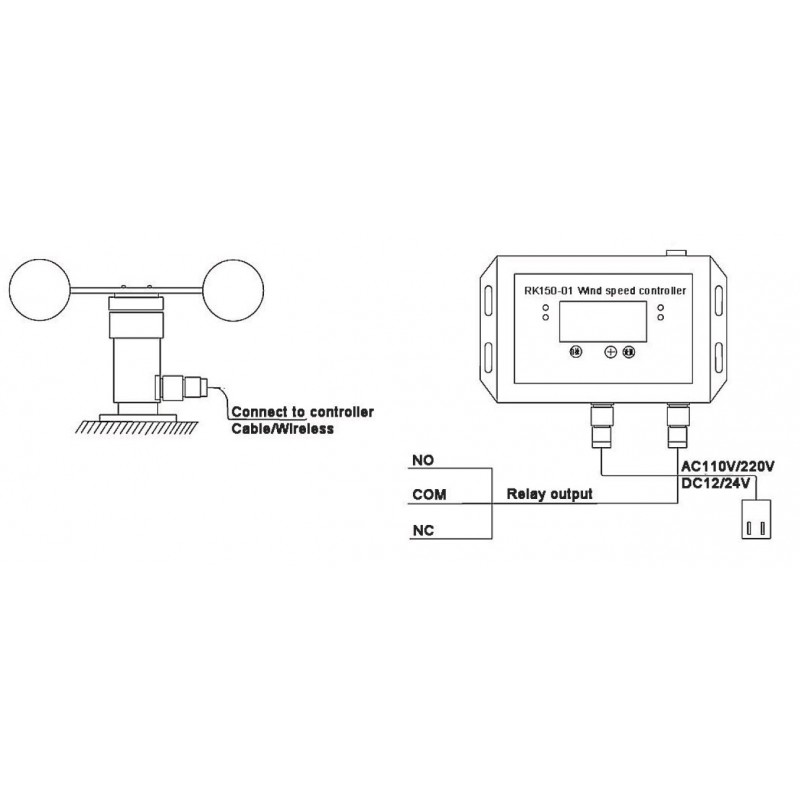

AO-150-01 connections Wind speed controller

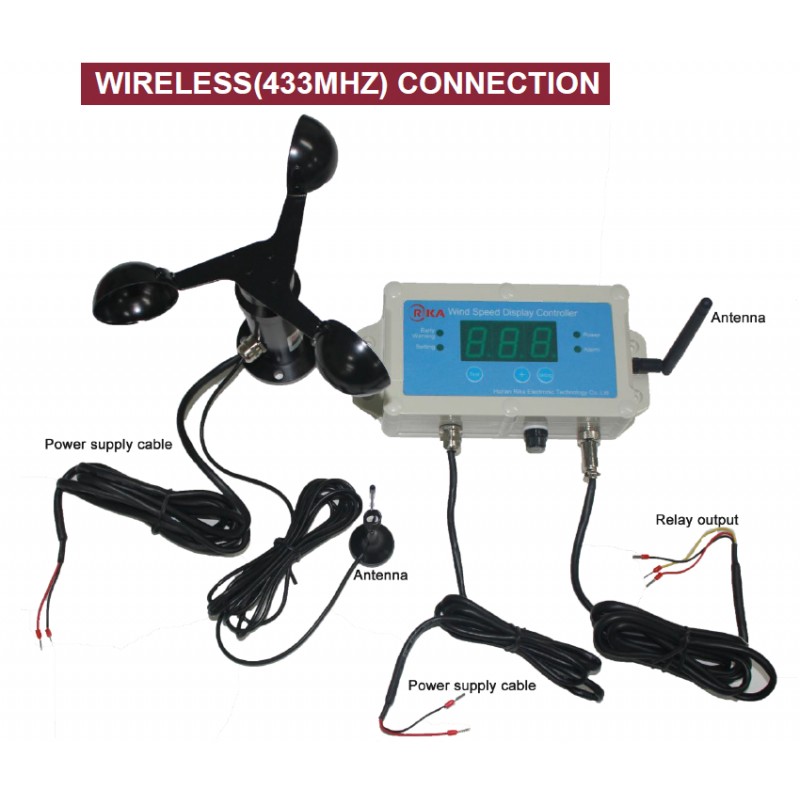

AO-150-01 Wireless version of the Controller with optional Anemometer
AO-150-01 Wind Speed Display Controller
AO-150-01 Wind speed controller with optional anemometer
AO-150-01 Wind Speed Display Controller (Dimensions)
AO-150-01 connections Wind speed controller
AO-150-01 Wireless version of the Controller with optional Anemometer

AO-150-01 Wind Speed Controller with Display (Cabled and Wireless version)

Reference: AO-150-01 - Manufacturer: AO-Electronics

The AO-150-01 wind speed display controller gives a visual indication of real-time wind speed, with a LED digital display.
AO-150-01 is the companion to our AO-100-01 Wind Speed Sensor Anemometer (Anemometer Not Included. View/choose models).

Select Model
€260.00
Tax excluded Envío: 3 a 6 semanas

Quantity Unit discount You Save
3 10% €78.00
6 15% €234.00
11 20% €572.00


It has a built in microprocessor with high performance functions  and, low power consumption.
The wind speed "early warning" value and "alarm" value can be set by buttons on the panel.
When alarming, the signal output can be controlled by relay.

FEATURES

  * Easy operation
  * Visual display
  * Real-time monitoring
  * Rapid response
  * Low power consumption
  * With self-checking function
  * 2 relays correspond to early warning and alarm

Items

Specification

Range

0-60m/s

 0-216km/h

Resolution(diaplay)

0.1m/s

 0.1km/h(<100km/h) 1km/h(≥100km/h)

Accuracy(sensor)

±1m/s

Alarm response time

<100mS

Type of alarm

Sound and light alarm

Contact capacity

5A@30VDC

Early warning

Any value within 1 m/s ~40 m/s, the early warning value must be lower than the alarm value

 Any value within 1km/h ~99km/h, the early warning value must be lower than the alarm value

Alarm

Any value within 1 m/s~40 m/s

 Any value within 1km/h ~144km/h

Operating Temperature

-30℃-+70℃

Power supply

AC100-240V/DC12V/DC24V
Power consumption With wire:<3W(sensor & controller)
Wireless:sensor: 0.25W,controller: 2.5W

Ingress Protection

Controller:IP54,wind speed sensor:IP65

Weight(unpacked)

Controller:315g,wind speed sensor:240g

Main material

Controller:ABS,wind speed sensor:Aluminum alloy & 304SS

Storage Condition

10℃-50℃@20%-90%RH

   * Weather monitoring stations

   * Safety monitoring of high altitude equipment
   * Ports
   * Solar and wind power generation
   * Mobile weather monitoring vehicles
   * Marine vessels
   * Remote airports & helipads

Example: AO-150-01BAML15000 Range: 0-60m/s, Supply:100-240VAC, Unit: m/s, Cable Length:15m.
Example: AO-150-01W: Wireless Model

With Display
LCD
The Sensor measures:
Air Speed m/sec
Power Supply:
AC100-240V/DC12V/DC24V
