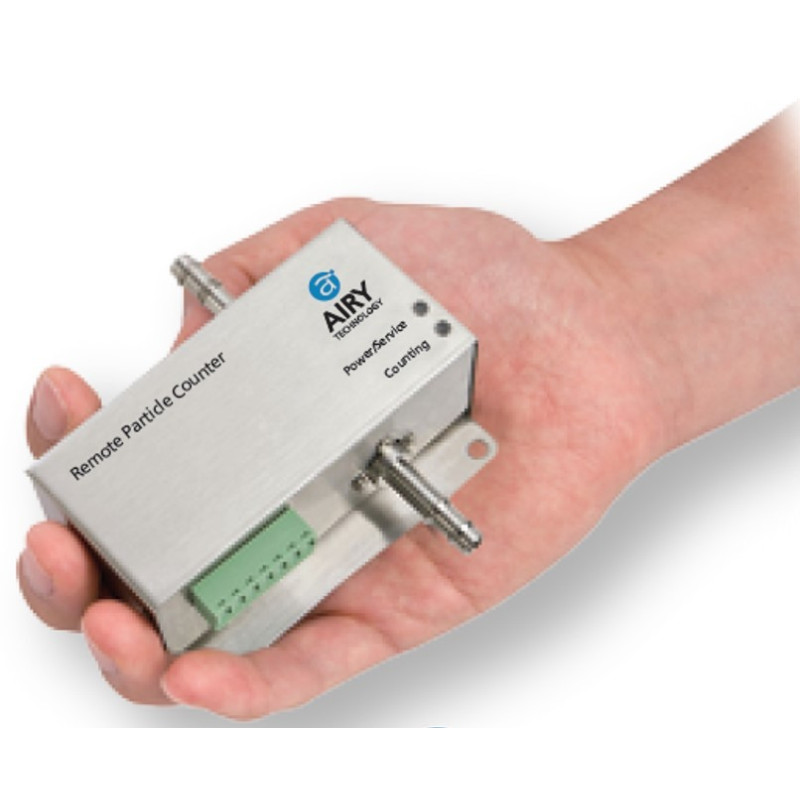

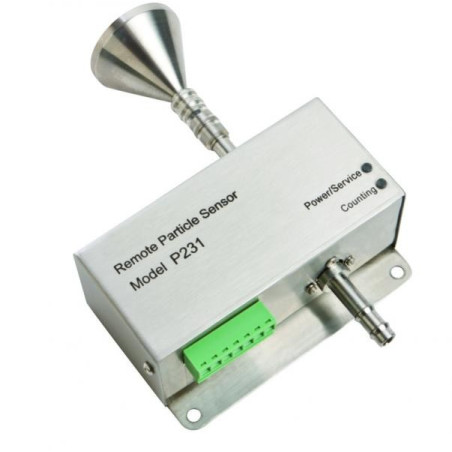

P231 Remote Particle Counter (0.5 µm and 5.0 µm)

Reference P231

Manufacturer: AIRY TECHNOLOGY

Condition: New

Model P231

At AlphaOmega-Electronics you will find the best range of Data Loggers and at the most competitive prices.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particles in the Air
Function:	Research-Industrial-Health

The Airy Technology P231 remote particle counter measures (0.5 µm and 5.0 µm) with a flow rate of 1.0 CFM (28.3 LPM).

ntegration is easy into a real-time monitoring or building management system via Modbus™ RTU or Modbus™ ASCII.

P231 is the smallest remote particle counter in the market and has easy mounting options.

Airy Technology P231 complies with ISO 21501-4 and includes a 2 year limited warranty.

Channel Sizes	(0.5 µm and 5.0 µm)
Counting Efficiency	(50% at 0.5 μm); 100% for particles > 0.75 μm (per JIS)
Concentration Limit	500,000 particles / ft3 at 5% coincidence loss
Light Source	Long Life Laser Diode
Zero Count Level	<1 count / 5 minutes (per JIS B9921)
Size Resolution	<15% at 0.7 μm (per ISO 21501-4)
Flow Rate	1.0 CFM (28.3 LPM)
Flow Control	Critical orifice
Vacuum Requirements	External vacuum >15” (38.1 cm) of Hg
Calibration	NIST traceable
Sample Probe/Tubing	Isokinetic sampling probe
Communication Interface	Modbus™ RTU or Modbus™ ASCII outputs (specified upon order)
Power	9-30 VDC
Dimensions (L x W x H)	1.8” x 3.7“ x 1.5” (4.5 cm x 9.3 cm x 3.8 cm) does not include probes
Weight	0.62 lb (0.28 kg)
Standards	ISO 21501-4 and JIS B9921
Warranty	2 year limited warranty
Operating Conditions	5° to 35°C 20% to 95%RH non-condensing
Storage Conditions	-20° to 50°C Up to 98%RH non-condensing
Included Accessories	User manual
Optional Accessories	Purge filter, data cable, vacuum and sample tubing, Isokinetic sampling probe
