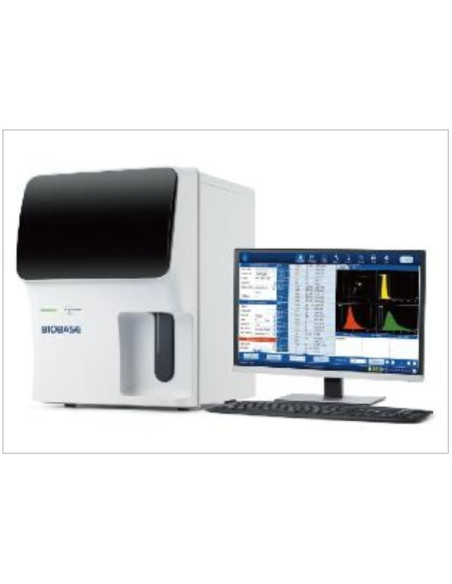

BK-6330 5-part Auto Hematology Analyzer (60 tests/hour)

Model

BK-6330

Throughput

60 tests/hour

Assay Items

5 parts, 29 parameters, 3 histograms

Principle

Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide free reagent for HGB test

Test Mode

CBC mode, CBC+DIFF mode

Venous whole blood, Capillary whole blood and Prediluted

Parameters

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#

4 Research parameter: ALY%, ALY#, IG%, IG#

Performance

Item

Linearity range

 Carry Over

CV

WBC

0-300x109/L

 ≤ 0.5%

≤ 2.0 %

RBC

0-8x1012/L

 ≤ 0.5%

≤ 1.5 %

HGB

0-250g/L

 ≤ 0.5%

≤ 1.5 %

PLT

0-3000x109/L

 ≤ 1.0%

≤ 4.0 %

Sample Volume

CBC+DIFF mode：≤20ul

CBC mode：≤10ul

Storage

100,000 results including histogram, scattergram and patient information

Interface

1LAN port

Bi-direction LIS, support HL7 protocol, External RFID reader

Power Supply

110/220V±10% , 60/50Hz

Package Size

670*590*790mm

Gross Weight

53kg
