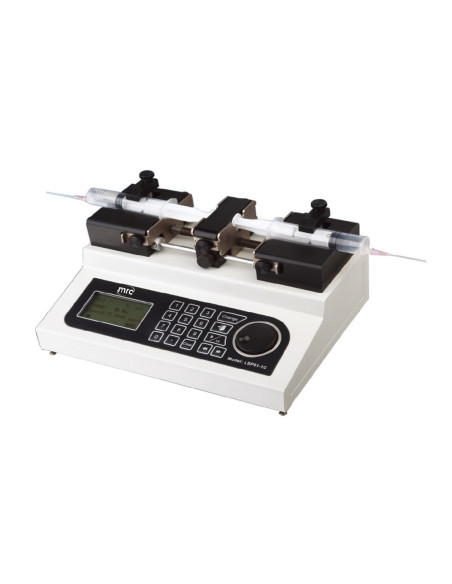

LSP01-1C Laboratorial Systematic Syringe Pump

► Pusher advance per micro step: 0.156µm
► Linear speed: 5µm/min-65mm/min
► Linear speed resolution: 5µm/min
► Linear travel accuracy: ≤±0.5% when travel ≥30% of pump stroke
► Linear force (max.): >90N
► Syringe selection: Built-in syringe branches, sizes and IDs for selection
► Syringe user-defined: Can store four user-defined syringe IDs
► Flow rate calibration: Improve flow rate accuracy
► Running parameters setting: Dispensing volume, infusion lime, etc.
► Display setting: Display volume, flow rate or linear speed
► Power-off memory: Storing the running parameters automatically
► Status signal output: 10C gate signal to indicate start/stop
► Control signal input: Falling edge or TTL signal to control Start/stop
► Communication: RS485
► Dimensions: (LxWxH)280x220x140 (mm)
► Weight: 3.6kg
► Power supply: AC 90V-260V/15W
► Operating temperature: 0 to 40°C
► Relative humidity: <80%

◆ Mainly used in laboratorial applications.

◆ High accuracy, suitable for continuous transferring of low-flow liquid.
