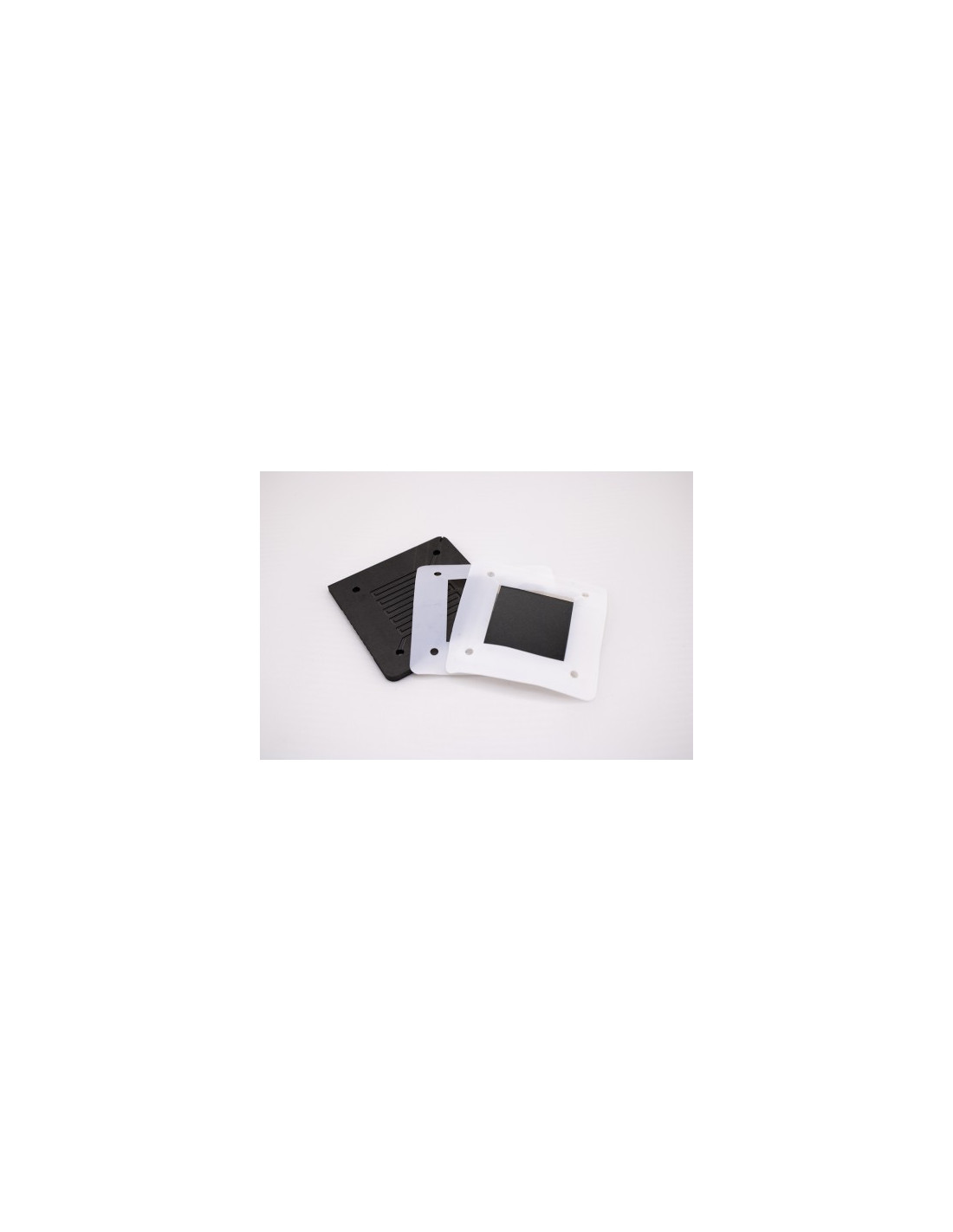

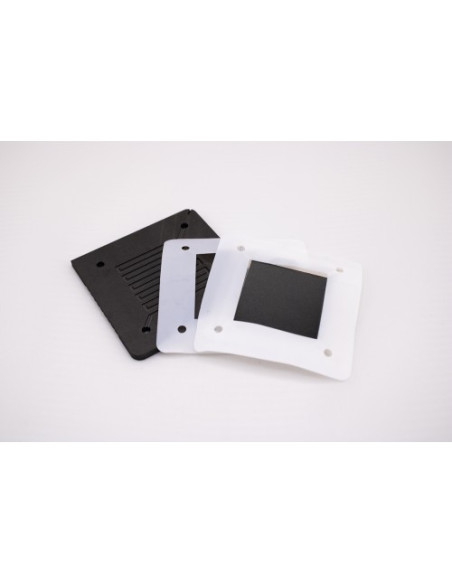

Adapta-Stack-Kit expansion kit Ref: 12120063
Expansion kit for the Adapta-Stack that adds PEM cells to the system. Includes bipolar or composite plates, high performance PEM MEAs and gaskets according to the selected configuration.
The Adapta-Stack Expansion Kit allows the system to be expanded by adding additional PEM cells. It is intended to increase stack capacity while maintaining compatibility with the Adapta-Stack platform.
The 1-cell kit includes 1 bipolar or composite plate, 1 high performance PEM MEA and 2 gaskets. The 5-cell kit includes 4 bipolar or composite plates, 5 high performance PEM MEAs and 10 gaskets.
This kit is not compatible with the DMFC Adapta-Stack version. A dedicated DMFC expansion kit must be used for that variant.
- Reference: 12120063
- Product: Adapta-Stack Expansion Kit
- Function: add PEM cells to the Adapta-Stack system
- 1-cell kit: 1 bipolar/composite plate, 1 high performance PEM MEA, 2 gaskets
- 5-cell kit: 4 bipolar/composite plates, 5 high performance PEM MEAs, 10 gaskets
- Compatibility: Adapta-Stack
- Not compatible with: DMFC Adapta-Stack
- Listed dimensions: 10 x 8 x 2 in
