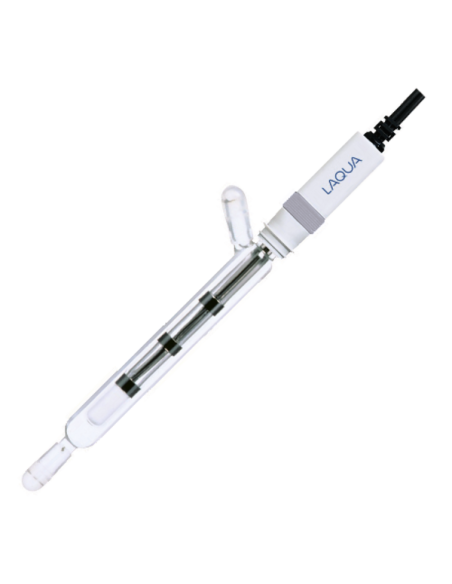

3562-10D LAQUA Electrode for Conductivity Crystal Body (Flow Type / General Use) Conductivity Cell
Conductivity Electrode (with 1m cable, BNC and phono jack)
- For general purpose use
- Glass body, Platinum/Platinum black, k=1, conductivity cell with integrated temperature sensor
|
Cell Constant (cm-1) |
1 |
|
Measurement Range |
1µS/cm to 100mS/cm |
|
Sample Volume Required (ml) |
16 |
|
Temperature Sensor |
Integrated |
|
Temperature Range |
0 to 60 °C |
|
Connectors |
BNC, phono jack |
|
Cable Length |
1m |
|
Overall Length |
205mm |
|
Diameter |
18mm |
|
Cell Material |
Platinum coated with platinum black, glass body |
The actual cell constants are within ±10% of the nominal value.
- The Sensor measures:
- Conductivity
