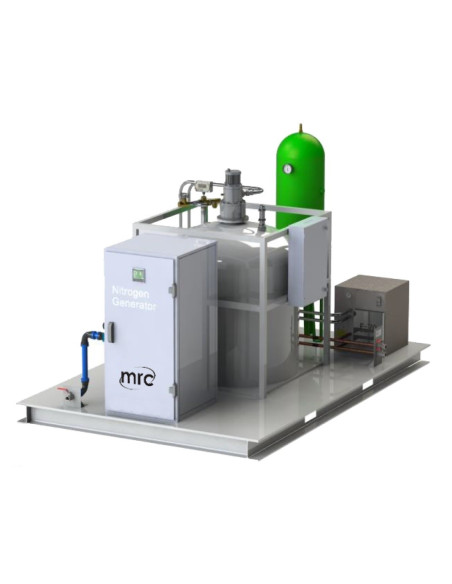

LN130B Intelligent LN2 Generator of 130 liters / day
Liquid nitrogen production (l/hr): *5.42
*Increased tank pressure and production when BOOST mode activated
► Liquid nitrogen purity: >99% (<1.0% O2)
► Liquid nitrogen tank volume (litres): 300
► Liquid nitrogen Pressure (bar g): Up to 4.0
Uses the reliable and efficient PSA technique of separating Nitrogen and Oxygen to produce high quality Nitrogen Gas which is then liquefied using the powerful cooling system.
The liquid nitrogen is stored in a suitable sized vacuum insulated tank and the product can be dispensed using a 1.5 metre vacuum insulated hose provided.
Other options of dispense methods are available on request.
.jpg)
Power consumption (Kw) – excluding air compressor & chiller: 13.8
Power supply (3Ø + neutral and earth): 200-480 50/60Hz
LN2 skid foot print: 2m x 2m
LN2 skid height: 1.8m
Noise level: <65 dBA
.jpg)
Options:
• Internet connectivity
• SMS text messaging
• Air compressor system
• Closed loop water chiller
• Foot pedal dispensing
• Nitrogen gas outlet
- Instrument for:
- Hospitals, Lab's, Clinics
- Function:
- LN2 Generator
