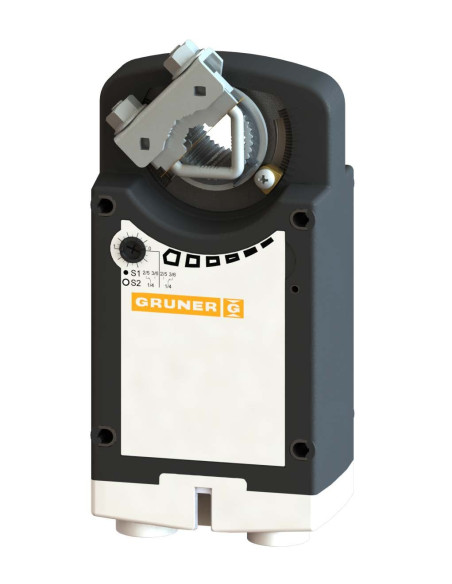

Gruner 361C-024-10-S2
New
Atuador de retorno por mola para ajustar amortecedores em instalações HVAC
- Tempo de funcionamento do motor: 150 s / 90 °
- Tempo de funcionamento da primavera: 20 s / 90 °
- Torque do motor: 10 Nm
- Mola de torque: 10 Nm
- Tensão nominal: 24 VAC / DC
- Controle: controle contínuo (0) 2 ... 10 VCC
- Chave auxiliar: 2x livremente ajustável
- Tamanho do amortecedor: até aprox. 2 m²
- Acoplamento do eixo: grampo quadrado 9-18 mm / redondo 9-26 mm
This product is no longer in stock
Availability date:
---------- INDÚSTRIA ------------ | Atuador de retorno por mola |
- Atuador de retorno por mola
- 24 VAC / DC, contínuo (0) 2… 10 V
- Torque de 10 Nm
- Tempo de funcionamento: motor 150 s / 90 ° / mola 20 s / 90 °
- Conexão com cabo de 1m
- Sinal de feedback: (0) 2… 10 V, 2x chave auxiliar
- Acoplamento do eixo: O 9-26 mm, quadrado 9-18 mm
- Montagem com faixa de montagem + parafusos
Electrical data | |
---|---|
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 5,0 W |
Power consumption standby (end position) | 2,0 W |
Wire sizing | 8,0 VA |
Control | continuous control (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ (0)4...20 mA |
Feedback signal | (0)2...10 VDC, max. 5 mA |
Auxiliary switch | 2 x SPDT (Ag) |
Contact load | 5 (2,5) A, 250 VAC |
Switching point | 0°...95° |
Connection motor | cable 1000 mm, 4 x 0,75 mm² (halogen free) |
Connection feedback potentiometer | - |
Connection auxiliary switch | cable 1000 mm, 6 x 0,75 mm²(halogen free) |
Connection GUAC | - |
Functional data | |
Torque motor | 10 Nm |
Torque spring | 10 Nm |
Damper size | up to approx. 2 m² |
Synchronised speed | ±5% |
Direction of rotation | selected by mounting |
Manual override | manual operation |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops |
Running time motor | 150 s / 90° |
Running time spring | 20 s / 90° |
Sound power level motor | < 35 dB(A) |
Sound power level spring | < 65 dB(A) |
Shaft coupling | clamp ◊ 9-18 mm / Ø 9-26 mm |
Position indication | mechanical with pointer |
Service life | > 60 000 cycles (0°...95°...0°) > 1 000 000 partial cycles (max. ±5°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |

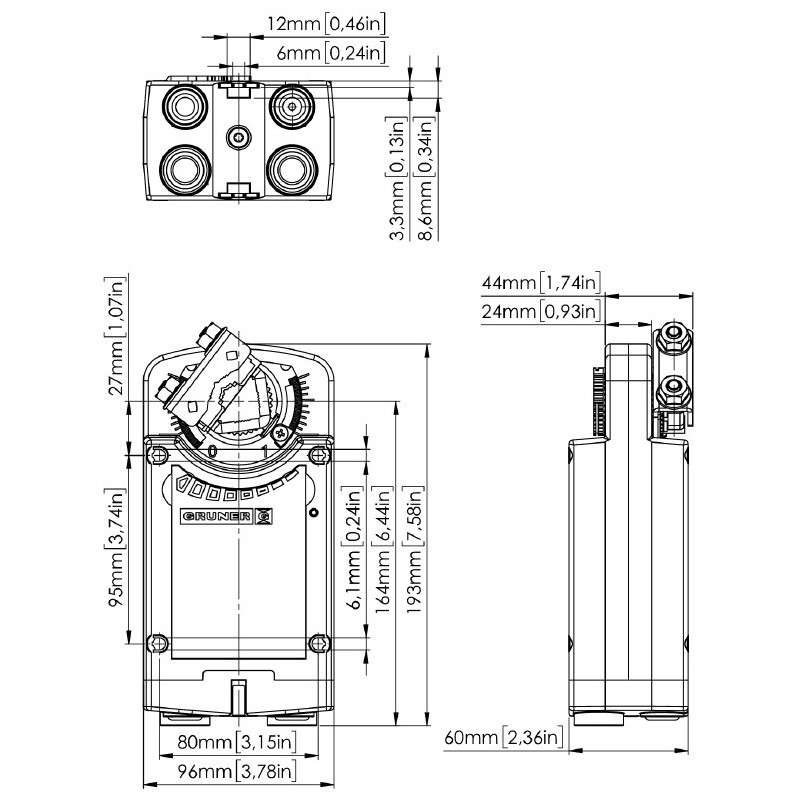

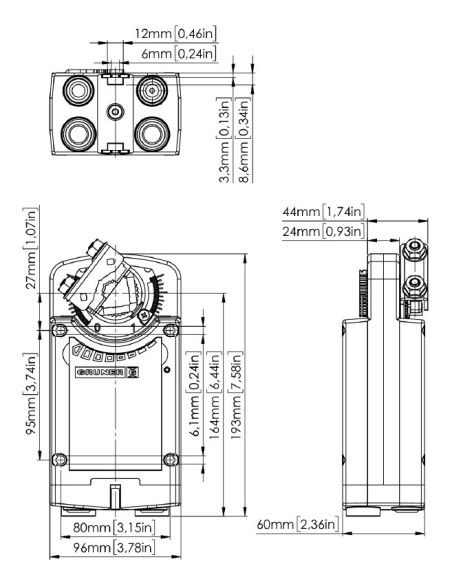

Dimensions / Weight | |
Dimensions | 193 x 96 x 60 mm |
Weight | 1700 g |
