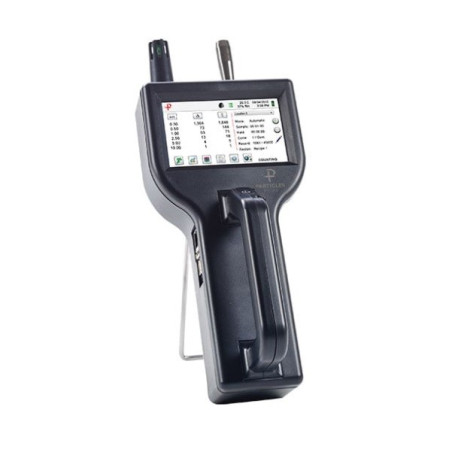

8506-20 Contador de Partículas Grandes (0.3 - 55 µm @ 0.1 CFM)

Referencia: 8506-20

Fabricante: Particles Plus

Condición: Nuevo

Contadores de partículas portátiles de la serie 8000.
El contador de partículas portátil Particles Plus 8506-20 mide 0.5 a 55.0 µm con un caudal de 0.1 CFM (2.83 LPM).

Garantía: 2 años limitada.

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

GENERAL
ESPECIFICACIONES
Ficha técnica
Descargar

Tipo de Instrumento	Medidor Partículas en Aire
El instrumento mide:	Conteo de Partículas Ópticas
Instrumento para:	Partículas en el Aire
Función:	Salud-seguridad industrial

8506-20 Descargar (20.28M)

Fácil de configurar, este instrumento muestra hasta 6 canales de tamaño seleccionable por el usuario, así como la temperatura y la humedad relativa. Vea datos y genere informes ISO 14644-1, UE GMP Anexo 1 o FS 209E en pantalla o mediante impresora, llave USB, en tiempo real a través de sus opciones de salida versátiles o exporte al software de descarga de datos Particles Plus. Los contadores Particles Plus se pueden controlar y monitorear de forma remota a través del navegador web. El modo de concentración de masa 8506-20 se aproxima a la densidad en µg / m³ y permite correcciones de densidad e índice de refracción para garantizar la precisión.

Todos los contadores Particles Plus cumplen con ISO 21501-4 y JIS B9921. El 8506-20 garantiza el cumplimiento de un analizador de altura de pulso incorporado.

Características y Ventajas:

Measures 0.5 µm to 55.0 µm

0.1 CFM (2.83 LPM) flow rate

Long life laser diode technology

Measures up to 6 channels of simultaneous data

Approximates mass concentration in µg/m³ with density and refractive
index corrections

Integrated handle for one-handed operation

Large easy-to-use icon driven color touch screen display

Temperature and relative humidity probe included

Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes

Annotation function allows user to save 32 character notations to a sample record

Real-Time Meter for detecting particle contamination sources

Easy configuration and transferable from instrument to instrument

Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485 or RS232

Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1
and FS 209E

Internal audible alarm

User-definable reports

User-selectable channel sizes

Complies with ISO 21501-4 and JIS B9921 standards

Easy to clean and wipe down with minimal particle traps

Seamless integration into a facility monitoring system

Light weight high-impact injection molded plastic enclosure

2 year warranty. Extended warranties available

Tamaño Partícula	0.5 to 55.0 µm
Size Channels	Factory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 20.0 µm variable binning
Flow rate	0.1 CFM (2.83 LPM)
Concentration Limit	10,000,000 Particles/ft³ @ 10% coincidence loss
Battery Run Time	10 hours
Light Source	Long life laser diode
Counting Efficiency	50% @ 0.5 µm; 100% for particles >0.75 µm per JIS
Zero Count	<1 count / 5 minutes (<2 particles/ft³) (per ISO 21501-4 & JIS)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3" (10.9 cm) WQVGA (480x272) color touch screen
Printer (Optional)	External thermal printer.
Vacuum Source	Internal pump with automatic flow control
Filtered Exhaust	Internal HEPA filter
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Audible Alarm	Adjustable built-in alarm
Battery	Removable Li-ion
Battery Recharge Time	4 hours within instrument (<2 hours with external battery charger)
Reports	ISO 14644-1, EU GMP Annex 1, FS 209E
Recipes	50 user-configurable recipes
Communication Modes	Ethernet and USB
Optional Communication Mode	Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor	Includes temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm	Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	High impact injection molded plastic
Dimensions (L x W x H)	10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight	2.2 lb (1.0 kg)
Accessories	Operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories	Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes
Buffer Memory	45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout
Sample Locations	Up to 1,000 locations 20 characters long
Sample Time	1 second to 99 hours
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions	32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty	2 Years. Extended warranties available.
