EM-3350 Electrical Machines & Motors Training System

Reference: EM-3350 - Manufacturer: KandH

CE CERTIFIED

Cutaway models are made from normal electrical machines. The stator is cut away by 1/4 over the entire
length for an optimum view of the internal construction of the machine and it is still operating. The cutaway
surfaces are protected against corrosion.

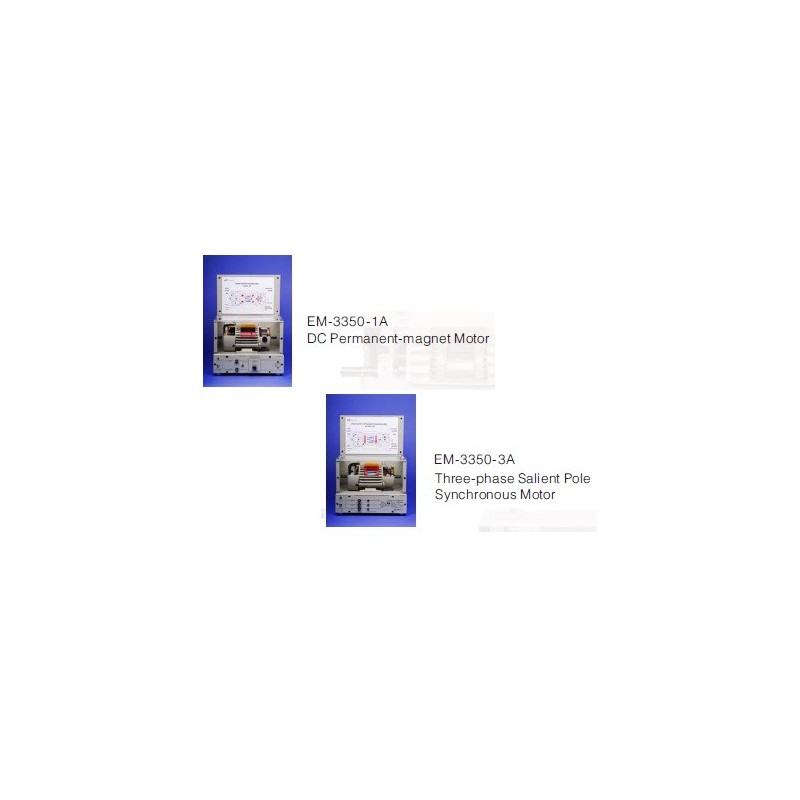

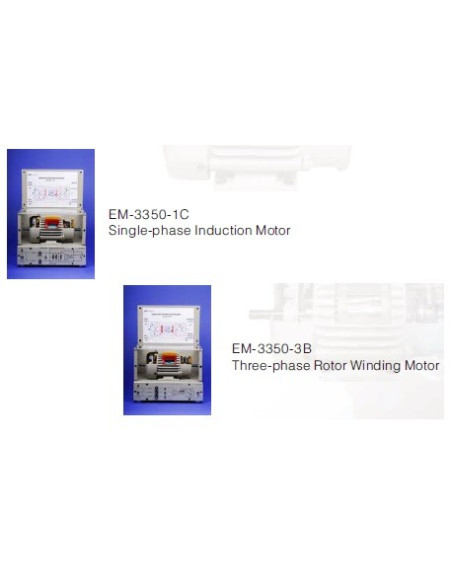

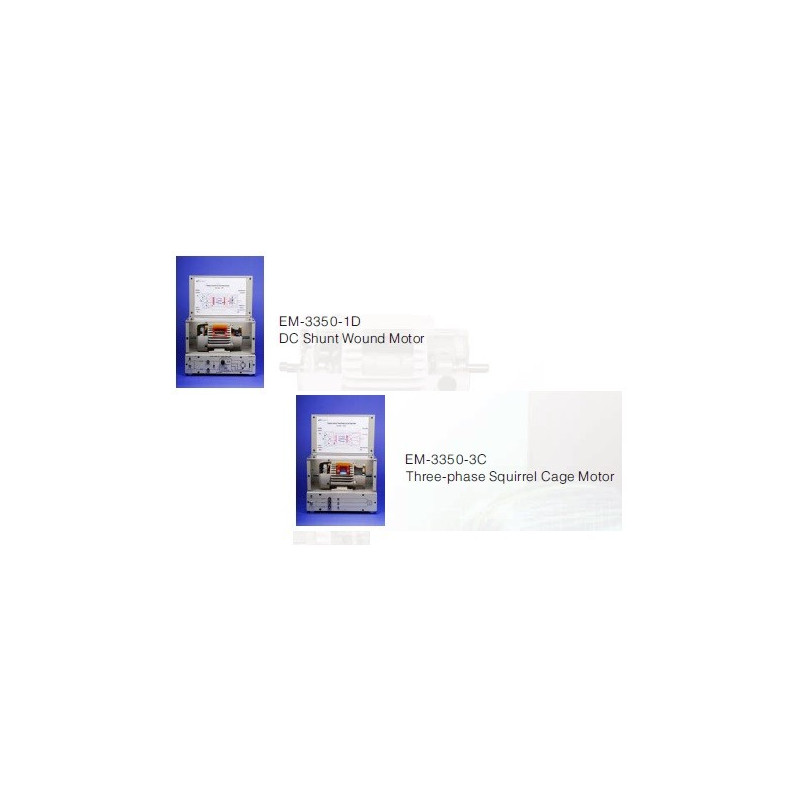

An attached pdf shows the EM-3350 cutaway motor models

OVERVIEW
Data Sheet

Allows students / trainees to see the internal cutaway structure of the motors while they actually run!

Category: Electricity
