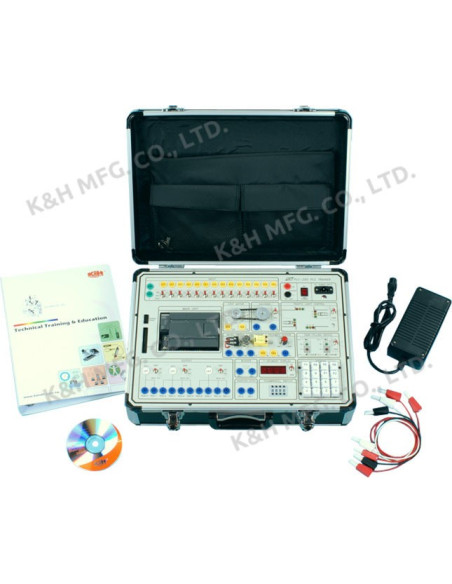

PLC-200 Programmable Logic Controller (SIEMENS S7-200) Trainer

Reference PLC-200

Manufacturer: KandH

Condition: New

PLC-200 is a self-contained trainer which consists of a SIEMENS PLC main unit and commonly used I/O devices for simulation. It offers students excellent theories and wide applications of programmable logic controllers. This trainer enables students to learn step by step from the fundamentals of PLC to more advanced controls used in industry.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
List of Experiments
Data sheet

Category	PLC

Since PLC (Programmable Logic Controller) was firstly introduced in 1970, it has been widely applied to various industrial uses such as machine and process controls. Designed with the latest microprocessor and electronic circuitry, today's compact-size PLCs provide the feature of high level of reliability, performance, speed and networking. The use of PLCs in automated production lines enhances system reliability, product quality, information sharing, efficiency and flexibility and thus educes costs.

1. Input-simulation switches function as level and pulse Input for different input signal

2. It is particularly suitable for installation of output relay helps to increase load current

3. Easy-to-use, Windows-based development software

4. Assorted peripheral devices and other devices that support external extensions, it particularly suits laboratory experiment and project implementation.

5. Various simulations I/O devices for studying and observing the results

6. Using 4mm safety sockets on Input / Output terminals to ensure users’ safety

7. The suitcase-design makes it easy to carry, move and store

1. STEP 7- Micro/WIN operations

     ．Editing ladder program
     ．Testing ladder program
     ．Monitoring status

2. Basic control circuits

     ．Self-holding circuit
     ．Flashing control
     ．Inching control
     ．Single button Control

3. Light control

     ．Simple light control
     ．Complex light control

4. Traffic light control

     ．Traffic light controller (step)
     ．Traffic light controller (conventional)

5. Digital clock control

     ．7-segment display control
     ．Time clock

6. Step motor control

    ．Speed and direction control
    ．Encoder operation
    ．Step motor and encoder
     ．Step display of step motor

7. Tank filling device control

     ．Tank filling control
     ．Tank filling control with thumbwheel

8. Keypad control

     ．Keypad operation
     ．Digital lock control

9. DC motor control

     ．PWM speed controller
     ．Proximity and micro switches
     ．Automatic speed control
