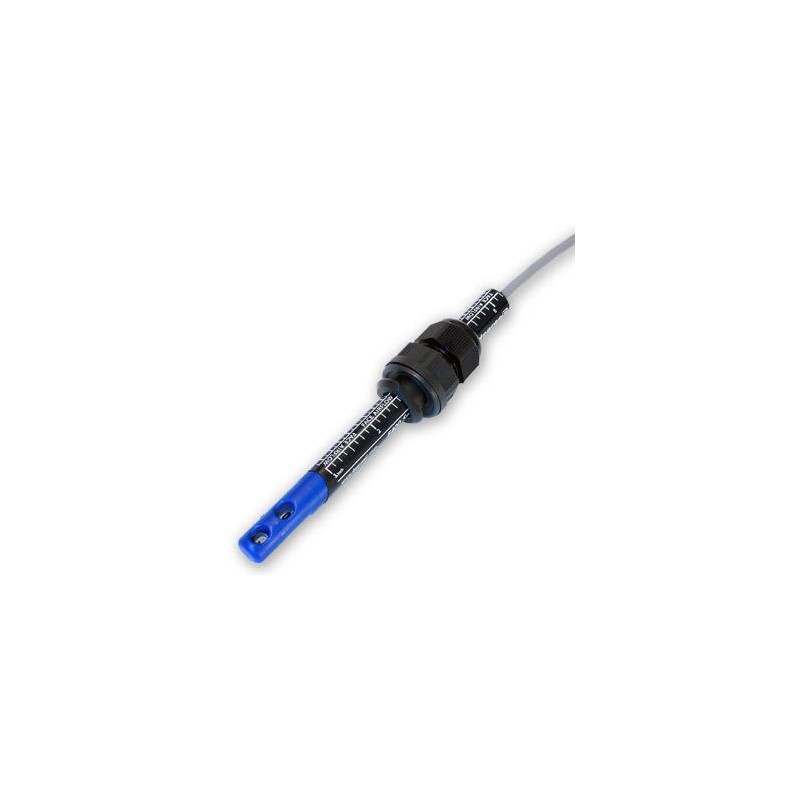

500 Series - F500 Universal Voltage Air Velocity & Temperature Sensor

The 500 series of air velocity and temperature sensors use Degree Controls' velocity performance technology in a robust package designed for the precision needs of multiple markets where 24VAC / 24VDC supply voltages, low temperature operation, and longer distance mA signaling are required. With both voltage and current outputs available, augmented with digital communication, (which can be used simultaneously), the 500 series product line sets a new standard for flexible design integration and airflow control. Our 500 Series sensors can be used to directly control fans, output velocity and temperature readings to standard display technologies, or configured as an electronic flow switch providing unprecedented accuracy, and flexibility for shaping alarm point and hysteresis design. The 500 series uses sealed construction, conformal coated electronics, UV-resistant polymers, includes remote head options, and ships with plenum rated, sheathed cabling, which allow it to be used in a wide range of applications.

RELATED PRODUCTS:

Probe Length:
1= 183mm [7.2”] max insertion depth = 140mm [5.5”]
2= 287mm [11.3”] max insertion depth = 245 mm [9.6”]

Velocity Profile:
A= 0.15 – 1.0 m/s [30-200 fpm]
B= 0.5 - 10.0 m/s [100-2000 fpm]
C= 1.0 – 20.0 m/s [200-4000 fpm]

Output Configuration:
1= 0 – 5 VDC air velocity output only
2= 0 – 5 VDC air velocity & air temperature (dual outputs)
3= 0 – 10 VDC air velocity output only
4= 0 – 10 VDC air velocity & air temperature (dual outputs)
7= 4-20 mA air velocity only
8= 4-20 mA air velocity & air temperature (dual outputs)
0= No analog output required
