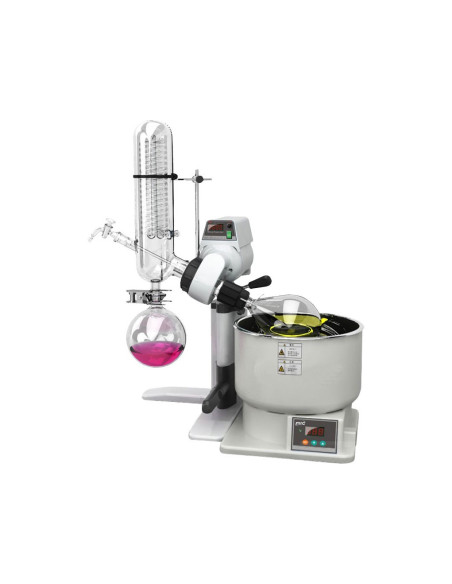

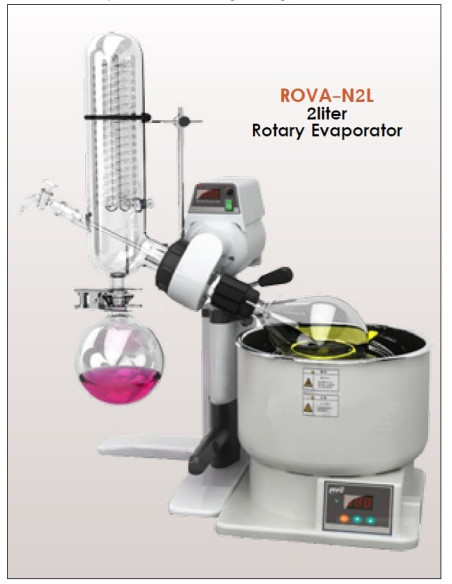

2 Liter Rotary Evaporator ROVA-N2L
ROVA-N2L
New
- Rotary speed (Rpm): 10 ~ 180
- Evaporating speed (ml/min): 20
- Achievable vacuum (Pa): 399.9 (below 3mmHg)
- Temperature range (OC): Room temp ~ 100
- Temperature display: Keypad input, Digital display
- Speed-setting: Knob setting, Digital display
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Instrument for: | Hospitals, Lab's, Clinics |
| Function: | Rotary Evaporator |
This equipment for purification distillation test rotates
and shapes a thin film in negative pressure conditions by
heating, evaporating efficiently, and then condenses and
recollects solvents to purify and separate.
The unit can be incorporated into a system device using:
- Multi-purpose Circulating Water Vacuum Pump
- Diaphragm Vacuum Pump
- Low Temperature Circulating (vacuum) Pump
- Circulating Cooler
- Constant Temperature Circulator
- Low Temperature Cooling Lliquid Circulating Pump.
.jpg)
|
Model |
ROVA-N2L |
|---|---|
|
Rotary speed (Rpm) |
10 ~ 180 |
|
Evaporating speed (ml/min) |
20 |
|
Achievable vacuum (Pa) |
399.9 (below 3mmHg) |
|
Temperature range (OC) |
Room temp ~ 100 |
|
Temperature display |
Keypad input, Digital display |
|
Speed-setting |
Knob setting, Digital display |
|
Safety functions |
Insurance |
|
Functions of lifting table |
Weight balancing Gliding elevating+ manual lifting |
|
Rotary motor (W) |
25 |
|
Heater wattage (KW) |
1.5 |
|
Condenser model |
Vertical type water refrigerating |
|
Rotary bottle (L) |
0.5 ~ 2 |
|
Collecting bottle (L) |
1 |
|
Vacuum sealing |
Double sealing rings made of Teflon + Vinton materials |
|
Water Bath size and volume (L) |
φ260×140·7.4 |
|
Elevating stroke (mm) |
100+150 |
|
Ambient temperature (OC) |
5 ~ 35 |
|
Dimensions (mm) |
560L×320W×660H |
|
Weight (kg) |
9.5 |
|
PowerSupply (V/Hz) |
220/50 |
