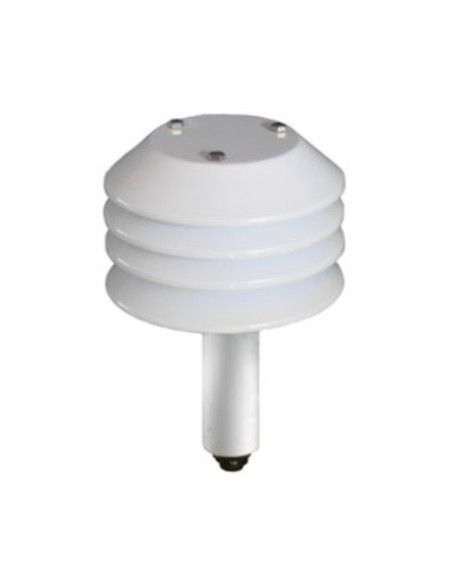

Reference: UTAV-B - Manufacturer: Nesa srl
  • Accurate and reliable Air Humidity & Temperature Sensor
  • Measure with RTD Pt100 and capacity
  • According to WMO standards
  • Anticorodal Aluminum body with size and weight compact
  • Available with forced ventilation (model UTAV)
  • Range: -40 ÷ +60°C (-60°C ÷ +70°C on request) [0 ÷ 100%Rh]
  • Resolution: 0.01°C, [0.05%]
  • Long-term stability: < 0.2°C/year, [< 1%/year]
  • Accuracy: DIN 43760 1/3DIN (±0,1°C), [± 2% f.s.]
  • Response time: <8s
  • Operating conditions: : -50 ÷ +80°C (-60 ÷ +80°C on request)
  • Output signal: N: 0÷1Vdc(Rh) & Pt100 (T); A: 0÷1Vdc(Rh) & 0÷2Vdc (T) ;B: 4÷20mA (Rh) & 4÷20mA (T) ; C: 2 x RS485 /ModBus
  • Power supply: 10÷30Vdc (consumption with forced ventilation 2W max@12Vdc)


Combined air temperature (T) and humidity (HR) of the sensor, in accordance with WMO standards with forced ventilation for outdoor use.
Completely made of painted anticorrosive anodized aluminum.
Output: 4 ÷ 20mA (T) and 4 ÷ 20mA (RH)

The Sensor measures:
Temp./Rel. Humidity
Output Signal:
4-20 mA
Power Supply:
10-28Vdc 0.1W; 5W @ 12Vdc with heater
