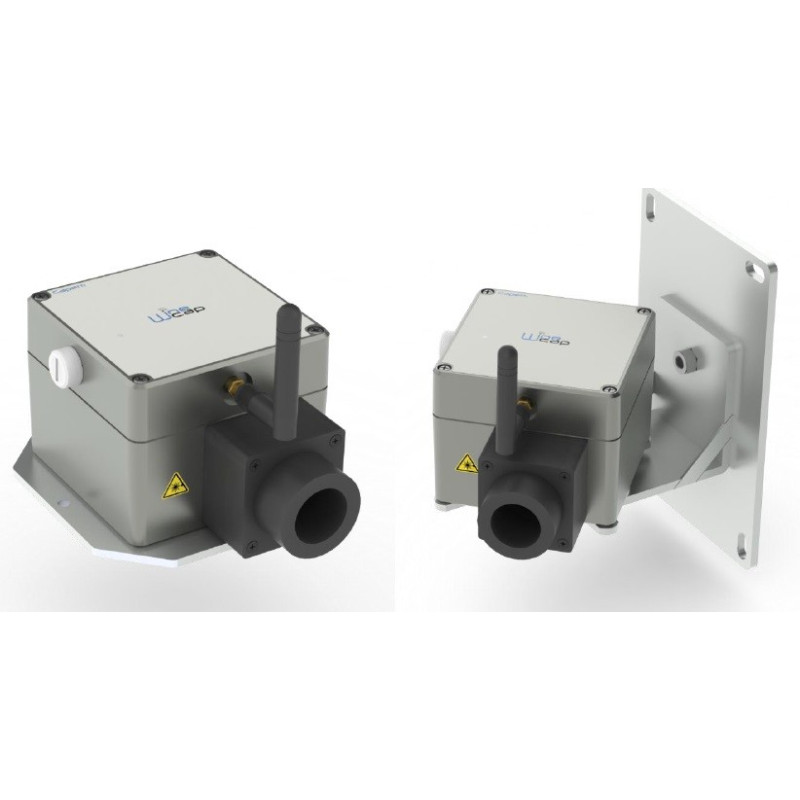

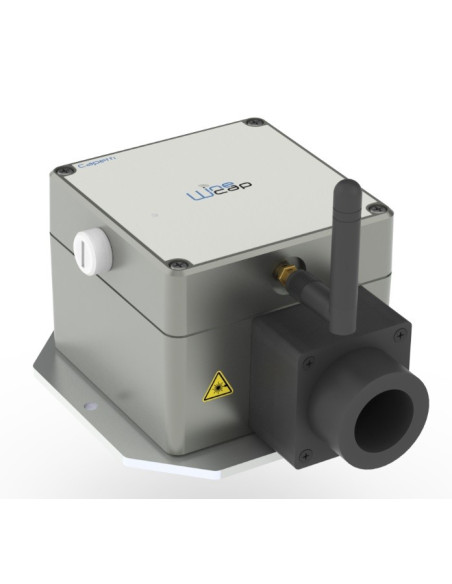

Capetti WSD15IIDIST 4 channels Wireless Smart Datalogger - automatic MEMS clinometer (1°-15°)

WSD15IIDIST is a 4 channel Wireless Smart Datalogger with 1°-15° dual range automatic autoscale MEMS biaxial clinometer.

Biaxial inclination, temperature, distance: It has a Laser distance meter for absolute or relative distance and temperature.

Type "C" lithium internal battery for a battery life up to 5 years with samples every 60 minutes.

Capetti WSD15IIDIST Wireless Smart Datalogger:

► This is a datalogger with 4 channels to acquire biaxial inclination, absolute distance, or temperature (selectable during installation) and relative distance with storage functionality of samples acquired.

► The radio module High Reliability (unique 868MHz radio technology. implementing frequency hopping on 11 channels) is based on WINECAP™ LuPo protocol (Long Range) and provides an excellent radio range, with low battery consumption and the certainty of data recovery in any situation (black out/ signal obstacles).

► The unit has a backup memory onboard and may store the last 64,000 samples per channel even if the wireless link is down. Samples can be downloaded using a USB cable.

► By use of the configuration software, the sampling interval may be set and two thresholds per channel can be activated.

► The unit can be interfaced with:
-  all the basestations of the MWDG product line
-  all the basestations of the MWLI product line

► If necessary, radio coverage may be extended up to 16 times using WR12 repeaters (battery powered repeaters with battery life up to 7 years) between the datalogger and the basestation.

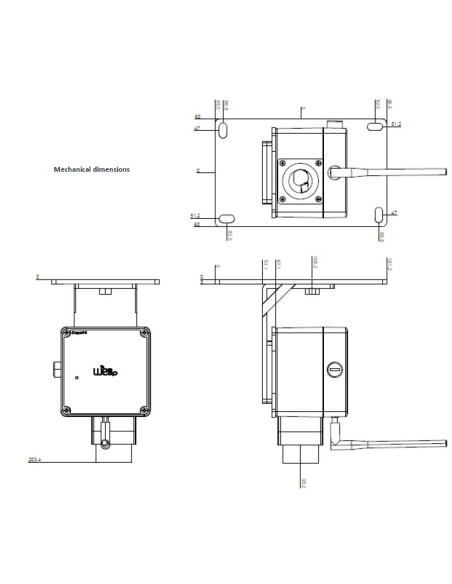

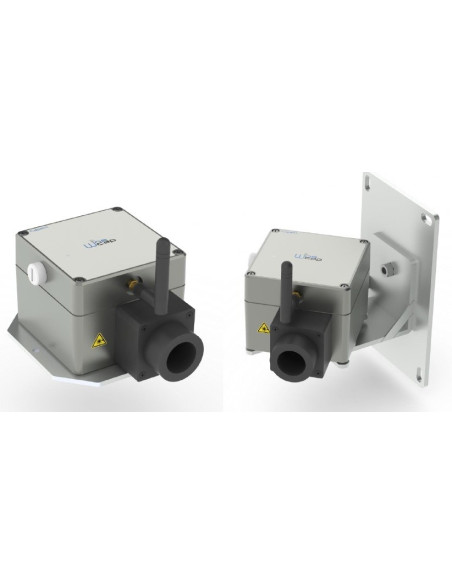

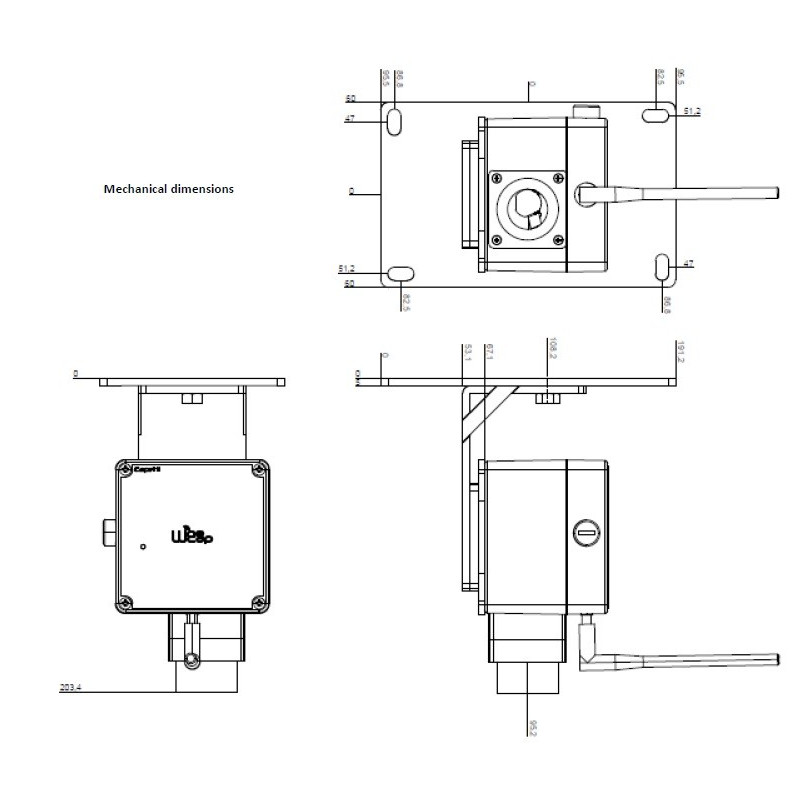

Mounting kit for LASER WSD15IIDIST clinometer with free rotation arm on 2 axe.
Consisting of a plate for wall mounting and an arm with two degrees of freedom perpendicular to each other.
Fixed using wall plugs not supplied with the product.
