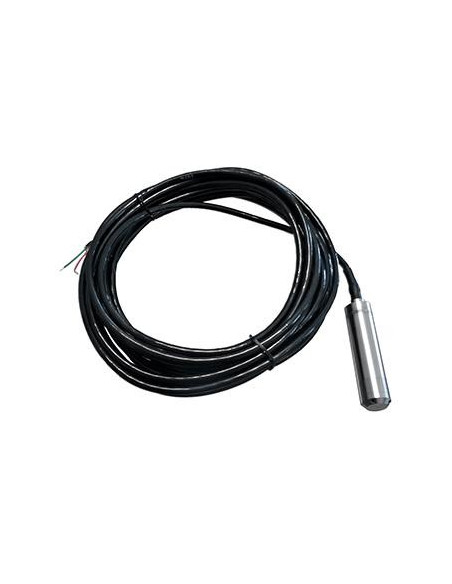

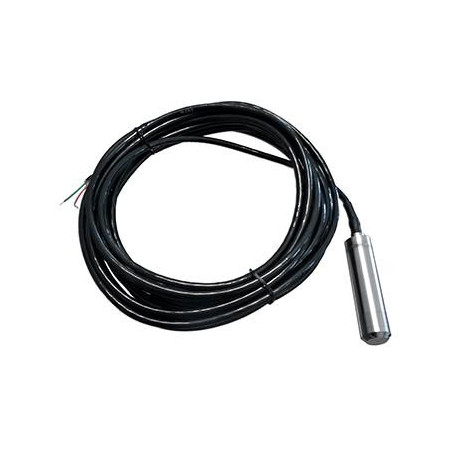

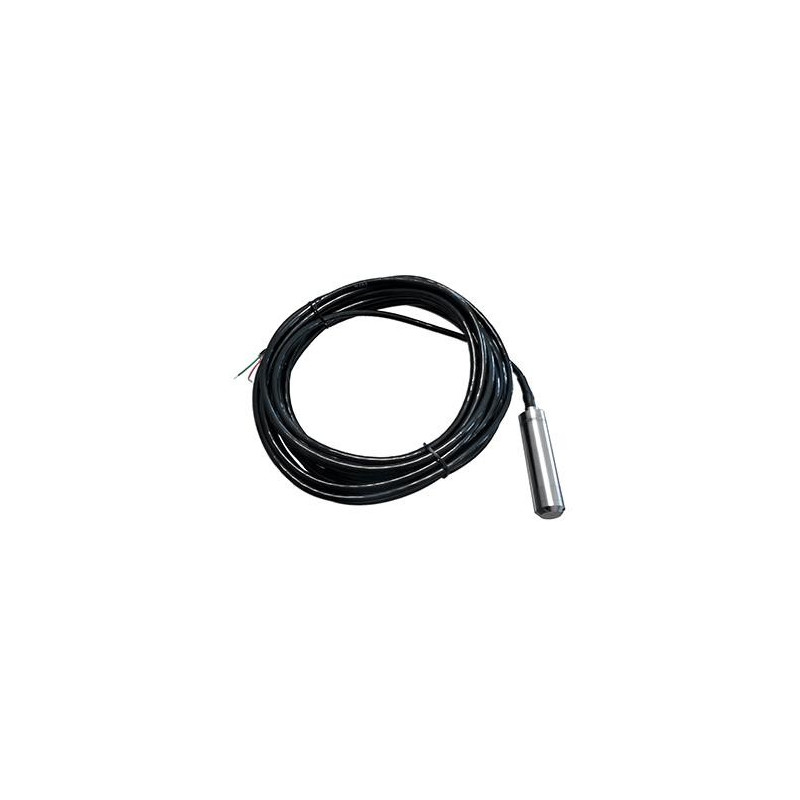

LP20-B Piezometric Level Sensor (Piezometric range 0÷20m H2O)

The sensor for the measure of hydrometric level (piezometer) mod. LPxx Nesa is made by a piezometric capsule housed in a AISI316 stainless steel body of cylinder shape. Thanks to its small diameter can be easily used in small spaces. The used transducer, supplies extremely precise measures, with an excellent repeatability, low hysteresis and stable behaviour with the temperature, that allows to employ the sensor as a hydrometer in clean water.

• Level sensor with high precision piezoresistive capsule

• Automatic compensation of atmospheric pressure

• Compact design with cap in stainless steel AISI-316

• Range of measurement: from 1m up to 100m on request

• Sensitivity: 0.001 bar

• Accuracy: <0.2% f.s.

• Power consumption: <300mW

• Output signal: 4 to 20mA

• Operating conditions: -5 ÷ +55° C (on request -5 ÷ +80° C anti corrosion)

• Power supply: current loop or 10 ÷ 28Vdc
