Bante221-ORP
New

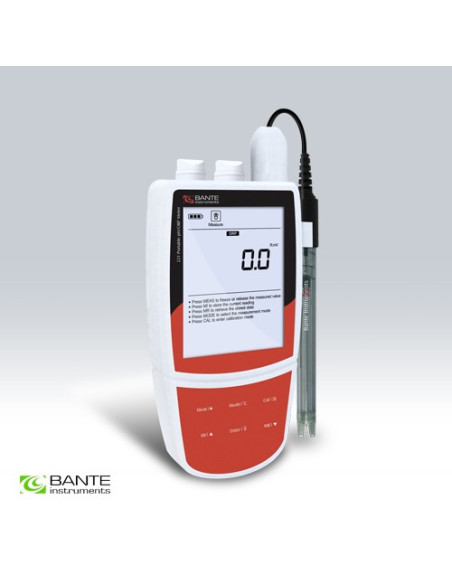

High accuracy portable ORP meter, including the relative and absolute millivolt measurement modes. The meter supports 1 point calibration, system menu contains 9 optional parameters. Accuracy: 0.2mV.
This product is no longer in stock
Availability date:
ORP Mode:
• High accuracy portable ORP meter is equipped with a large backlit LCD display.
• Single point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt measurement modes provide accurate ORP readings.
pH Mode:
• 1 to 5 points push-button calibration with auto-buffer recognition.
• Selectable pH buffer standard (USA/NIST/DIN) or using the custom calibration solutions.
• Automatic electrode slope display helps user decide whether to replace sensor.
• Automatic Temperature Compensation provides accurate reading over the entire pH range.
• Calibration Due Reminder prompts you to calibrate the meter regularly.
Other Features:
• Stability indicator automatically shows current measurement status.
• Auto-Hold function freezes stable measured value for easy viewing and recording.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (°C or °F) meets different application requirements.
• Automatic electrode diagnosis shows zero point offset and slope of the electrode.
• Help message as a operational guide that helps you quickly begin using the meter.
• System menu allows setting the 9 parameters, including the pH buffer standard, number of
calibration points, resolution, stability condition, etc.
• Reset feature automatically resumes all parameters back to factory default options.
• Expanded memory stores and recalls up to 500 readings.
• Built-in real-time clock stamps stored data to meet GLP standard.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (battery, power adapter, computer's USB port) ensures that use
the meter smoothly.
Model |
Bante221-ORP |
|
pH |
||
Range |
-2.000~20.000pH |
|
Accuracy |
±0.002pH |
|
Resolution |
0.1, 0.01, 0.001pH, Selectable |
|
Calibration Points |
1 to 5 points |
|
Calibration Solutions |
USA, NIST, DIN or User-defined |
|
Temperature Compensation |
0~100°C, 32~212°F |
|
Compensation Mode |
Manual or Automatic |
|
mV |
||
Range |
-1999.9~1999.9mV |
|
Accuracy |
±0.2mV |
|
Resolution |
0.1, 1mV, Selectable |
|
Calibration Points |
1 point (Only for Relative mV mode) |
|
Calibration Range |
±200mV |
|
Temperature |
||
Range |
0~105°C, 32~221°F |
|
Accuracy |
±0.5°C, ±0.9°F |
|
Resolution |
0.1°C |
|
Calibration Range |
Measured value ±10°C |
|
Temperature Units |
°C or °F |
|
Others |
||
Hold Function |
Manual or Automatic |
|
Stability Conditions |
Low or High |
|
Calibration Due |
0 to 31 days |
|
Power Off |
Manual or Automatic (10, 20, 30 minutes) |
|
Reset Function |
Yes |
|
Memory |
Stores up to 500 data sets |
|
Output |
USB Communication Interface |
|
Connector |
BNC |
|
Power Requirements |
3×1.5V "AA" Batteries |
|
Battery Life |
Approximately 150 hours (Turn off the backlit) |
|
Dimensions |
170(L)×85(W)×30(H)mm |
|
Weight |
300g |

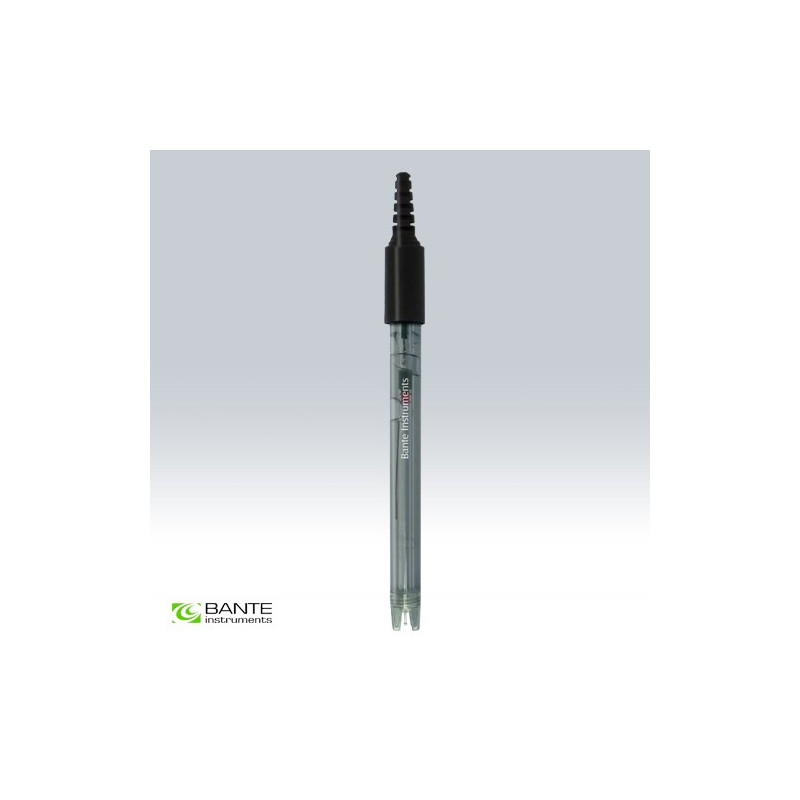

E201-BNC pH Electrode
■ 501 ORP Electrode
■ TP-10K Temperature Probe
■ pH Buffer Solutions (pH4.01/7.00/10.01)

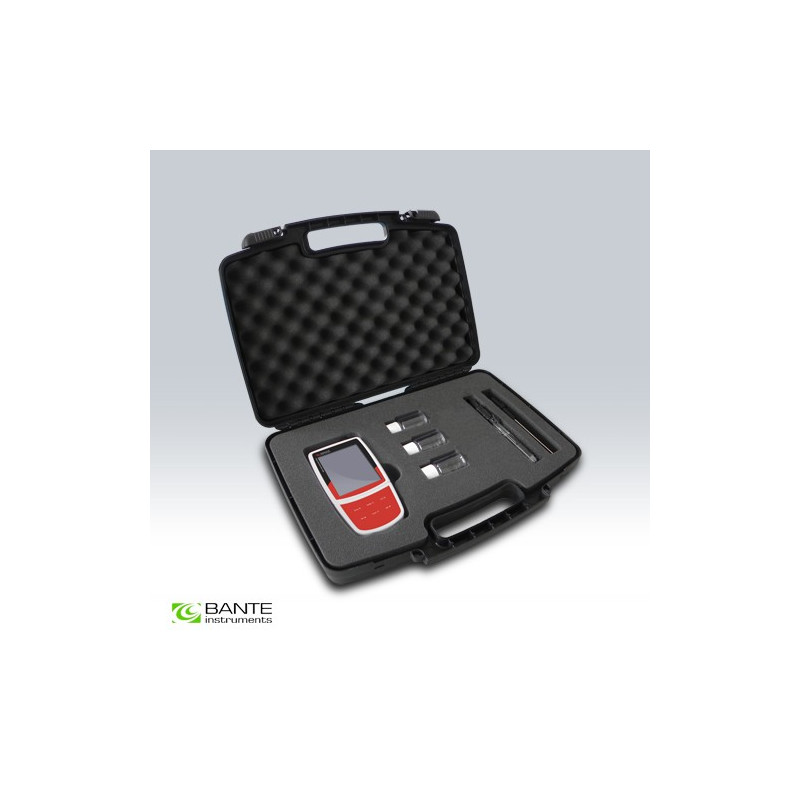

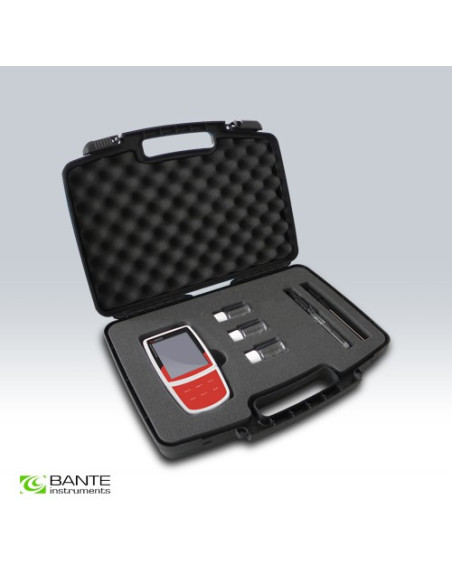

■ Batteries and Carrying Case
