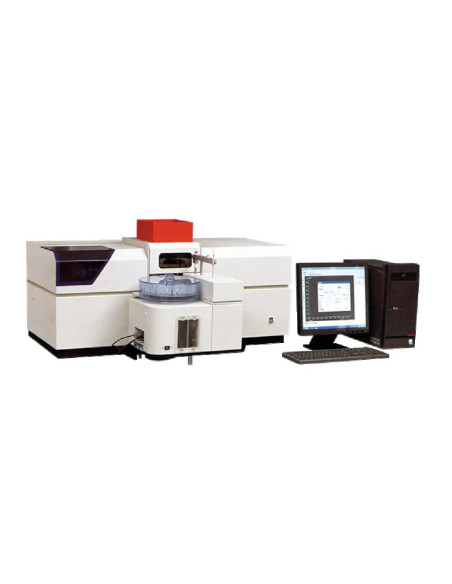

AAS210 Atomic Absorption, Fully Automatic Flame and Furnace Type

Integrated flame/graphite furnace
Wavelength range 190-900nm
Wavelength accuracy Better than ±0.25nm
Spectral bandwidth 0.1 nm, 0.2nm, 0.4nm, 1.2nm, auto switch overGrating 1800 l/mm
Focal length 277mm
Blazed wavelength 250nm
Adopting FUZZY-PID and dual curve mode
light-controlled temperature control technique
The temperature control accuracy is less than 1%
Easy and practical analysis software
● Adopting large-scale programmable logic array &
Inter I2C bus tech
● Multi-function autosampler
Characteristic Mass of Some Elements using rich
oxygen air-C2H2 flame and other flame methods
● Automatic wavelength scanning and peak picking.
● Automatic spectral bandwidth changing.
Autosampler 55 sample vessels
