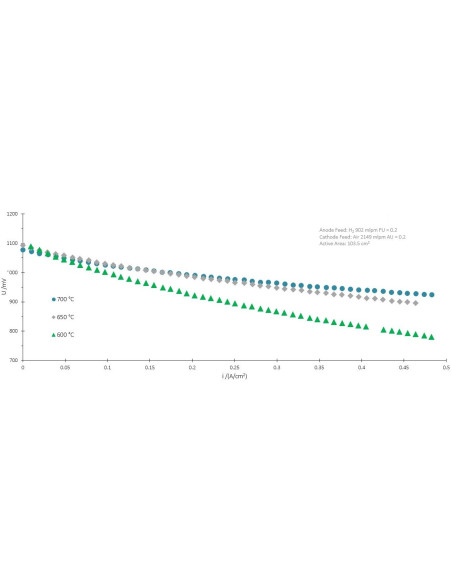

Single Cell IV Curves
ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)
ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)
ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)
Cross Section SEM
Single Cell IV Curves
ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)

ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)

Reference: ASC-2.0 - Manufacturer: NextCell

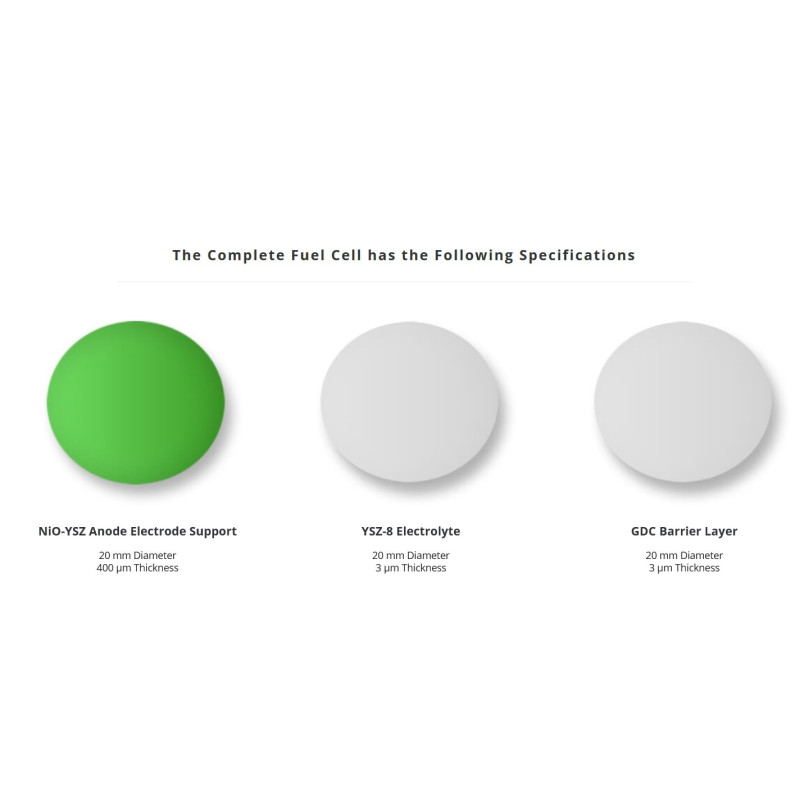

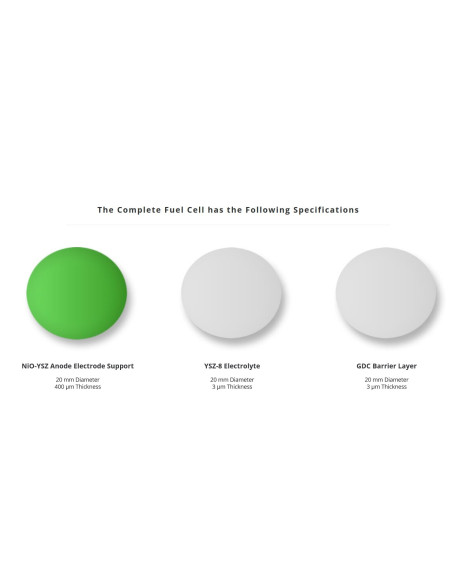

Anode supported cells (ASCs) with the Ni-YSZ/YSZ/GDC/LSC is a great starting point for intermediate temperature (below 800°C) SOFC research and development. Using an ASC you receive an optimal balance of membrane and ionic function by using a very thin electrolyte.

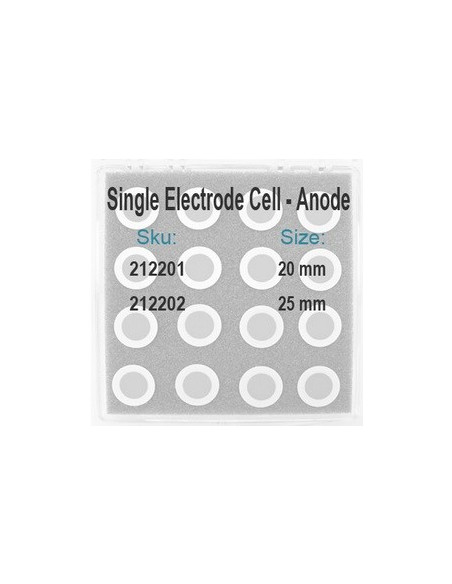

Note: The 20mm diameter are for each part of the round button cell, and each cell has an active area of 12.5mm diameter. Shown in the image is a pack of 9 parts.
A Minimum Order Quantity of 5 parts is required.

help_outlineAsk for Quote

ASC-2.0 Electrolyte Button Cell - Compatible with anode (20 mm)

I accept privacy policy rules



Ofrecemos pastas de contacto para los ánodos y los cátodos de las SOFC. Para lograr resultados óptimos, es importante mantener un buen contacto eléctrico entre la superficie del electrodo y el colector de corriente. La aplicación de una fina capa de tinta (LSM para el cátodo y níquel para el ánodo) entre los electrodos y los colectores de corriente garantizará resultados de prueba reproducibles.

Type of Cells
Anodes
Anode Supported Cells
20mm
