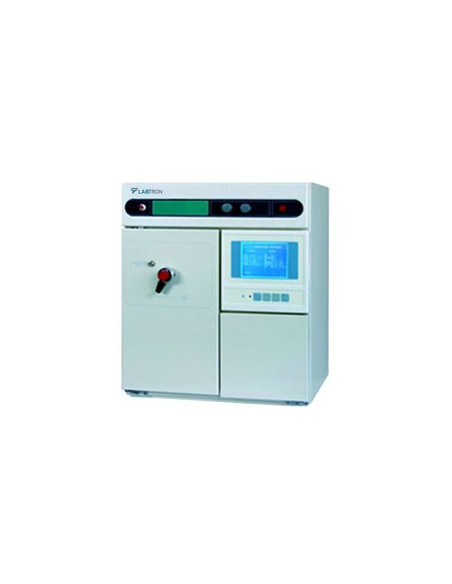

LICS-A10 Ion Chromatography System View larger

LICS-A10 Ion Chromatography System

LICS-A10

LABTRON

New

This Ion chromatography system is compatible with strong organic solvents, alkali and base. It is equipped with advanced digital temperature controlled conductivity detector for maintaining constant temperature of the column system. This multifunctional Ion chromatography system has provision for easy washing and easy daily maintenance.

Add to wishlist

This Ion chromatography does cation and anion analysis and hence it is widely used in environmental science for water analysis, in chemical analysis and colleges and universities for education purpose.

  • Normal and high precision detection system
  • Automated gas removal technology
  • Incorporation of PEEK flow path system
  • large LCD display screen to show parameters like pressure, temperature, conductivity.
Type Imported high pressure dual piston series reciprocating plunger pump
Maximum pressure 42MPa
Flow rate range 0.001-9.999mL/min
Pressure precision ≤0.1Mpa
Flow rate precision RSD<0.1%
Flow rate repeatability RSD≤0.1%
Full plastic flow path PEEK material
Six-way valve American Rheodyne High-Pressure six-way valve, can bear pressure 7000Psi
Detection way The fifth level ring passivity electrode, 316 stainless steel electrode shield conductivity cell
Cell volume Single conductivity detection
Resolution ratio ≤0.9µL
Detection range ≤0.0020ns
Output voltage 0~35000 µS/cm (10 shifts for choosing)
Baseline noise ±6000mV
Baseline drift <0.5% FS
Temperature control range ≤±0.5% FS
Temperature precision Room temperature +5ºC~60ºC
Temperature compensation ±0.01ºC
Limit operation pressure 1.7%/ ºC
Ion detection 5.0MPa (750 Psi)
Cation analysis Cl-, F-, Br-, I-, SO42-, PO43-, NO2-, NO3-, CIO2-, CIO3-, BrO3- and organic acid analysis
Analysis repeatability Na+, Li+, NH4+, K+, Mg2+, Ca2+, Sr2+ , Ba2+ and organic amine analysis
Linear range ≤1.0% (calculated with SO42-, Na+)
Limit detection ≥10ˆ3
Quantitative repeatability ≤0.5 ppb (calculated with Cl-), ≤5 ppb (calculated with Na+)
Residual sample RSD≤0.2%
Gradient error ≤0.01%
