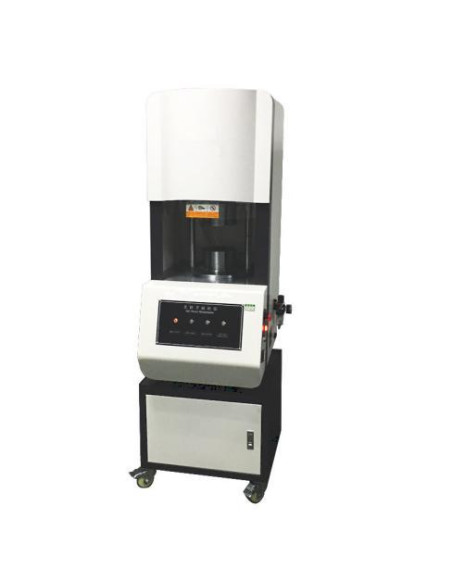

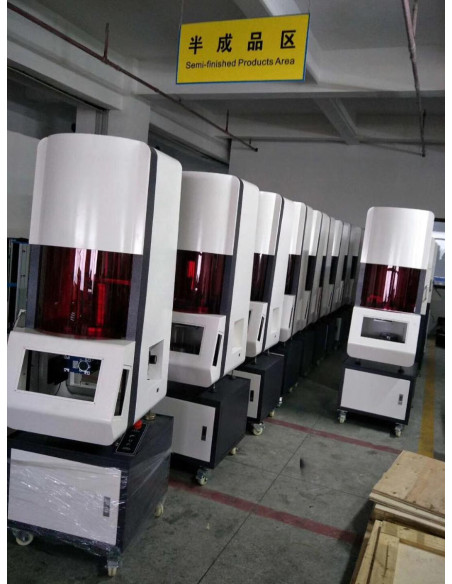

RTM-3001A Mooney Viscometer
Mooney viscometer for measuring viscosity and scorch characteristics of unvulcanized rubber with precise temperature control up to 200 °C.

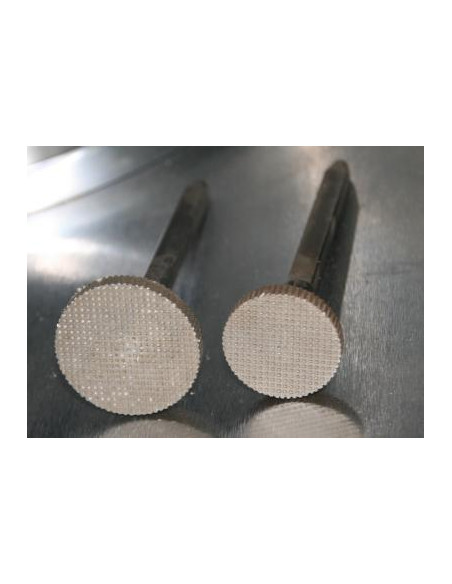

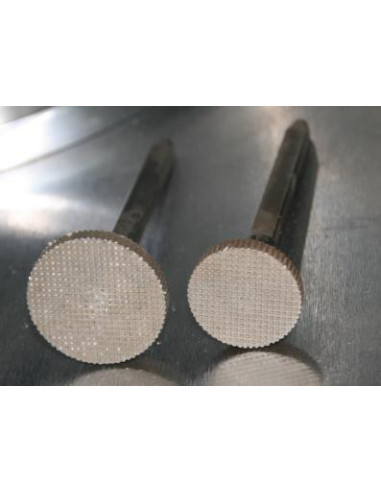

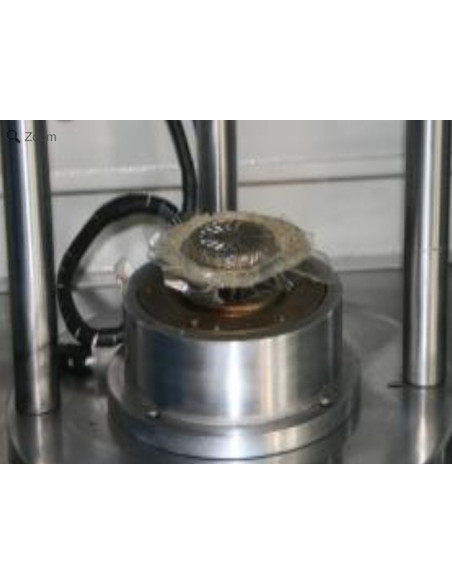

The RTM-3001A is a Mooney viscometer designed to determine the viscosity and scorch characteristics of unvulcanized rubber under controlled temperature and pressure conditions. The instrument applies a defined shear stress to the sample and measures the anti-shear torque generated during rotor rotation, delivering reliable data for process control and raw-material evaluation.
It operates from ambient temperature up to 200 °C with fine display resolution and stable thermal regulation. The integrated printer records date, time, temperature, the Mooney scorch curve, and key values such as MV, T5, T35, T3, T18, @15 and @30, making it easy to document each test.
It is well suited for rubber plants, tire manufacturers, reclaimed-rubber processors, and wire and cable production environments. The RTM-3001A follows methods related to GB/T1232, GB/T1233, ISO289, ISO667, and ASTM D1646 for Mooney viscosity and initial curing characterization.
| Model | RTM-3001A Mooney Viscometer |
| Control temperature range | Ambient temperature to 200 °C |
| Temperature display resolution | 0.01 °C (0.1 °C on standard imported controller) |
| Temperature control accuracy | ±0.3 °C |
| Calibration accuracy | Mooney value ±0.5 |
| Rotor speed | 2 rotations/min ±0.02 rotations/min |
| Torque range | Mooney value 0-200 |
| Torque resolution | Mooney value 0.1 |
| Print content | Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30 |
| Power | 50 Hz, ~220 V ±10 % |
Equipment summary: viscometer for determining rubber vulcanization index by measuring sample anti-shear torque under controlled temperature and pressure.
Standards: GB/T1232, GB/T1233, ISO289, ISO667 and ASTM D1646.
Applicable industry: rubber, tires, reclaimed rubber, wire and cable.
