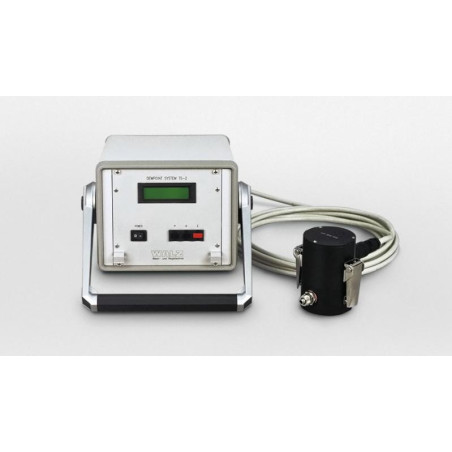

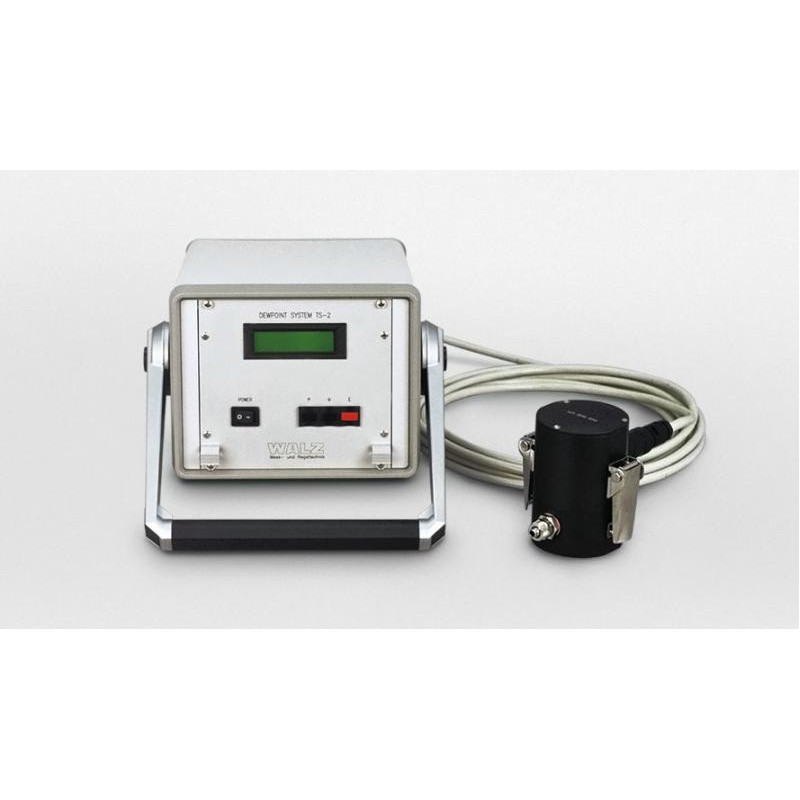

TS-2 Dewpoint Mirror Measuring System WALZ

The measuring principle of the dewpoint mirror is a highly accurate and reliable method for measuring the absolute humidity of air or other gases.

The presented model belongs to the third generation of dewpoint mirror measuring systems, which now feature extended measuring ranges and meet modern requirements with respect to operation and data processing.

The Dewpoint Mirror Measuring System TS-2 is designed for the use as stand-alone unit or it can be integrated into the widest range of equipment.

Due to its high precision and stability, it can be used for:

•  Calibration of humidity sensors

•  Humidity determination in meteorological institutes

•  Control or alarm monitoring applications, for example in fabrication facilities for water sensitive materials

•  As part of bypass humidity-control units and for the determination of plant evaporation in photosynthetic gas exchange systems

Control Unit TS-2

Display: 2 x 16 character alphanumerical LC-display with backlight, character size 5.5 mm

Display ranges: -50.00 to +50.00 for dewpoint; -70.00 to +70.00 for temperature (requires external temperature sensor)

User interface: 3 keys for parameter input

Microcontroller: 80C196KC (16 MHz)

Data memory: Battery-backed RAM up to 256 kB

Analog outputs: 0 to 10 V and 4 to 20 mA for dewpoint and temperature, output ranges software-selectable

Alarm outputs: TTL-signal for dewpoint and temperature, alarm ranges software-selectable

Interface: RS 232, 9600 baud

Mains supply: Selectable 115/230 V AC, 50/60 Hz

Operating temperature: 0 to 50 °C

Dimensions: 18.5 cm x 14.5 cm x 26.5 cm (W x H x D)

Weight: 4.7 kg (incl. 19”-housing)

Dewpoint Mirror Measuring Head TS-2M

Measuring principle: Optically scanned dewpoint mirror

Range: -50 to +50 °C dewpoint

Accuracy: ±0.15 °C at dewpoint temperatures above 0 °C, ±1 °C at dewpoint temperatures below 0 °C

Reproducibility: ±0.05 °C

Cooling: 2-stage Peltier cooler

Max. temperature difference: 60 °C to environment

Temperature sensor: Pt 100, class A

Required flow rate: 0.5 to 15 l/min

Hose connections: Hose fittings for 6 mm inner diameter by 8 mm outer diameter tubing

Operating temperature: -20 to +60 °C

Dimensions: Diameter 68 mm, height 98 mm

Weight: 800 g
