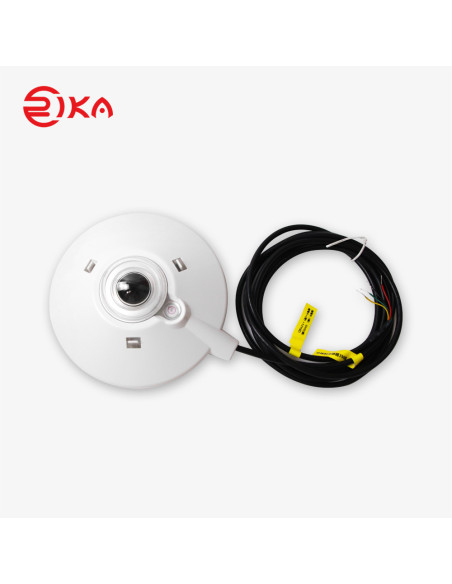

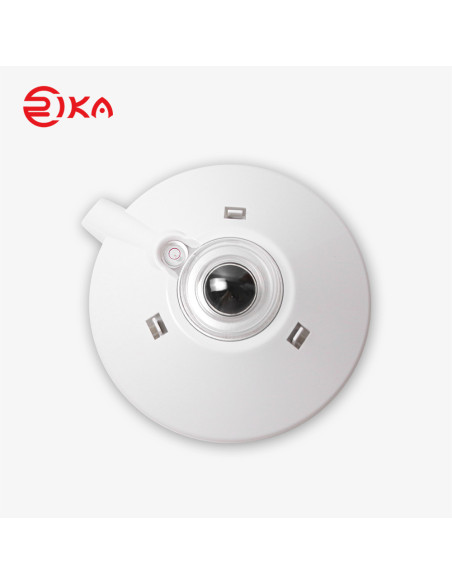

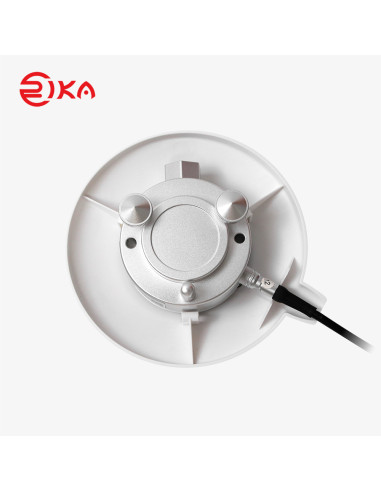

Reference: AO-200-03 - Manufacturer: AO-Electronics

The AO-200-03 pyranometer is manufactured using the thermopile principle; the sensing elements are made of sheet-plated thermopiles with muttsple contacts.

Its surface is coated with a black coating with a radiation height ratio.

Select Model
help_outlineAsk for Quote

Class A,B Pyranometer | AO-200-03

I accept privacy policy rules


ISO9060:2018: Class A

ISO9060:1990: Secondary Standard

Spectral Range: 280 ~ 3000 nm

Output: 0-20 MV

4-20 mA, RS485

Supply / 12-24 VDC

Range: 0-4000 W/m²

Sensitivity: 7-14 μV/(W/m²)

Nonlinearity: <± 0.2% (100 ~ 1000 W/m²)

Response Time: ≤ 5 s (95%)

Zero Drift (Temperature Drift: 5 kJ/h): <± 2 W/m²

Stability: <± 0.8%/year

Directional Response: ± 10 W/m²

Effect of Temperature: <1% (-10-40℃)

Operating Temperature: -40℃-+80℃

Recalibration Interval: 2 years

Calibration Base: ISO9847

Weight (unpacked): 0.8kg

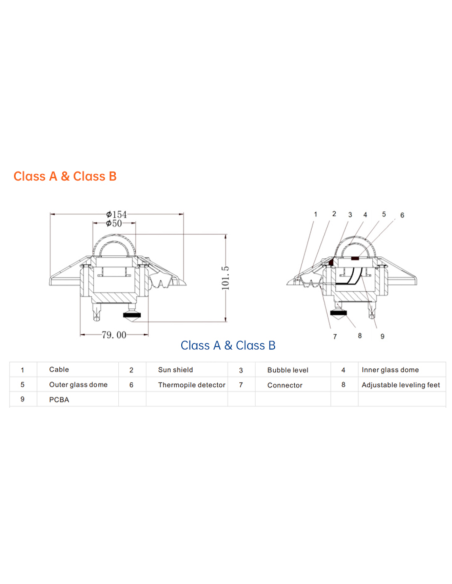

Dimensions: 154*101.5mm

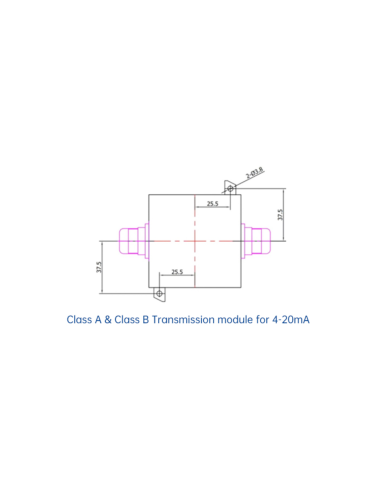

Transmission Module: 4-20mA: External, RS485: Built-in

Desiccant: Built-in

Mounting Bracket (optional): Horizontal or adjustable bracket

Ingress Protection: IP67

Storage Condition: 10℃-60℃@20%-90%RH 		 ISO9060:2018 - Class B

ISO9060:1990 - Class 1

Spectral Range - 280 ~ 3000 nm

Output - 0-20 MV

4-20 mA, RS485 - Supply / 12-24 VDC

Range - 0-2000 W/m²

Sensitivity - 7-14 μV/(W/m²)

Nonlinearity - ± 1% (100 ~ 1000 W/m²)

Response Time - ≤30 s (95%)

Zero Drift (Temperature Drift: 5 kJ/h) - < ± 4 W/m²

Stability - < ± 1.5%/year

Directional Response - ± 20 W/m²

Temperature Effect - <4% (-10-40℃)

Operating Temperature -40℃-+80℃

Recalibration Interval - 2 years

Calibration Base - ISO9847

Weight (unpacked) - 0.8kg

Dimensions - 154*101.5mm

Transmission Module - 4-20mA: External, RS485: Built-in

Desiccant - Built-in

Mounting Bracket (optional) - Horizontal or adjustable bracket

Ingress Protection - IP67

Storage Conditions - 10℃-60℃@20%-90%RH
