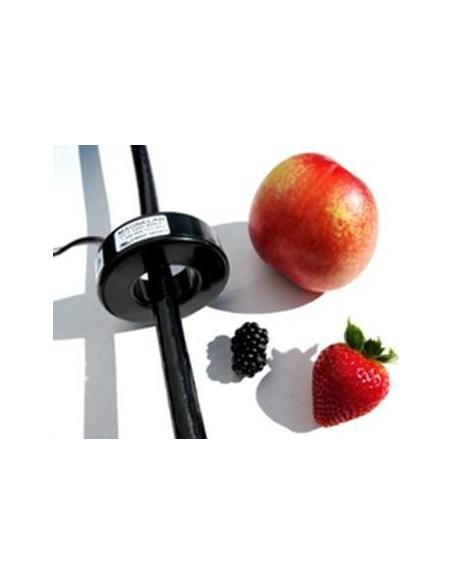

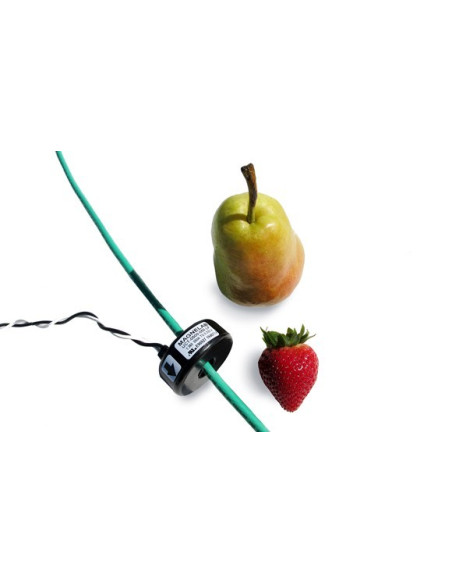

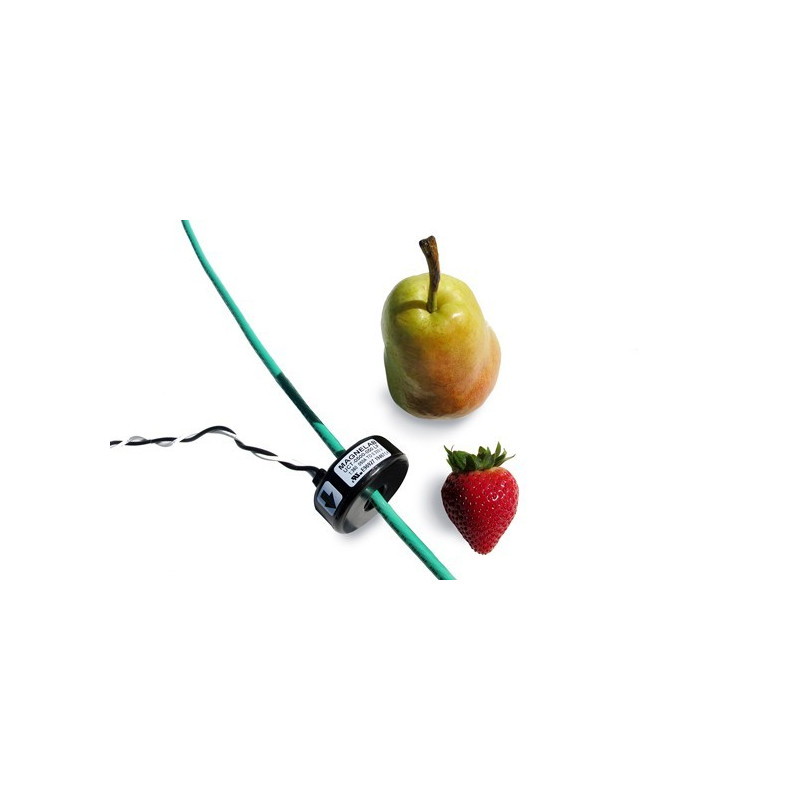

UCT-0500 Transductor de Corriente 5-60 Amp Precisión Clase 0.6

Descripción:
The Magnelab UCT current sensor models are better than one percent accuracy and less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction comes with eight feet twisted leads. Please contact Magnelab for other ratings and customized current sensor designs.

Características:

• Rated input current from 5 Amp to 60 Amp
• Output 0.333 Volt AC at rated current
• Phase angle < 1 degrees measured at 50% rated current
• Linearity accuracy ± 1% w/ accuracy at 10% to 130% of rated current
• 8 ft. twisted-pair lead and is UL recognized
• Custom output and other parameters are available
