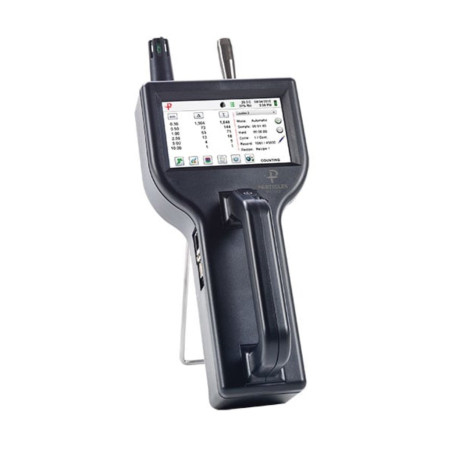

8506 Contador de Partículas portátil 8506 mede 0,5 a 25,0 μm com taxa de fluxo de 0,1 CFM

View larger

8506 Contador de Partículas portátil mede 0,5 a 25,0 μm com taxa de fluxo de 0,1 CFM

Reference: 8506

Condition: New

Model 8506
0,5 - 25 µm a 0,1 CFM

O contador de partículas portátil Particles Plus® 8506 mede 0,5 a 25 µm com uma taxa de fluxo de 0,1 CFM (2,83 LPM) e pode exibir até 6 canais de tamanho de partícula selecionáveis pelo usuário, bem como dados de temperatura e umidade.

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

GERAL
ESPECIFICAÇOES
Data sheet
Download

Tipo de Instrumento	Medidor Partículas no ar
O instrumento mede:	Contagem Óptica de Partículas
Instrumento para:	Partículas no Ar
Função:	Analisador Tamanho Partículas

8506 Datasheet Download (627.78k)

Fácil de configurar, este instrumento exibe até 6 canais de tamanho selecionáveis pelo usuário, além de temperatura e umidade relativa. Visualize dados e gere relatórios ISO 14644-1, EU GMP Annex 1 ou FS 209E na tela ou via impressora, chave USB, em tempo real através de suas versáteis opções de saída ou exporte para o software de download de dados Particles Plus®. Os contadores Particles Plus® podem ser controlados e monitorados remotamente via navegador da web. O 8506 também possui um modo de concentração de massa que aproxima a densidade em μg / m³.

Todos os contadores Particles Plus® atendem às normas ISO 21501-4 e JIS B9921. O 8506 garante a conformidade com um analisador de altura de pulso integrado.

Measures 0.5 μm to 25.0 μm

0.1 CFM (2.83 LPM) flow rate

Long-life laser diode technology

Measures up to 6 channels of simultaneous data

Approximates mass concentration in μg/m³

Integrated handle for one-handed operation

Large easy-to-use icon driven color touch screen display

Temperature and relative humidity probe included

Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes

Easy configuration and transferable from instrument to instrument

Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232

Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E

Internal audible alarm

User-definable reports

User-selectable channel sizes

Complies with ISO 21501-4 and JIS B9921 standards

Easy to clean and wipe down with minimal particle traps

Seamless integration into a facility monitoring system

Lightweight high-impact injection molded plastic enclosure

2 year warranty. Extended warranties available.

Size Range	0.5 to 25.0 μm
Size Channels	Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm variable binning
Flow rates	2.83 LPM (0.1 CFM)
Concentration Limit	4,000,000 Particles/ft³ @ 5% coincidence loss
Battery Run Time	10 hours
Light Source	Long life laser diode
Counting Efficiency	50% @ 0.5 μm; 100% for particles >0.75 μm per JIS
Zero Count	<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentration
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Printer (Optional)	External thermal printer
Vacuum Source	Internal pump with automatic flow control
Filtered Exhaust	Internal HEPA filter
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Audible Alarm	Adjustable built-in alarm
Battery	Removable Li-ion
Battery Recharge Time	4 hours within instrument (<2 hours with external battery charger)
Reports	ISO 14644-1, EU GMP Annex 1, FS 209E
Recipes	50 user-configurable recipes
Communication Modes	Ethernet and USB
Optional Communication Modes	Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor	Includes temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm	Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	High impact injection molded plastic
Dimensions (L x W x H)	10” x 5” x 4.5” (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight	2.2 lb (1.0 kg)
Accessories	Operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories	Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes
Buffer Memory	45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout
Sample Locations	Up to 1,000 locations 20 characters long
Sample Time	1 second to 99 hours
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions	32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty	2 Years. Extended warranties available.
