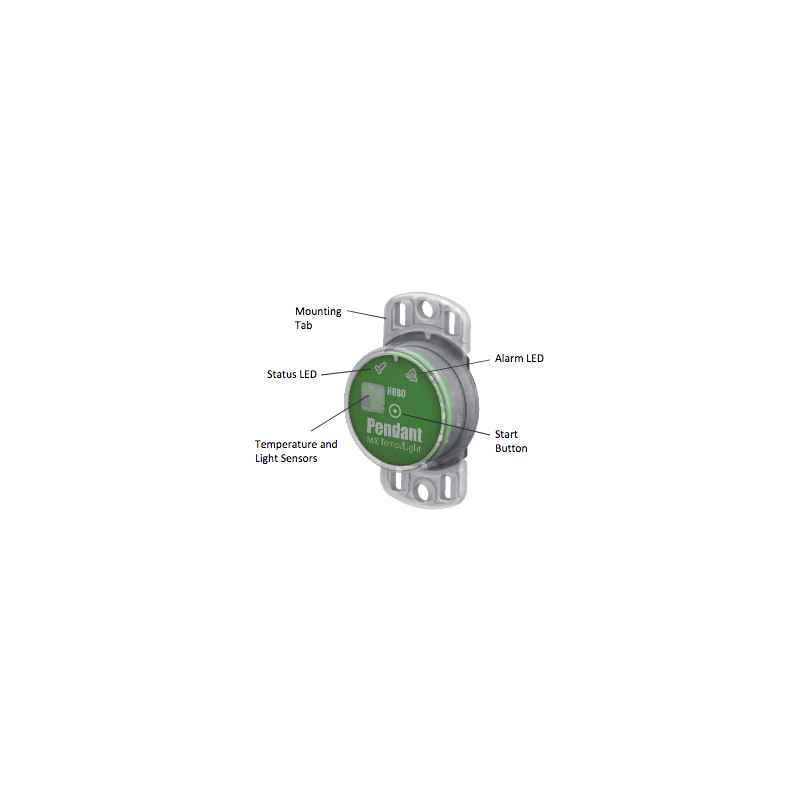

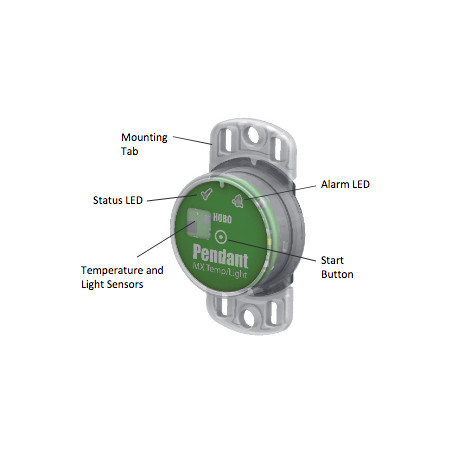

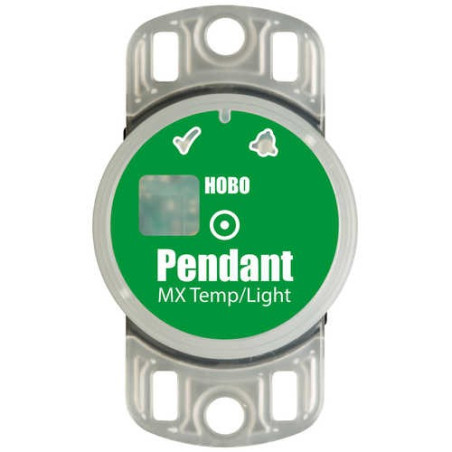

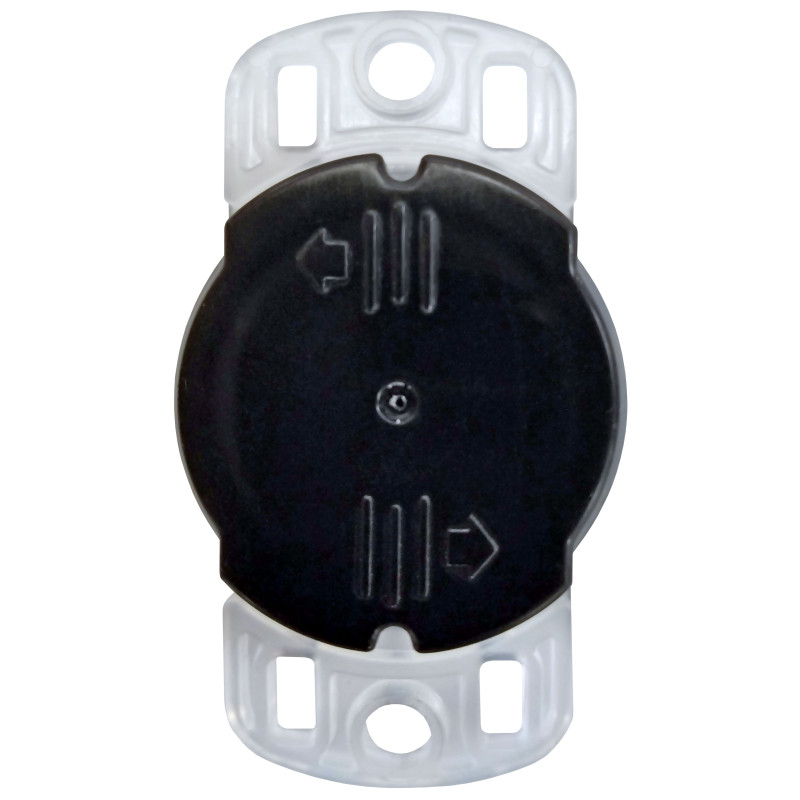

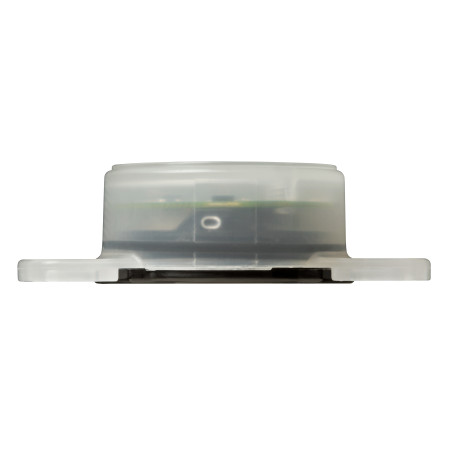

MX2202 Data logger HOBO Pendant® de Temperatura y Luz vía Bluetooth

Sensor Temperatura (MX2201 y MX2202)

Rango

-20° a 70°C (-4° a 158°F) en aire

-20° a 50°C (-4° a 122°F) en agua

Precisión

±0.5°C desde -20° a 70°C (-4° a 158°F)

Resolución

0.04°C (0.072°F)

Deriva

<0.1°C (0.18°F) por año

Tiempo de Respuesta

17 minutos típicos al 90% en aire circulando a 1 m/s, unmounted

7 minutos típicos al 90% en agua agitada, unmounted

Sensor de Luz (MX2202)

Rango

0 a 167,731 lux (15,582 lum/ft2)

Precisión

±10% typical for direct sunlight (see Light Measurement on page 2 for more details)

Logger

Potencia de Radio

1 mW (0 dBm)

Rango de Transmisión

Aprox. 30.5 m (100 ft) line-of-sight

Wireless Data Standard

Bluetooth Smart (Bluetooth Low Energy (BLE), Bluetooth 4.0)

Logger Operating Range

-20° a 70°C (-4° a 158°F) en aire

Logging Rate

1 segundo a 18 horas

Buoyancy (Fresh Water)

2g (0.07 oz) positive

Estanqueidad

Hasta 30.5 m (100 ft)

Memoria

96,000 medidas

Batería

CR2032 3V lithium, reemplazable por el usuario

Battery Life

1 año típico a 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.

2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software.

Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.

To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.

Time Accuracy

± 1 minute per month at 25°C (77°F)

Full Memory Dowload

Approximately 45 seconds; may take longer the farther the device is from the logger

Wetted Materials

Polypropylene case, EPDM O-ring

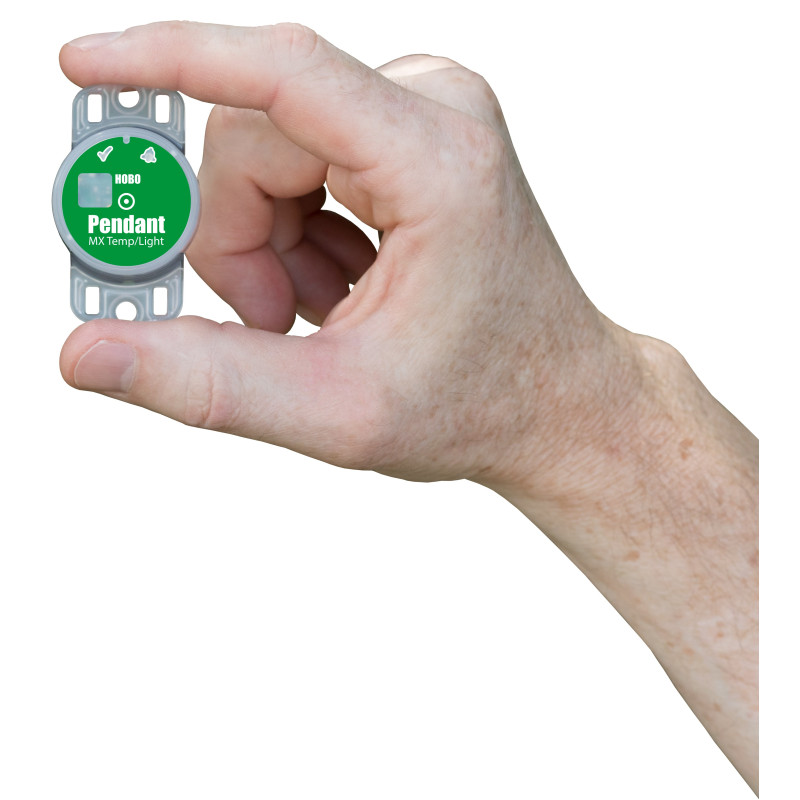

Dimensiones

3.35 x 5.64 x 1.6 cm (1.32 x 2.22 x 0.63 inches)

Peso

12.75 g (.45 oz)
