MCR-4V Registrador de Tensión Programable

Referencia: MCR-4V

Fabricante: TandD

Condición: Nuevo

Grupo 2

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

GENERAL
Especificaciones
Ficha técnica
Descargar

Número de Canales	4 canales
Con Display	Si
Clasificación IP	Interior IP50
Comunicaciones	USB
Duración Batería	Aprox. 4.5 a 150 días ( con baterías Alcalinas AA)

MCR-4V Descargar (1.36M)

Registrador de datos de cuatro canales. Hasta 4 unidades pueden ser acopladas entre sí por lo que es posible medir y registrar hasta 16 canales.

Mediciones rápidas y precisas son posibles con un intervalo de grabación más corto de 2 ms y una resolución mínima de tensión de 10 mV.

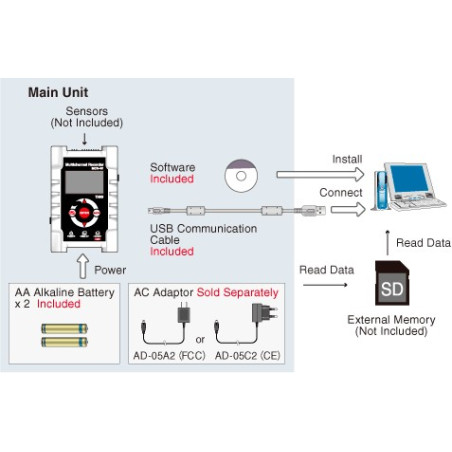

El uso de una conexión USB, los datos grabados pueden ser enviados directamente a un PC o una tarjeta SD (no incluida). Los datos también se puede ver y comprobar en la práctica pantalla LCD.

El registrador también cuenta con una función de precalentamiento mano - ahorrar energía de la batería mediante el suministro de energía sólo para el sensor que se utiliza para la grabación.

MCR-4V es conveniente para la medición de la tensión en los circuitos eléctricos, dispositivos de control e instrumentos de medición en las fábricas, la grabación de señales de actinometry, Anemoscopio, sensores de lluvia y los medidores de CO2. La unidad puede grabar señales de salida de una variedad de sensores y analizadores.

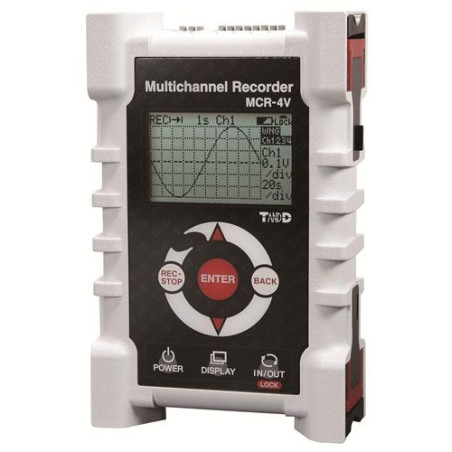

1. Input Terminal
2. Preheat Terminal
3. Coupling Lug
4. LCD Display
5. Touch Panel (touchpad and control wheel)
6. SD Memory Card Slot
7. USB Port
8. Battery Cover

MCR-4V
Measurement Channels	Voltage 4ch
Input Method	Scanning Method, Differential Input, Each Channel Isolated
Input Impedance	Approx. 1.1 MΩ
Input Frequency	DC - 100 Hz
Measurement Range	±300 mV, ±1.5 V, ±6 V, ±24 V, Auto (*1) Absolute Maximum Input Voltage: ±50 V
Accuracy	When the 50-60 Hz filter is ON, varies with the Measurement Range as follows: ±300 mV : ±(0.3 % + 0.06 mV) ±1.5 V : ±(0.3 % + 0.3 mV) ±6 V : ±(0.3 % + 0.6 mV) ±24 V : ±(0.3 % + 2.4 mV) Auto : According to the range in use
Measurement Resolution	50-60 Hz Filter ON　: 0.01 mV 50-60 Hz Filter OFF : 0.1 mV
Preheat Function	Allowable Voltage Range : 3 to 24 V ( external power supply ) Allowable Maximum Current : 1.0 A
Recording Method	Instantaneous, Average, or Ave. Fine
Recording Interval	2, 5, 10, 20, 50, 100, 200, 500 ms. 1, 2, 5, 10, 15, 20, 30 sec. 1, 2, 5, 10, 15, 20, 30, 60 min. (The minimum interval will depend on the number of channels, measurement range, and 50-60 Hz filter setting.)
Logging Capacity(*2)	When recording 1 channel : up to 480,000 readings/ch When recording 2 channels : up to 240,000 readings/ch When recording 3 channels : up to 160,000 readings/ch When recording 4 channels : up to 120,000 readings/ch
Recording Mode	Endless ( Overwrite oldest data in the current recording session when capacity is full ) One Time ( Stop recording when capacity is full )
Recording Start Method	Immediate Start or Programmed Start ( by individual logger or by group )
Recording Stop Trigger	ON or OFF

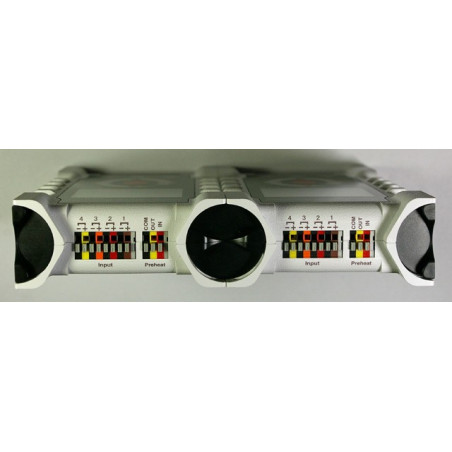

Group Recording	Up to 4 units (16 channels) can be recorded simultaneously. ( Coupling of MCR-4V and MCR-4TC is possible. (*3))
LCD Display Items	Measurements, Trend Graph, Battery Level, etc.
Communication Interfaces	USB Communication
Communication Time	Download Times for Full Data via USB - While recording ( at recording interval of 2 ms. ) : Approx. 3 minutes 30 seconds - With recording stopped: Approx. 1 minute 30 seconds - From a slave unit: Approx. 4 minutes 30 seconds
External Memory	SD Memory Card, SDHC Memory Card (*4) ( For Manual or Automatic Data Export )
Power	AA Alkaline Battery x 2 (AA Ni-MH batteries may also be used) AC Adaptor (AD-05A2 or AD-05C2) USB Power ( 5 V 250 mA )
Battery Life (*5)	Approx. 4.5 to 150 days ( with AA alkaline batteries )
Input Terminal / Preheat Terminal	Screwless Terminals < Compatible Wires > Single Wire : ø 0.32mm to ø 0.65mm ( AWG 28 - 22 ) Twisted Wire : 0.08mm² to 0.32mm² ( AWG 28 - 22 ), ø 0.12 mm or more in diameter Stripping Length : 9 to 10 mm
Isolation	CH1, CH2, CH3, CH4, USB, and Preheat are isolated. ( Battery terminals are not isolated from the CH1-CH4 input terminals. ) CH1-CH4 Maximum Applied Voltage : ± 50 V Electrical Isolation Resistance : 50 MΩ or more （ DC ± 250 V ）
Dimensions	H 120 mm x W 75 mm x D 32 mm
Weight	Approx. 190 g ( including batteries )
Operating Environment	Temperature: 0 to 50 °C Humidity: 90 %RH or less ( no condensation )
Accessories	AA Alkaline Battery x 2, USB Communication Cable (US-15C), Software (CD-ROM), Card Slot Cover, User's Manual Set (Warranty Included)
1 : When "Auto" is selected, measurement range will be automatically changed according to the voltage being measured. 2 : If the logging capacity is not filled at the end of one recording session, the logger can record up to 30 times. 3 :Group Recording may not be started depending on the recording or measurement interval specifications of the connected Master unit. 4 : Please check the [Funciones] for information on memory cards whose operation has been confirmed. *5 : Battery life varies depending upon multiple factors including measurement interval and 50-60 Hz filter setting. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
