Especificaciones Generales

Temperature Range: -20°C to 1000°C

Interface: RS485 Modbus RTU

Accuracy: ±1% of reading or ±1ºC whichever is greater

Repeatability: ± 0.5% of reading or ± 0.5°C whichever is greater

Emissivity: 0.2 to 1.0

Response Time, t: 90125 ms (90% response)

Spectral Range: 8 to 14 μm

Supply Voltage: 6 to 28 V DC

Supply Current: 50 mA max.

Baud Rate: 9600 baud (other configurations available upon request)

Modbus Data Format: 8 data bits, no parity, 1 stop bit (other configurations available upon request)

Protocol: Modbus over Serial Line

Configuration:
Configuration Method: Via USB using Calex Config or other Modbus software

Configurable Parameters: Emissivity Setting, Averaging, Peak/Valley Hold Processing, Reflected Energy Compensation

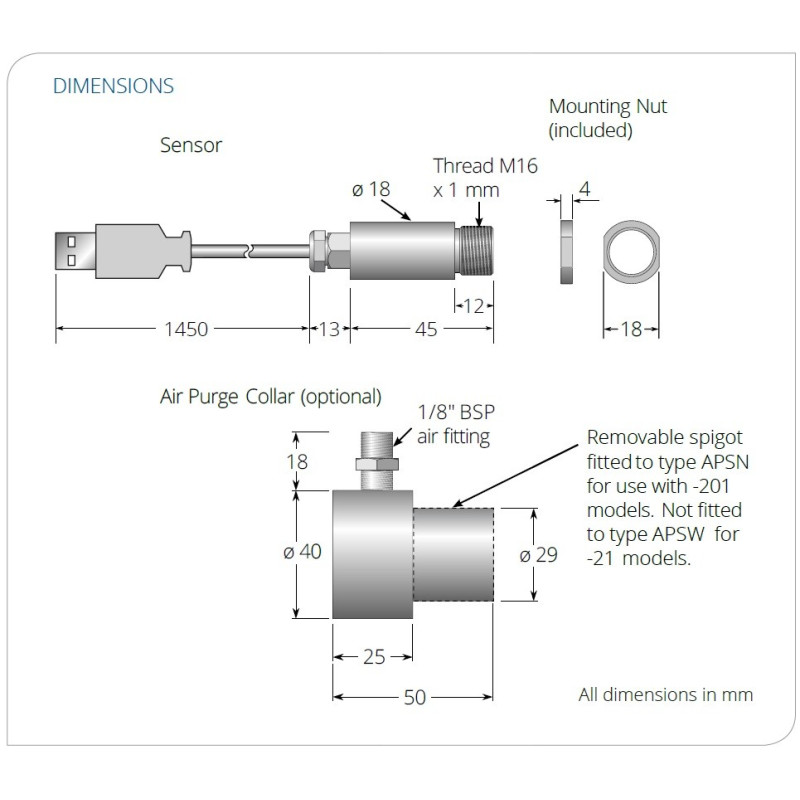

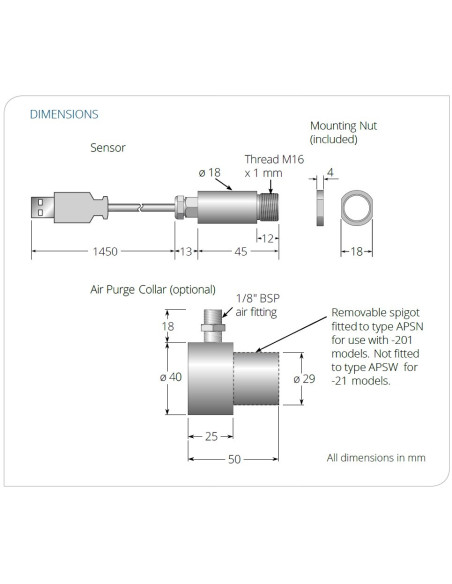

Dimensiones (mm)

Air Purge Collar

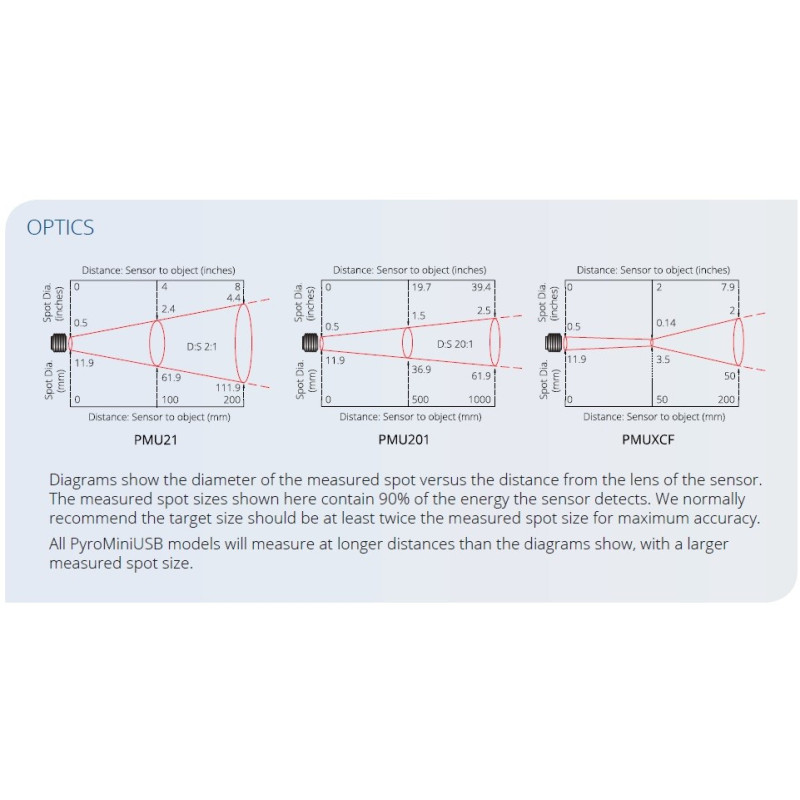

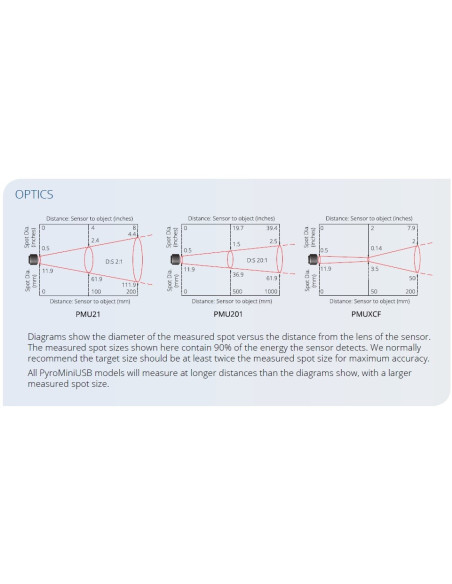

► Óptica PMU21 2:1 - para objetivos grandes o de cerca

► Óptica PMU201 20:1 - para objetivos pequeños o distantes

► PMUXCF Óptica de foco cercano (Ø 3,5 mm a 50 mm de distancia)
