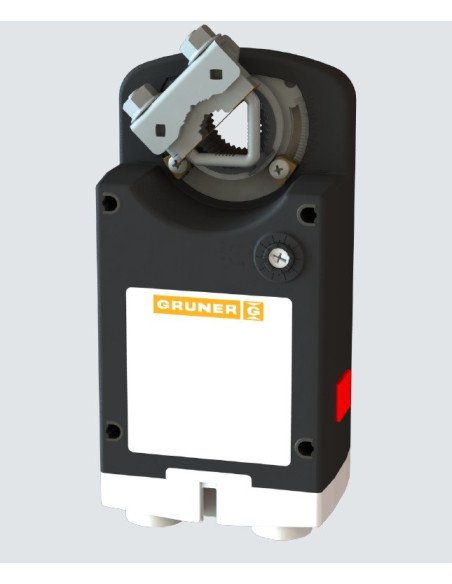

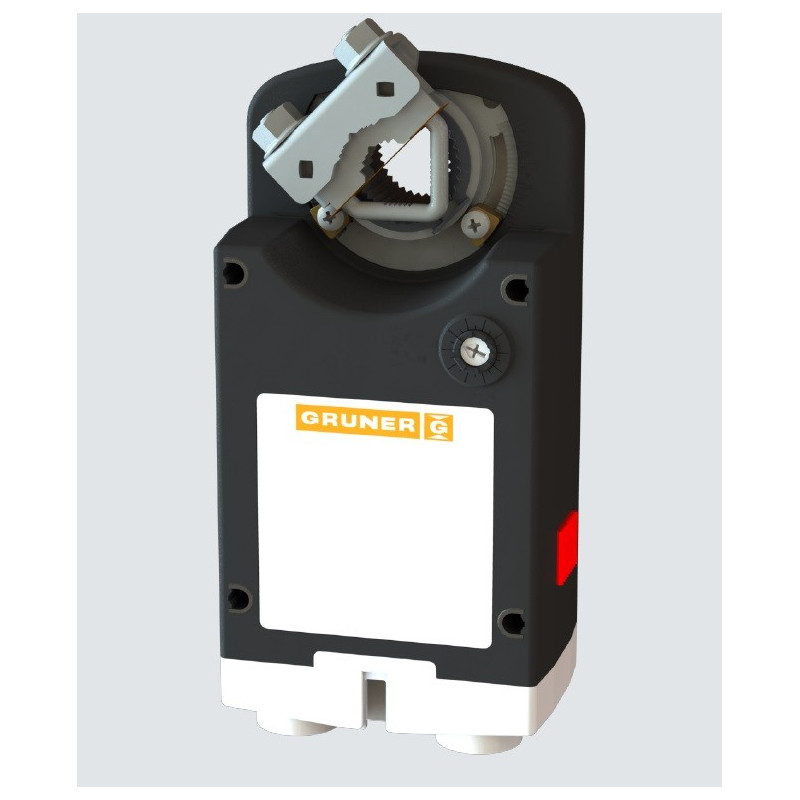

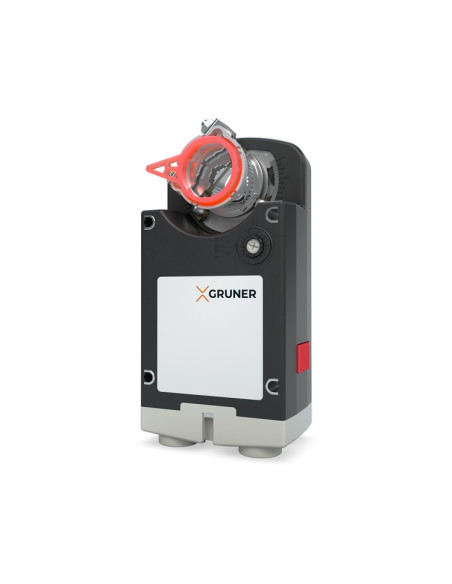

Actuador Rotativo Ref.: 363-024-20-S2

Referencia: Gruner 363-024-20-S2

Fabricante: Gruner

Condición: Nuevo

Actuador rotativo para ajustar compuertas en instalaciones HVAC

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

GENERAL
ESPECIFICACIONES
MODELOS
Ficha técnica
Descargar

---------- INDUSTRIA ------------	Actuadores Rotativos

Gruner 363-024-20-S2 Specs Descargar (897.39k)

EC-Declaration of Conformity Descargar (159.77k)

- Duración: 150 s / 90 °
- Par: 20 Nm
- Tensión nominal: 24 VAC / DC
- Control: 2- / 3 puntos
- Interruptor auxiliar: 2x ajustables libremente
- Tamaño de la compuerta: hasta aprox. 4 m²
- Acoplamiento del eje: abrazadera cuadrada 9-18 mm / redonda 9-26 mm

Electrical data
Nominal voltage	24 VAC/DC, 50/60 Hz
Nominal voltage range	19...29 VAC/DC
Power consumption motor (motion)	3,0 W
Power consumption standby (end position)	1,5 W
Wire sizing	4,5 VA
Control	2-/3-point
Feedback signal	-
Auxiliary switch	2 x SPDT (Ag)
Contact load	5 (2,5) A, 250 VAC
Switching point	0...95°
Connection motor	cable 1000 mm, 3 x 0,75 mm² (halogen free)
Connection feedback potentiometer	-
Connection auxiliary switch	cable 1000 mm, 6 x 0,75 mm²(halogen free)
Connection GUAC	-
Functional data
Torque	20 Nm
Damper size	up to approx. 4 m²
Synchronised speed	±5%

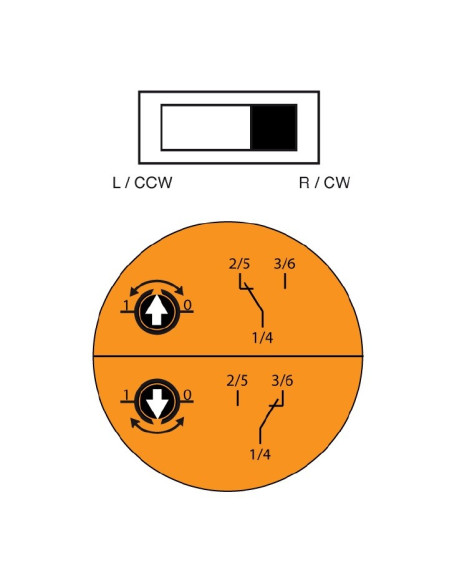

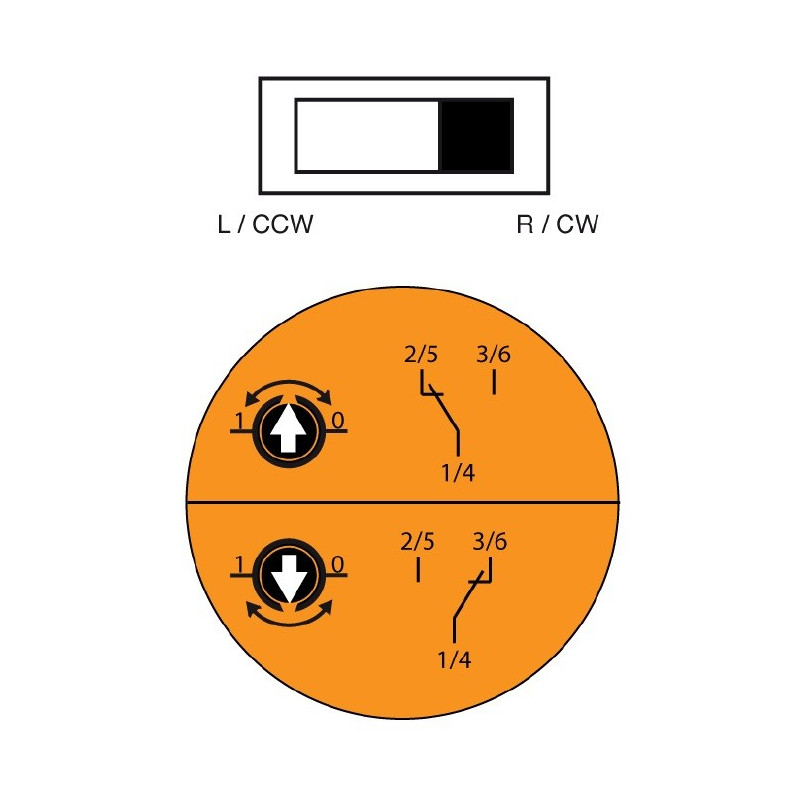

Direction of rotation	selected by switch
Manual override	Gearing latch disengaged with pushbutton, self-resetting
Angle of rotation	0°...max. 95° can be limited with adjustable mechanical end stops
Running time	150 s / 90°
Sound power level	< 45 dB(A)
Shaft coupling	clamp ◊ 9-18 mm / Ø 9-26 mm
Position indication	mechanical with pointer
Service life	> 60 000 cycles (0°...95°...0°)
Safety
Protection class	III (safety extra-low voltage)
Degree of protection	IP 54
EMC	CE (2014/30/EU)
LVD	CE (2014/35/EU)
RoHS	CE (2011/65/EU - 2015/863/EU - 2017/2102/EU)
Mode of operation	Typ 1 (EN 60730-1)
Rated impulse voltage	0,8 kV (EN 60730-1)
Control pollution degree	3 (EN 60730-1)
Ambient temperature normal operation	–30°C...+50°C
Storage temperature	–30°C...+80°C
Ambient humidity	5...95% r.H., non condensing (EN 60730-1)
Maintenance	maintenance free
Dimensions / Weight

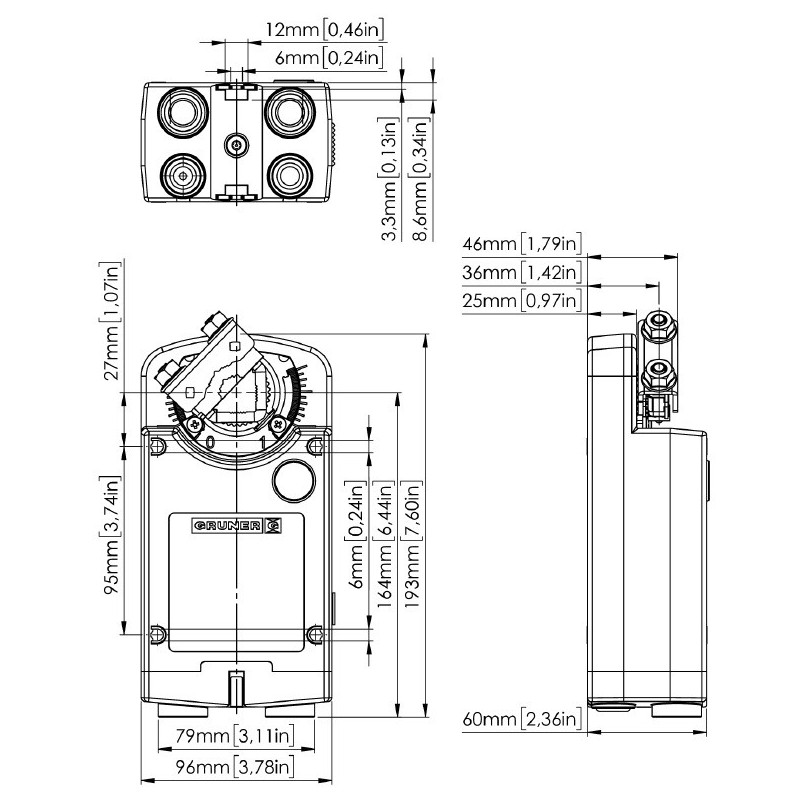

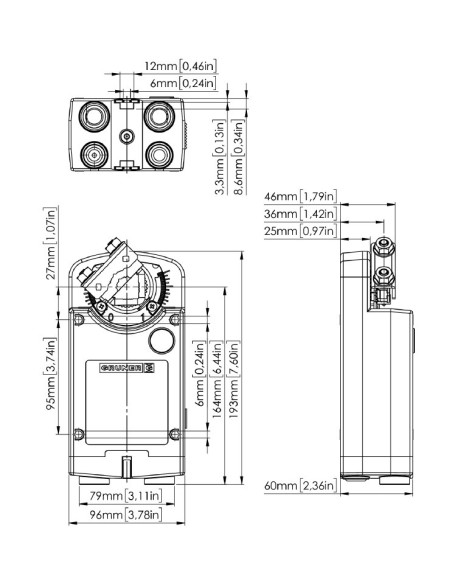

Dimensions	193 x 96 x 60 mm
Weight	1700 g
