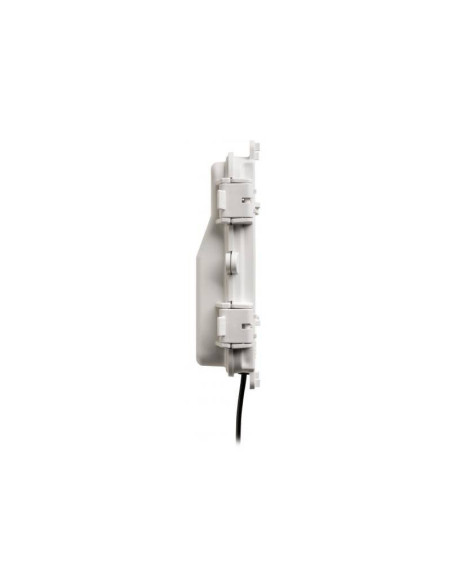

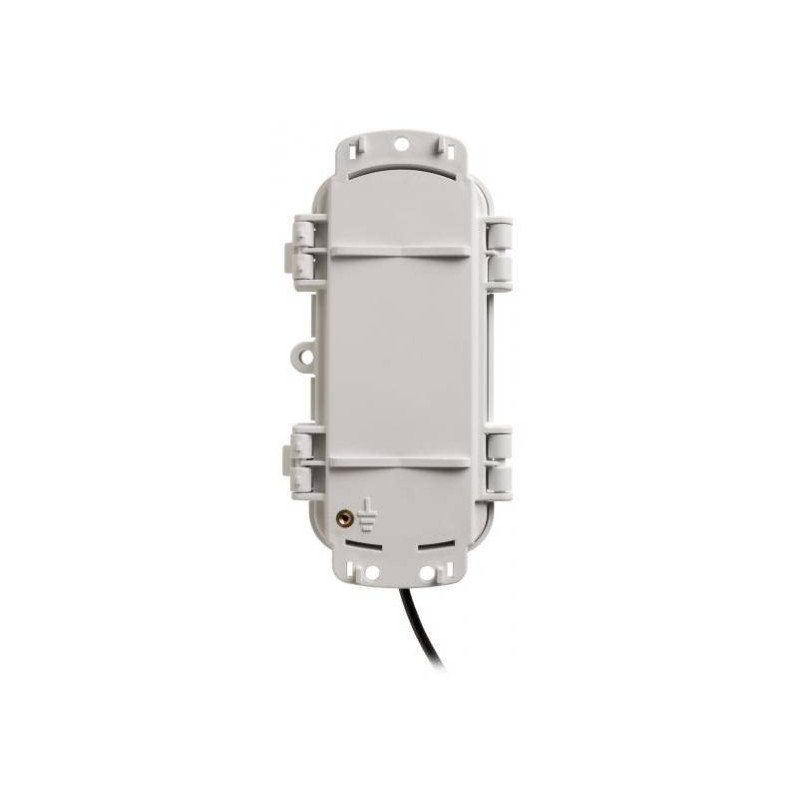

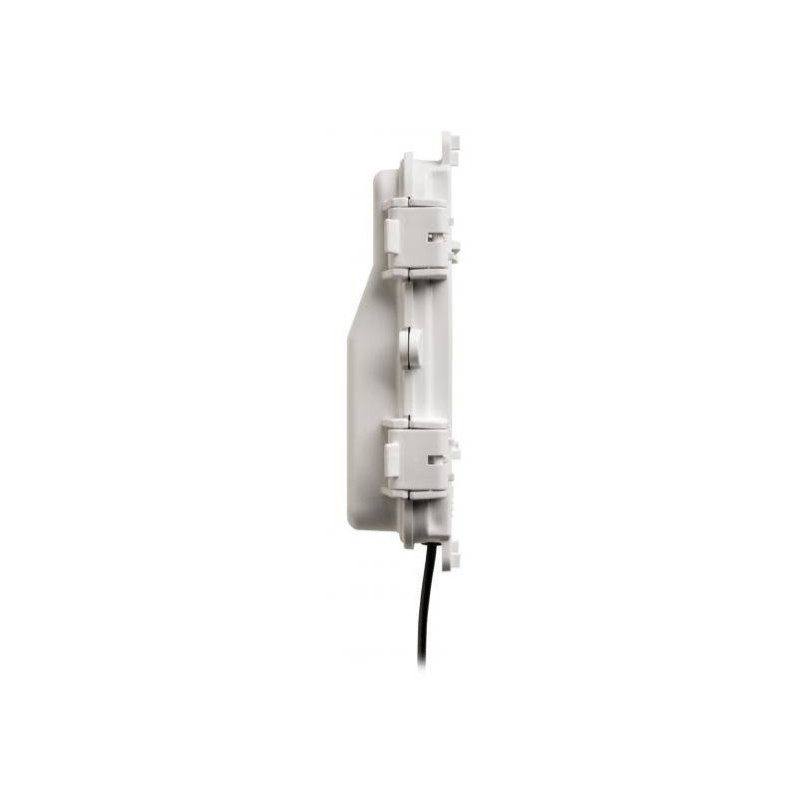

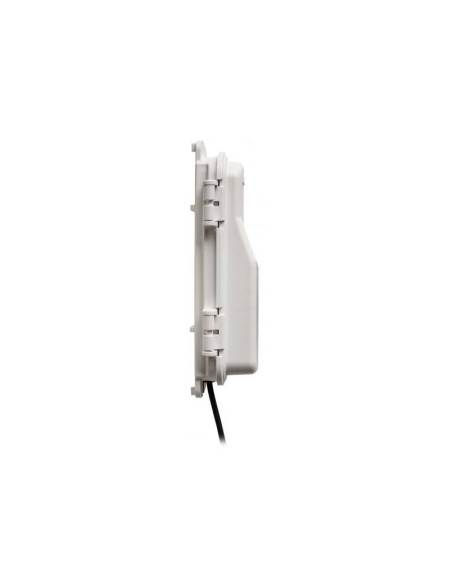

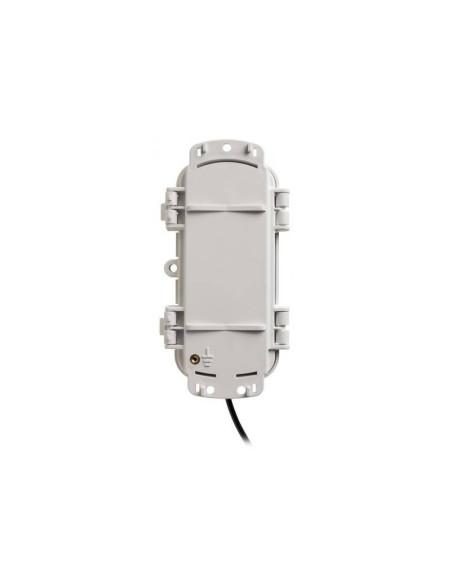

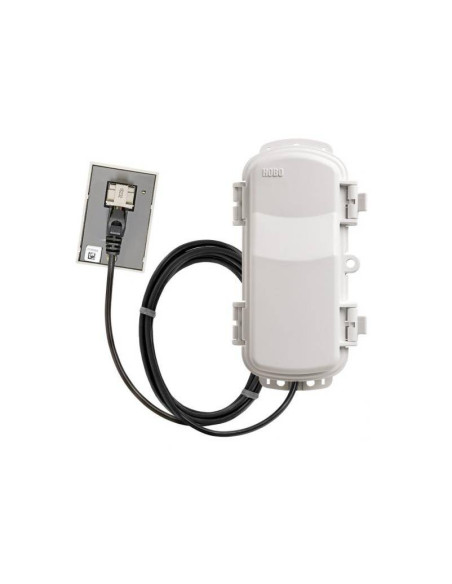

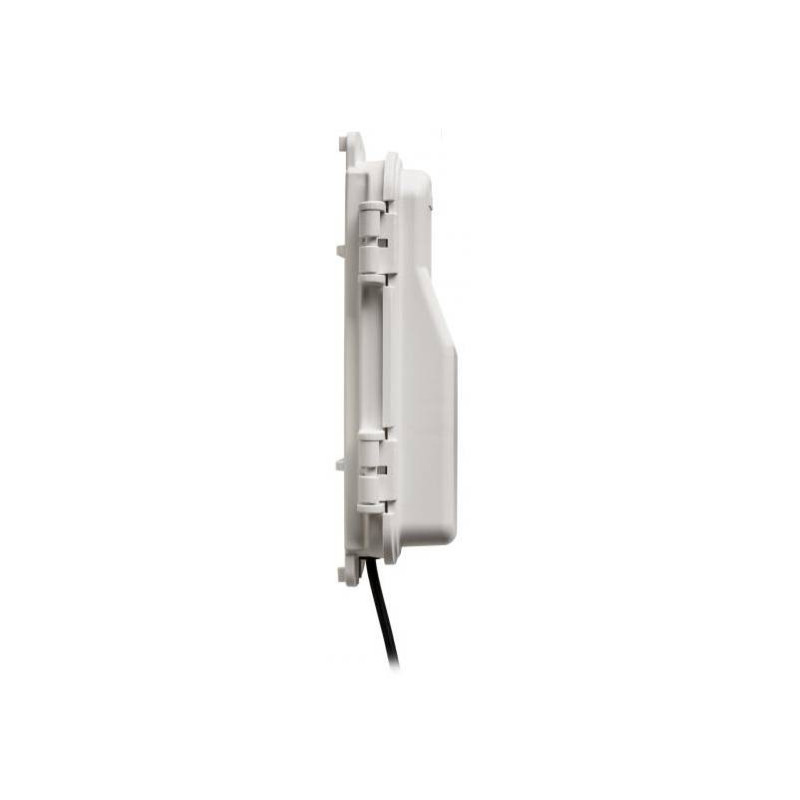

RXMOD-RXW-868 Administrador Inalámbrico de HOBOnet

Operating Temperature Range

-25° to 60°C (-13° to 140°F)

Radio Power

12.6 mW (+11 dBm) non-adjustable

Transmission Range

Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high

Wireless Data Standard

IEEE 802.15.4

Radio Operating Frequencies

RXMOD-RXW-868: 866.5 MHz

Modulation Employed

OQPSK (Offset Quadrature Phase Shift Keying)

Data Rate

Up to 250 kbps, non-adjustable

Duty Cycle

<1%

Maximum Number of Motes

50 motes per one RX Wireless Sensor Network

Power Source

Powered by the RX3000 station

Dimensions

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Cable length: 2 m (6.56 ft)

Weight

Mote: 159 g (5.62 oz)

Materials

Mote: PCPBT, silicone rubber seal

Environmental Rating

Mote: IP67, NEMA 6

Compliance Marks

RXMOD-RXW-868
