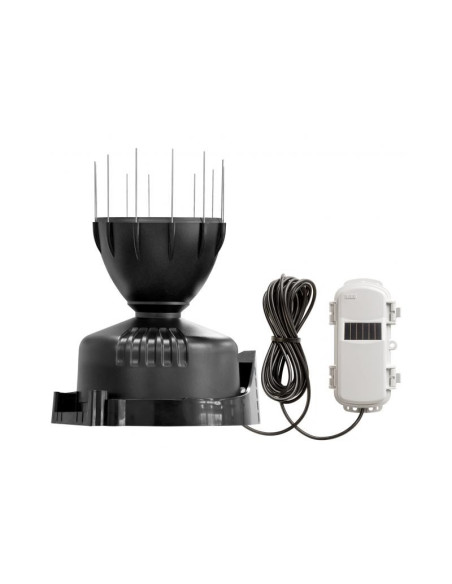

RXW-RGF-868 Sensor de Lluvia de HOBOnet (Métrico)

Measurement Range

0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval

Accuracy

±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour

Resolution

0.01 in.

Calibration

Requires annual calibration; can be field calibrated

Operating Temperature Range

-25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteries

Radio Power

12.6 mW (+11 dBm) non-adjustable

Transmission Range

Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high

Wireless Data Standard

IEEE 802.15.4

Radio Operating Frequencies

RXW-RGF-868: 866.5 MHz

Modulation Employed

OQPSK (Offset Quadrature Phase Shift Keying)

Data Rate

Up to 250 kbps, non-adjustable

Duty Cycle

<1%

Maximum Number of Motes

50 motes per one RX Wireless Sensor Network

Battery Type/ Power Source

Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F)

Battery Life

With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use

Memory

16 MB

Dimensions

Sensor: 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area
Cable length: 2 m (6.6 ft)

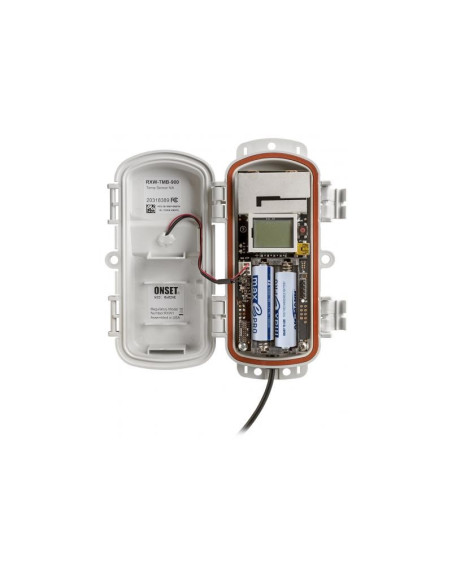

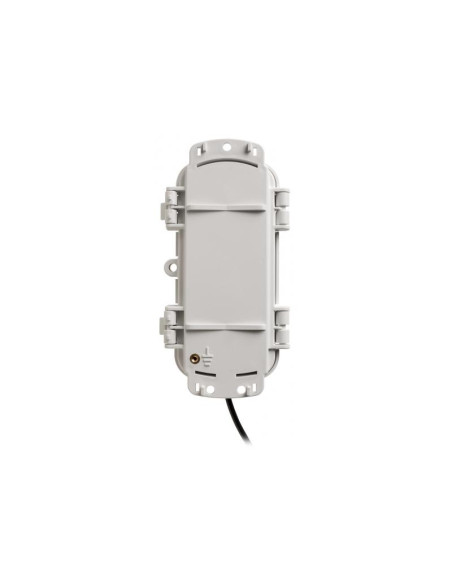

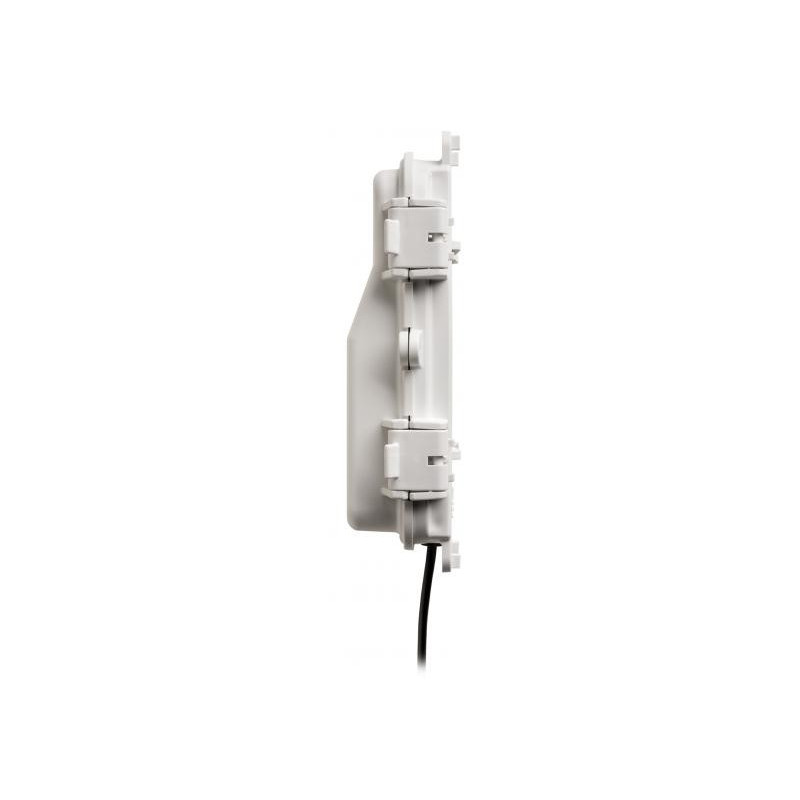

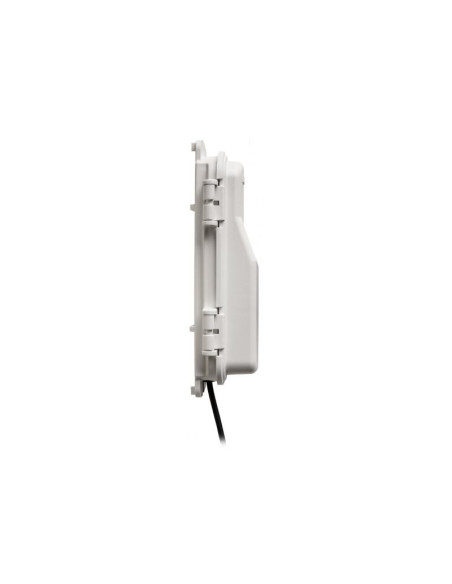

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

Weight

Sensor and cable: 1.2 kg (2.7 lbs) Mote: 223 g (7.87 oz)

Materials

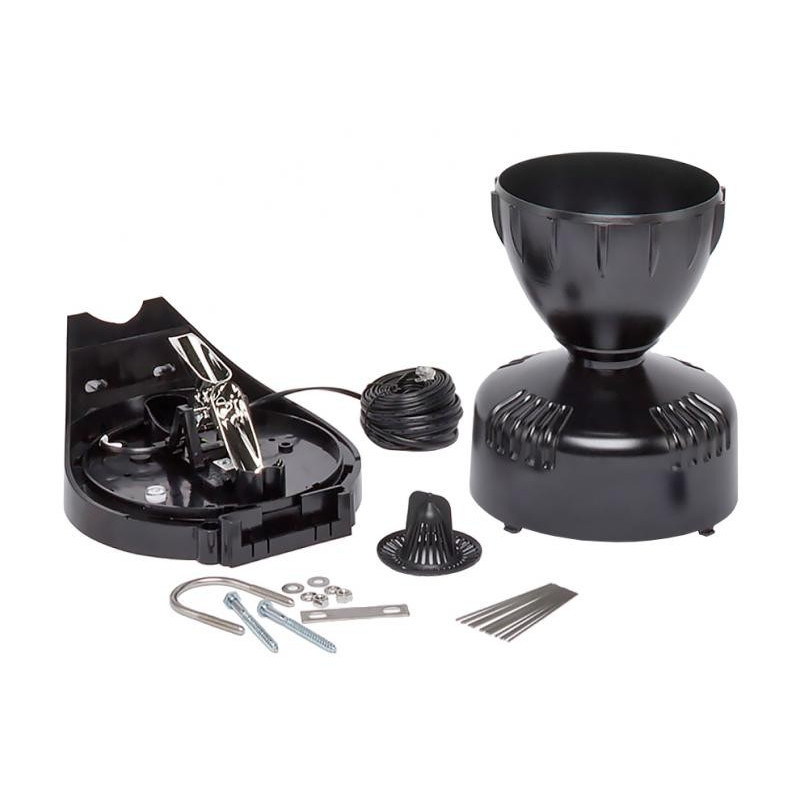

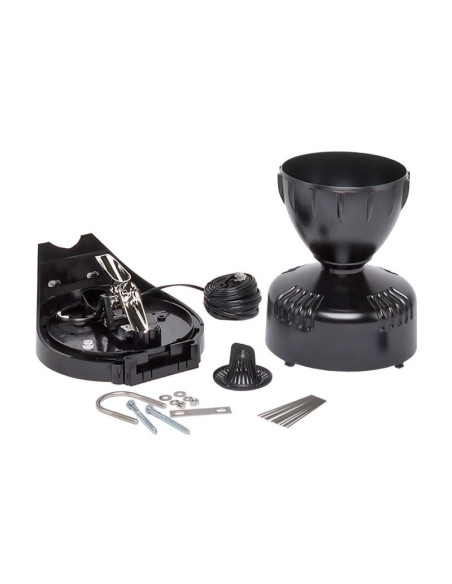

Sensor: UV-stabilized ABS plastic housing; tipping bucket mechanism with magnetic reed switch pivots on metal shaft
Mote: PCPBT, silicone rubber seal

Environmental Rating

Sensor: Weatherproof
Mote: IP67, NEMA 6

Compliance Marks

     RXW-RGF-868
