Registradores de Datos para Dendrómetros y sensores de Flujo de Savia DL18-BLE

Ver más grande

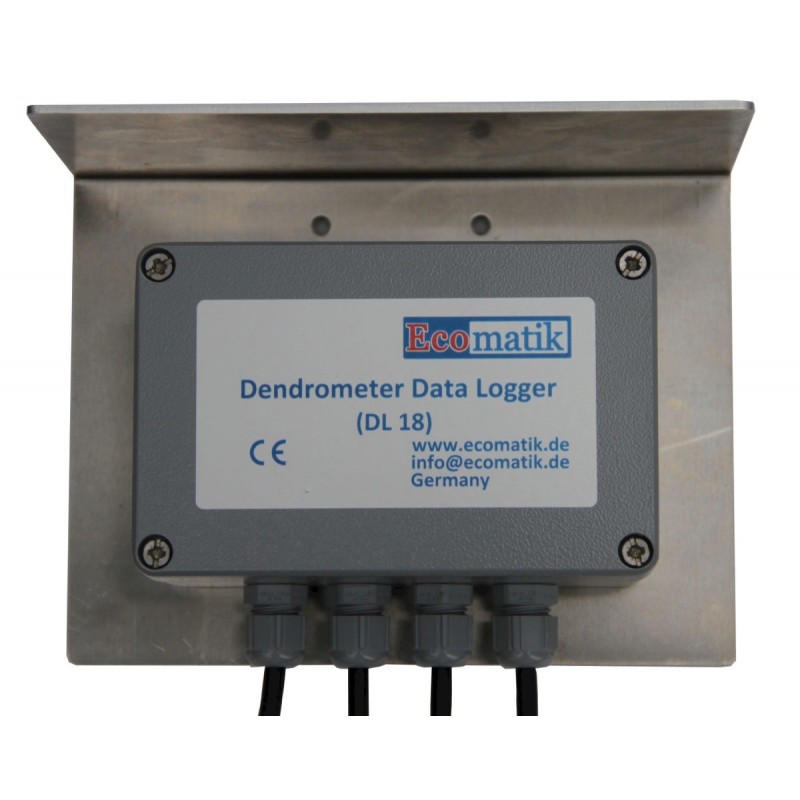

DL18-BLE Registradores de Datos Bluetooth-BLE para Dendrómetros y sensores de Flujo de Savia

Referencia: DL18-BLE

Fabricante: Ecomatik

Condición: Nuevo

Mini-sistemas con registrador de datos DL18-BLE

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

GENERAL
ESPECIFICACIONES
SENSORES COMPATIBLES
Ficha técnica
Descargar

Entorno de Uso	Interior/Intemperie
Número de Canales	4 Analógicos
Nº Bits ADC	16 bit
Clasificación IP	IP67
Comunicaciones	Bluetooth BLE
Duración Batería	1 año
Capacidad Memoria	1.9 millones de medidas

DL18-BLE Data Sheet Descargar (132.99k)

DL18-BLE Manual Descargar (662.86k)

ECOMATIK proporciona el registrador de datos dendrométrico DL18-BLE (Bluetooth de Baja Energía) que cubre todas las características y opciones de registro relevantes para medidas dendrométricas precisas y eficientes.

Adecuado para conectar 1 a 4 dendrómetros, efectos de temperatura compensada, 16 bits, resolución 0.2-0.5 µm (independientemente del tipo de dendrómetro), RAM para almacenamiento de datos de 1 900 000 (suficiente para una medición de un año con 4 dendrómetros, intervalo de medición de 1 min. ), Puerto USB, una batería interna dura más de 1 año de medición.
Ideal para mediciones a largo plazo con dendrómetros.
Se suministra con caja de intemperie y visera protectora.

Los dendrómetros ECOMATIK son compatibles con todos los registradores de datos populares (por ejemplo, Campbell, Delta-T, DT80). Brindamos asistencia para conectar nuestros dendrómetros con los registradores de datos.

Comparativa DL18 y DL18-BLE:

Logger-Type	Mini Logger DL 18	Mini Logger DL 18-BLE
Scope of application	Battery-powered data recording in outdoor conditions	Battery-powered data recording in outdoor conditions. Bluetooth data transfer to smartphone/tablet particularly advantageous if logger accessibility is difficult (e.g., if attached to a greater height in the tree)
Compatible Sensors	Sensors with analogue output signal: - Dendrometer (all models) - Temperature sensors (T-Series) - Leaf temperature sensor (LAT-B2) - T/RH air sensor (EM 14) - Soil moisture sensor (SMT100) - Light sensors (Par: EM 20; Pyranometer: EM 25)	Sensors with analogue output signal: - Dendrometer (all models) - Temperature sensors (T-Series) - Leaf temperature sensor (LAT-B2) - T/RH air sensor (EM 14) - Soil moisture sensor (SMT100) - Light sensors (Par: EM 20; Pyranometer: EM 25)
Special features/limitations	Small; robust, weatherproof metal box; cost-effective; easy to use; long battery life	Small; robust, weatherproof plastic box; wireless communication with mobile devices via Bluetooth; cost-effective; easy to use; long battery life
Number of measuring channels & measuring range	4 channels for 0 to 2.5 V	4 channels for 0 to 2.5 V
Recording interval	Adjustable between 1 sec and 18 hours (averaging possible)	Adjustable between 1 sec and 18 hours (averaging possible)
Storage capacity	4 MB (max. 1,900,000 measured values) e.g. For 4 channels and 30 minutes recording interval sufficient for 7,900 days	4 MB (max. 1,900,000 measured values) e.g. For 4 channels and 30 minutes recording interval sufficient for 7,900 days
Resolution	40 μV e.g.: Dendrometer, depending on the model: 0.2 to 1 μm T-Series, LAT-B2: 1.6 * 10^-3 ° C	40 μV e.g.: Dendrometer, depending on the model: 0.2 to 1 μm T-Series, LAT-B2: 1.6 * 10^-3° C
Accuracy	± 0.1 mV ± 0.1% of measured value	± 0.1 mV ± 0.1% of measured value
By the logger supplied sensor excitation voltage	2.5 V (switched, stabilized)	2.5 V (switched, stabilized)
Logger powering & battery life	2x AAA cell, user-replaceable Battery life: typically 1 year with a logging interval of 1 minute	2x AAA cell, user-replaceable Battery Life: typically 1 year with a logging interval of 1 minute and activated Bluetooth
Interface	USB to PC (Windows or MacOS)	Bluetooth Low Energy to Windows-PC, tablet or smartphone (Android or iOS); range up to 30 m line-of-sight
Operational conditions	Normal outdoor conditions, recording -20 to 70 ° C, 0 to 100% relative air humidity	Normal outdoor conditions; recording -20 to 70 ° C, 0 to 100% relative air humidity
Size and Weight	17x13x8 cm, 725 g (complete in metal protection with mounting plate)	17x13x8 cm, 600 g (complete in plastic protection with mounting plate)
