AO-DWL-20 Temperature & Humidity Data Logger Sound Light Alert Large LCD USB
AO-DWL-20
New
● USB interface communicate with PC for setup and data download
● Each unit has single serial number
● User can set access password fo each data logger
● Start logging method: Immediately, Button, Start at
● Replaceable battery and data is not lost if exhausted
● Two point calibration for each channel
● Alarm limit settings for all channels
● User can customize new unit easily
● User can name each channel and enable/disable it
● External probe is waterproof and its length can be customized
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| With Display | Yes |
| Memory Capacity | 32000 |
This data logger can measure and store humidity/temperature readings automatically.

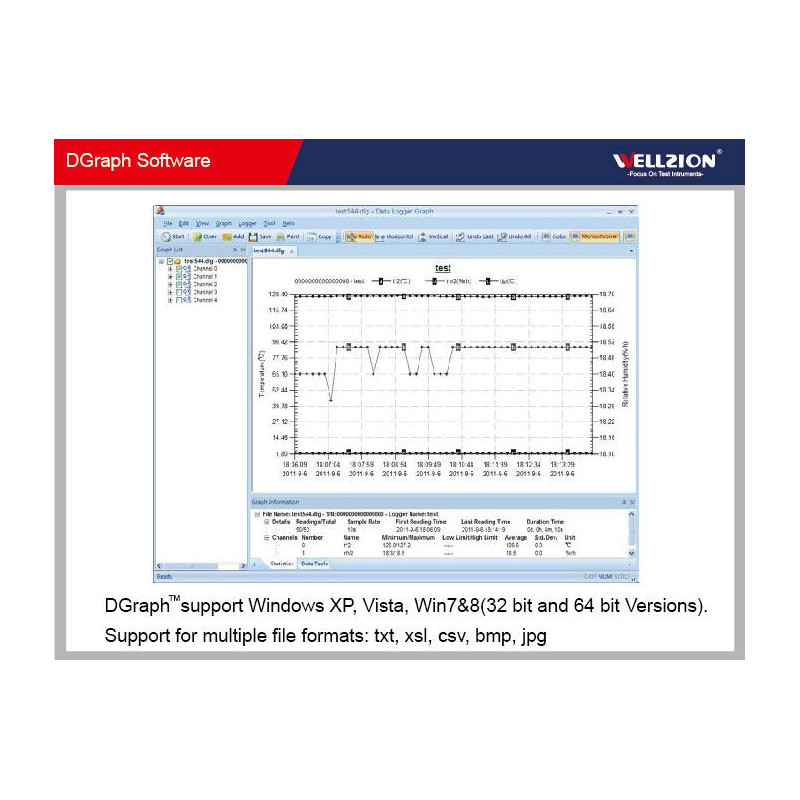

It has a large LCD that can display realtime readings and logging information.This unit can start a sound and light alarm if exceeds the user set limits. More professional applications can be provided by the unique PC software DGraph under Windows 7 / 8 / 10 (32 / 64 bits).
User can easily use the software to setup and download data to PC via USB. And user can view, analyse and print the data, or export other fi le formats (txt, xls, csv, bmp, jpg).
- Temperature Range: -35~80 °C (-31~176 °F)
- Temperature Accuracy: ±0.5 °C (±0.5 °F)
- Temperature Resolution: 0.1 °C (0.2 °F)
- Relative Humidity Range: 0~100 % RH
- Relative Humidity Accuracy: ±3 % RH
- Relative Humidity Resolution: 0.1 % RH
- Sensor Location: Internal
- Memory Capacity: 32,000
- Sample Rate: 2 s to 24h
- PC Software: DGraph software and USB driver required (Included in CD)
- Power Supply: Rechargeable Lithium Battery, or USB interface to Power
- Case Material: ABS
- Dimentions: 120 mm × 74 mm × 24 mm (4.8" × 2.9" × 0.9")
- Weight: Approx. 130 grams (4.59 oz)
| Model | Rango de medición | Accuracy (Type) | Waterproof | Sensor Location | Battery Life (Years, Type) |
| DWL-20 | -35~80°C(-31~176°F) 0 to 100%RH |
±0.3°C ±3%RH |
IP54 | Internal | 0.5 |
| DWL-21 | -35~80°C(-31~176°F) 0 to 100%RH |
±0.3°C ±2%RH |
IP54 | Internal | 0.5 |
| DWL-20E | -40~125°C(-40~257°F) 0 to 100%RH |
±0.3°C ±3%RH |
IP54 | External | 0.5 |
| DWL-21E | -40~125°C(-40~257°F) 0 to 100%RH |
±0.3°C ±2%RH |
IP54 | External | 0.5 |
