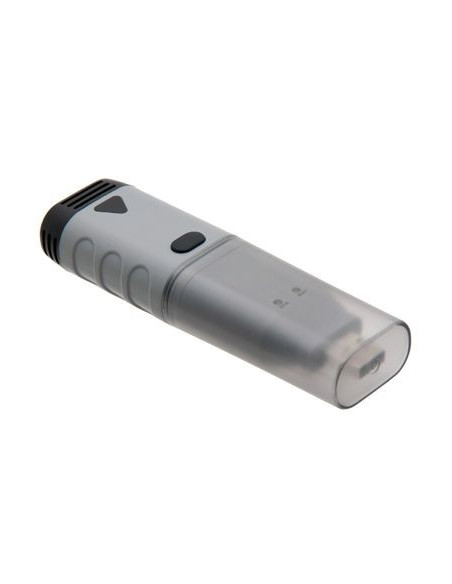

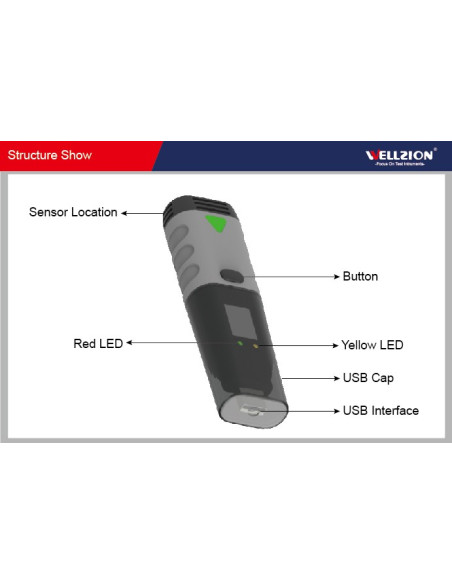

AO-SSN-10 USB Interface Temperature Data Logger (-35~80°C)
AO-SSN-10
New
●Portable, precise, compact and low cost
●USB interface directly communicate with PC for setup and data download
●Unique and uniform PC control software: DGraph
●User can set access password fo each data logger
●Start logging method: Immediately, Button, Start at
●Replaceable lithium battery and data is not lost if exhaustedThis data logger can measure and store temperature readings automatically.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| With Display | No |
| Battery Life | 3 years |
This data logger can measure and store temperature readings automatically.

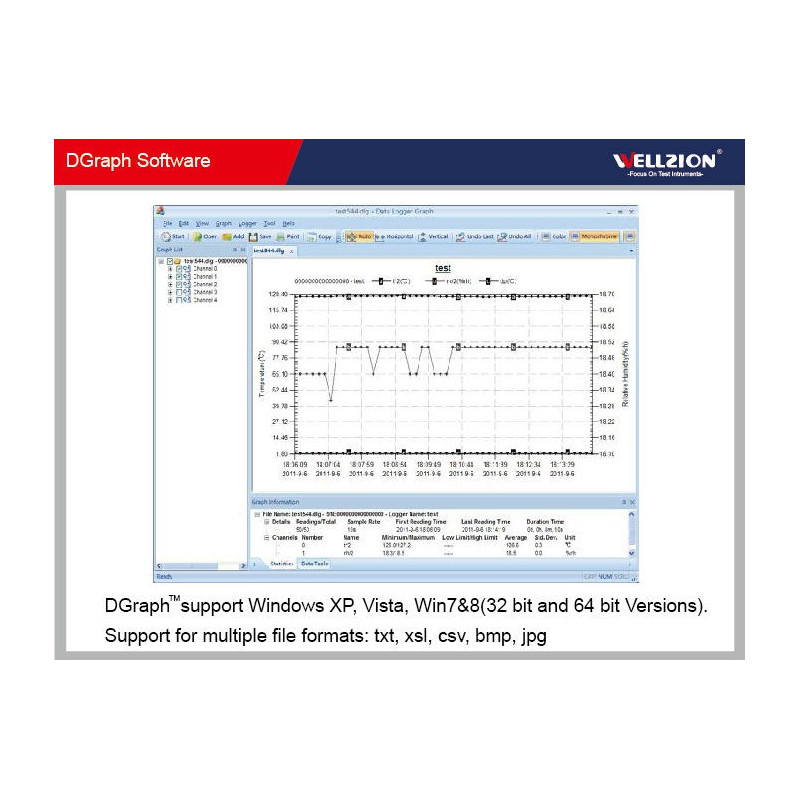

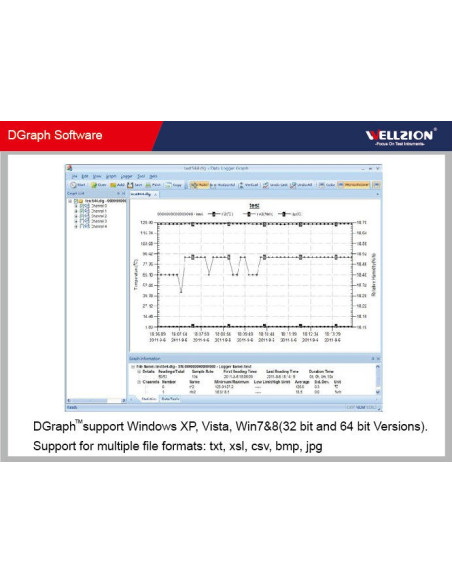

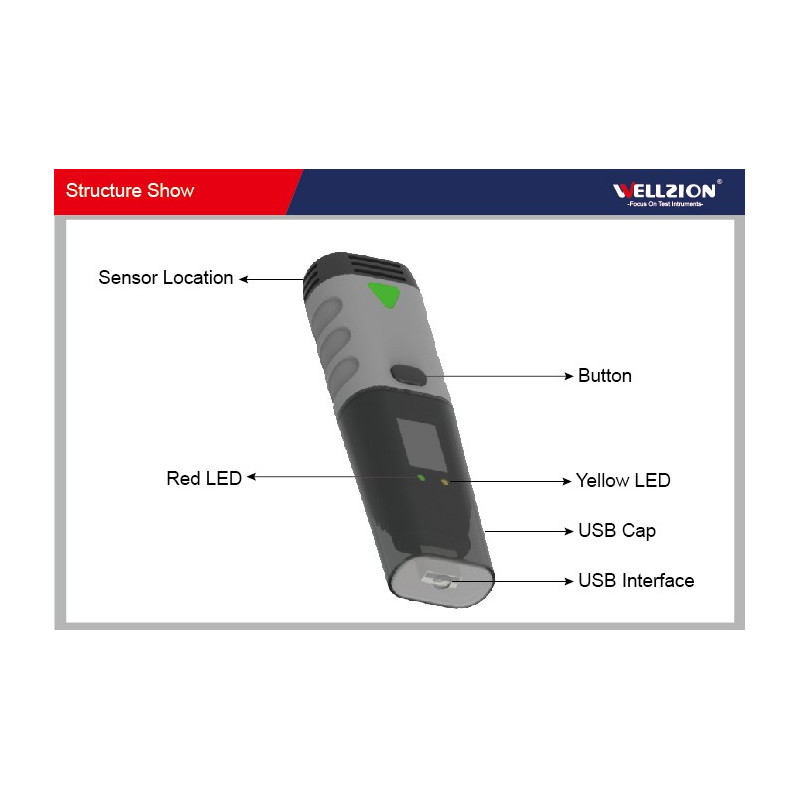

Especially, more professional appl ications can be provided by the unique PC software DGraph Under Windows xp / 7 / 8 / 10 (32 / 64 bits). User can easily use the software to setup and download data to PC via USB. And user can view, analyse and print the data, or export other fi le formats (txt, xls,csv, bmp, jpg). Logger status, alarm indication and low battery indication are via flashing red/green LED and yel low LED. The button on housing can be used to start logging or confirm and clear LED alarm.
|
Specifications |
|||
|
Temperature |
Model |
||
|
Measurement Range |
-35 to 80°C(-31 to 176℉) |
||
|
Accuracy(Typ.) |
±0.5°C(±0.9℉) |
||
|
Resolution(Typ.) |
0.1°C(0.2℉) |
||
|
Sensor Location |
Internal |
||
|
LCD |
Support |
Not Support |
|
|
Memory Capacity |
64KBytes(Total 32,000 readings) |
||
|
Sample Rate |
Selectable from once every 1 seconds to once every 12 hours |
||
|
PC Software |
DGraph software and USB driver required (Included in CD) |
||
|
Power Supply |

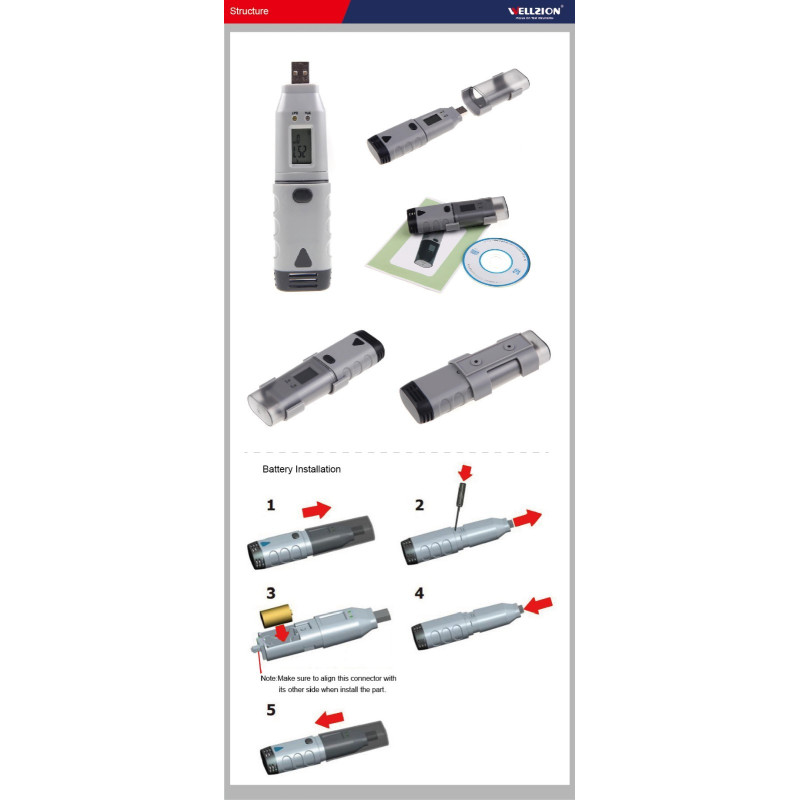

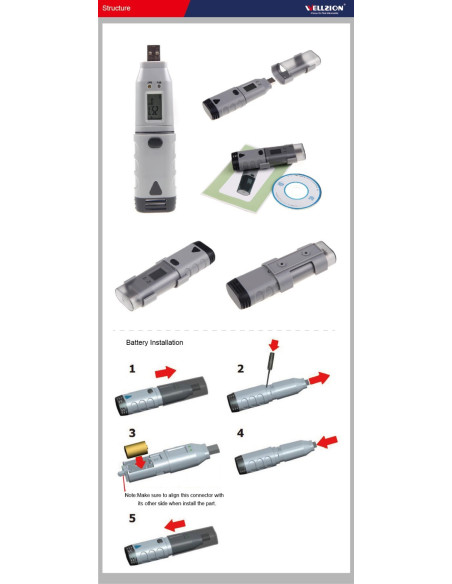

Replaceable 1/2AA 3.6V lithium battery, 1200mAh |
||
|
Battery Life |
Approx.3 Years @ 1 Minute Sample Rate |
||
|
Dimentions |
120mm×37mm×23mm(4.8"×1.5"×0.9") |
||
|
Case Material and Weight |
ABS;Approx. 67 grams(2.36 oz) |
||
|
Model |
Measurement Parameters |
Range |
Accuracy (Typ.) |
LCD Display |
Readings |
Sample Rate |
Sensor |
Battery Life (Years, Typ.) |
|
Temperature |
-35 to 80°C |
±0.5°C(±0.9°F) |
NO |
32000 |
1s to 24h |
Internal |
3 |
|
|
Temperature |
-35 to 80°C |
±0.5°C(±0.9°F) |
YES |
32000 |
1s to 24h |
Internal |
3 |
|
|
SSN-10E |
Temperature |
-40 to 125°C |
±0.5°C(±0.9°F) |
NO |
32000 |
1s to 24h |
External |
3 |
|
SSN-11E |
Temperature |
-40 to 125°C |
±0.5°C(±0.9°F) |
YES |
32000 |
1s to 24h |
External |
3 |
|
SSN-12 |
Temperature |
-35 to 80°C |
±0.3°C(±0.5°F) |
NO |
32000 |
1s to 24h |
Internal |
3 |
|
SSN-13 |
Temperature |
-35 to 80°C |
±0.3°C(±0.5°F) |
YES |
32000 |
1s to 24h |
Internal |
3 |
|
SSN-12E |
Temperature |
-40 to 125°C |
±0.3°C(±0.5°F) |
NO |
32000 |
1s to 24h |
External |
3 |
|
SSN-13E |
Temperature |
-40 to 125°C |
±0.3°C(±0.5°F) |
YES |
32000 |
1s to 24h |
External |
3 |
