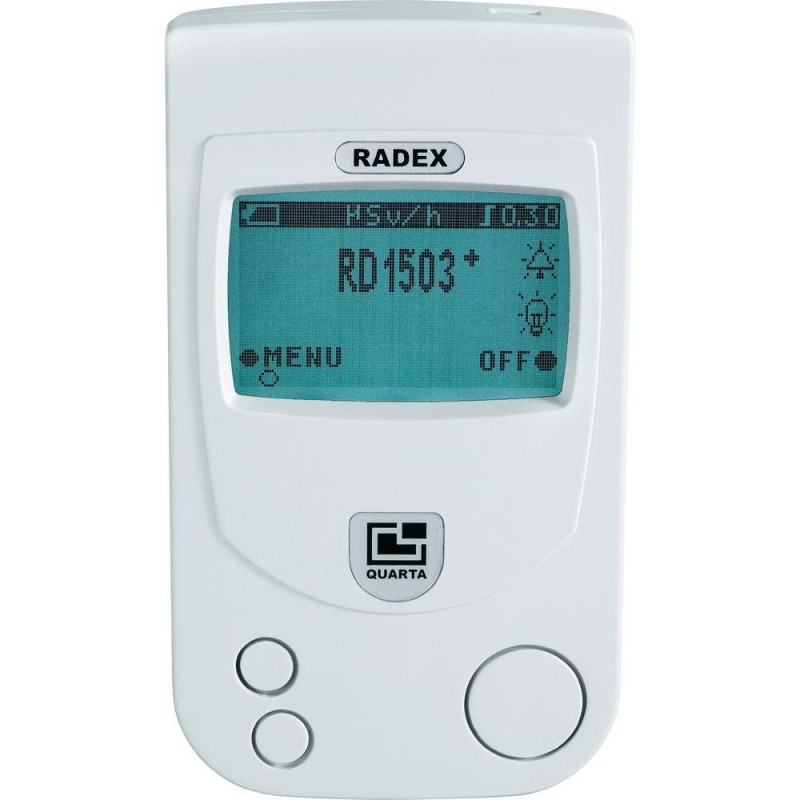

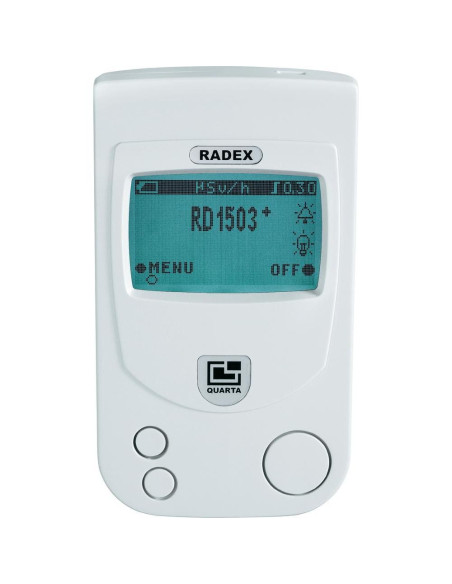

RADEX RD1503+ Geiger Counter Radiation Monitor/Detector (0.05 ~ 999 µSv/h)

Reference RADEX RD1503+

Manufacturer: Quarta-Rad

Condition: New

Geiger counter
Detection of gamma, beta and X-ray radiation

graduated change of a threshold signal in the range from 0.10 to 0.90 µSv/h with an 0.10 µSv/h interval (available in individual settings);
evaluation of the radiation background dose rate (outside buildings) conforms with the Russian government`s instructions specified in «MU2.6.1.715-98» (Conducting a radiation-hygienic inspection of inhabited and public buildings. Methodical Instructions);
value of the background dose rate is saved even when the device is turned off;
display of the difference of the dose rate between the averaged and background values;
vibration signal is added as well as the audio alarm;
adjustment a of a vibration signal (on /off) is possible;
animation of the pressed command button (the icon of the button starts blinking on the display)

Scale range ambient dose rate equivalent	µSv/h	0.05 ... 9.99
Scale range exposition dose rate	µRem/h	5 ... 9.99
Range energy scales – radiations	MeV	0.1 ... 1.25
Reproducibility of indications (at confidential probability 0.95), where Ð is a dose rate in µSv/h	%	15+6/Ð
Levels of sound-alarm threshold	µSv/h	0.10, 0.20, 0.30, 0.40, 0.50, 0.60, 0.70, 0.80, 0.90
Levels of sound-alarm threshold	µRem/h	10, 20, 30, 40, 50, 60, 70, 80, 90
Time of calculation	sec	40±0.5*
Time of indication	-	continuous
Batteries of "AAA" type	pc	2
Time of continuous work of a device, not less	hour	550 **
Overall dimensions	mm	105x60x26
Weight (without batteries)	g	90
Range of registered X-rays energy	MeV	0.03 to 3.0***
Range of registered beta rays energy	MeV	0.25 to 3.5***
* Increased number of calculation cycles leads to higher reliability of indications. Two batteries with a capacity 1350MAh, at a level of a natural background no more than 0.3 µSv/h and with factory settings. * Characteristics are obtained due to research carried out by the Center of Ionized Radiation of the State Scientific Metrological Laboratory "VNIIFTRY " in the period from 1 to 8 December 2005 and confirmed by protocols of 14.12.2005.
