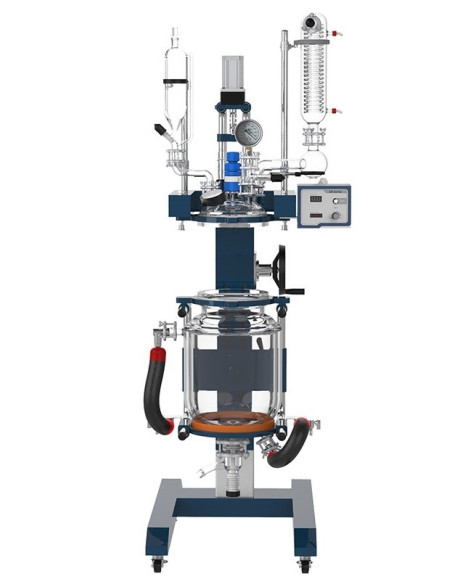

MRC Lab Reac-N10LE-V2 Double-wall Lifting Glass Reactor - 10 liter
The Double Wall Lifting Glass Reactor 10 Liter is a high-quality laboratory apparatus designed for precise and efficient chemical reactions, featuring temperature control and easy access via a lifting mechanism.
The Double Wall Lifting Glass Reactor 10 Liter is a high-quality laboratory apparatus designed for various chemical reactions and processes. This reactor is equipped with a double-walled glass vessel, which allows for precise temperature control and efficient mixing of the reactants. The lifting mechanism provides ease of operation, enabling convenient access to the contents of the reactor for sampling, adding reagents, or cleaning.
Key Features
- Double-Walled Design: The reactor features a double-walled glass vessel, providing excellent thermal insulation and allowing for precise temperature control of the reaction environment.
- Lifting Mechanism: The integrated lifting mechanism facilitates easy access to the reactor's contents, enhancing convenience and safety during operation.
- Capacity: With a 10-liter capacity, this reactor is suitable for a wide range of chemical reactions and processes, making it a versatile tool for laboratories.
- Material: Made from high-quality borosilicate glass, the reactor offers excellent chemical resistance and durability.

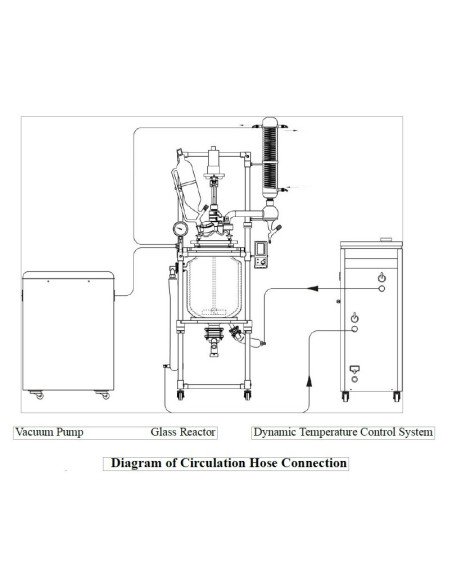

- Temperature Control: The double-walled design allows for the circulation of heating or cooling fluids, ensuring precise temperature control throughout the reaction process.
- Easy to Clean: The lifting mechanism and the design of the reactor make it easy to clean and maintain, ensuring reliable and repeatable performance.
Applications
The Double Wall Lifting Glass Reactor is ideal for a variety of laboratory applications, including:
- Pharmaceutical research and development
- Chemical synthesis and analysis
- Biotechnology processes
- Material science experiments
- Food and beverage industry research
Benefits
- Enhanced safety and ease of use with the lifting mechanism
- Improved reaction control and efficiency due to precise temperature management
- Versatile application across multiple scientific fields
- Durable construction ensures long-lasting performance
- Convenient maintenance and cleaning
Is an essential tool for any laboratory aiming to achieve precise and controlled chemical reactions, offering reliability, safety, and efficiency in its operation.
| Specification | Detail |
|---|---|
| Vessel Volume | 10 L |
| Jacket Volume | 3 L |
| Glass Material | High borosilicate glass 3.3 |
| Working Temperature Range | -80~200℃ |
| Bearable Temperature Difference | 80℃ |
| Operating Pressure | Ordinary or negative pressure; its vacuum degree can reach to -0.095MPa |
| Stirring Motor | 50~500rpm, 90 W |
| Anti-corrosion Discharge Valve | Yes |
| Stirring Blade | PTFE |
| Stirring Shaft | Stainless steel coated with PTFE |
| Dimensions | 850W×1100D×2050H mm |
| Lifting and Angling | Glass vessel can be lifted and angled 120 degrees both sides |
- Instrument for:
- Hospitals, Lab's, Clinics
- Function:
- Glass reactor
